Feature:

1. Included Accessories: 20 inch lithium refit front drive kit contains 48V 1500W front drive motor wheel, 35A controller, LC‑S866 meter, 130X shifter, D12 assist sensor, a pair of power off brake handle, controller bag and manual.
2. Aluminum Alloy Wheel Ring: Brushless wheel hub DC motor adopts aluminum alloy wheel ring and is processed by fine technology, which effectively enhances the edge of the wheel ring. It is light, high end and generous, has strong bearing capacity, and is far more comfortable than other types of motor, so as to realize noiseless and let you fully enjoy the fun of riding.
3. Manufacturing Material: The controller housing is made of high quality metal with grooves designed to the internal circuitry from thermal overload due to good heat dissipation. LCD meter adopts high quality ABS material, light, rain proof, sturdy and .
4. Multifunction LCD‑S866 Meter: LCD‑S866 display meter has a variety of functions, LCD backlight display, can clearly display the status and data; When riding a bike, the product will display many useful data on your bike, such as power display, speed display, power indicator, fault indication, total mileage, single mileage, current speed, average speed, imum speed, gear display, etc.
5. Wide Applicability: 48V 1000W front drive 20 inch motor wheel kit fits for mountain bike lithium refit front drive electric bike, DIY electric bike, electric bike, electric scooter, folding bikes, etc. Easy to maintain, electric bikes, mountain bikes conversion motor, high efficiency, greatly improve the fun of riding, suitable for cyclists like challenges.

Specification:

Item Type: 20 Inch Electric  Conversion Kit
Weight: Approx.9450g / 333.3oz
Material: Stainless Steel + Aluminum Alloy + ABS Plastic
Product Size:

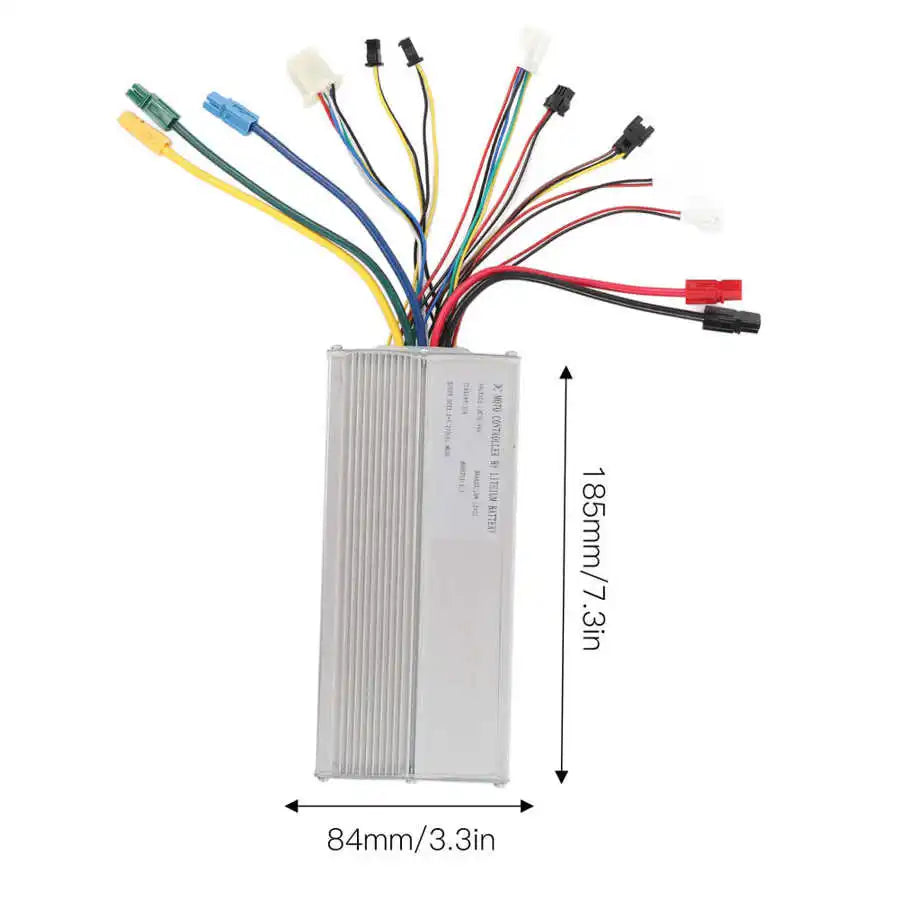

Controller Box Size: Approx.185 x 84 x 43mm / 7.3 x 3.3 x 1.7in

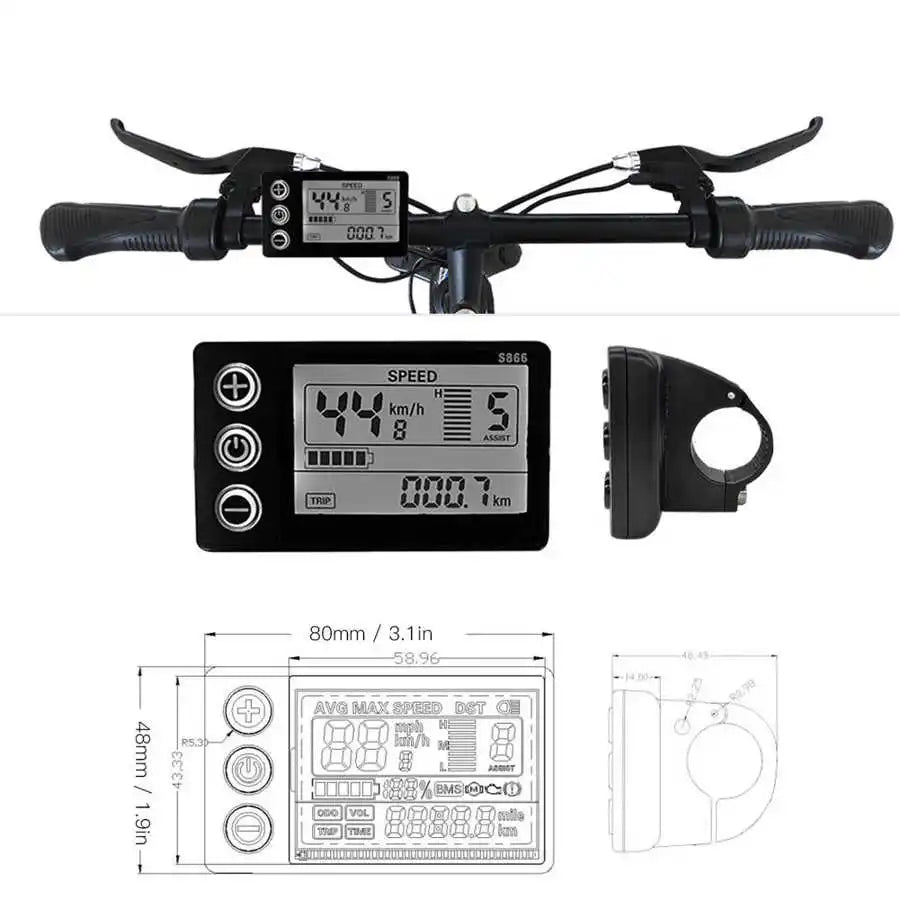

Meter: Approx.80 x 48mm / 3.1 x 1.9in

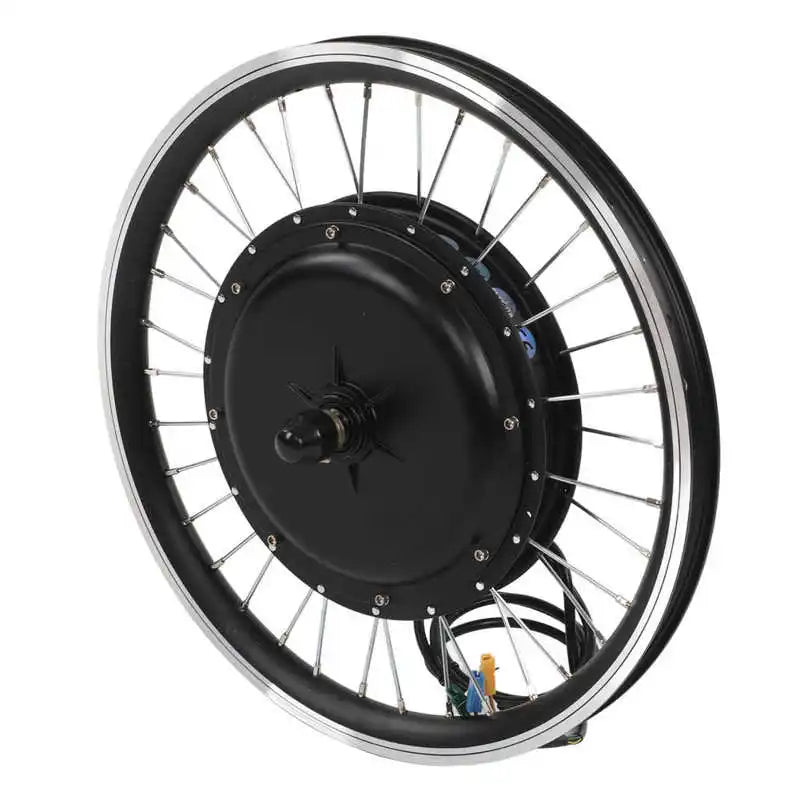

Motor Wheel Type: Front Drive Motor Wheel
Motor Rated Voltage: 48V
Motor Rated Power: 1500W
Motor Speed: About 45-55km/h
Motor Speed: 414-487 RPM
Motor Torsion (N.M): 71-74.6 N.M
Motor Shift Size (mm): Approx.100mm / 3.9in
Motor Matching Controller Current: 35A
Motor Ring: P25D
Motor Torsion Arm: M 14
Applicable Motor Brake Disc: Approx.160mm / 6.3in
Motor Brake Type: Universal V Brake, Disc Brake
Motor Wheel Position: Front Wheel
Motor Structure: DC Motor
Motor Magnet Height: 35H
Number Of Magnetic Steel Poles Of Motor: 46
Motor Operating Temperature: -20℃ - 45℃
Controller Rated Voltage: 36V DC 48V DC
imum Controller Current: 35A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
: 1:5
Connector Types: Ordinary SM Connector

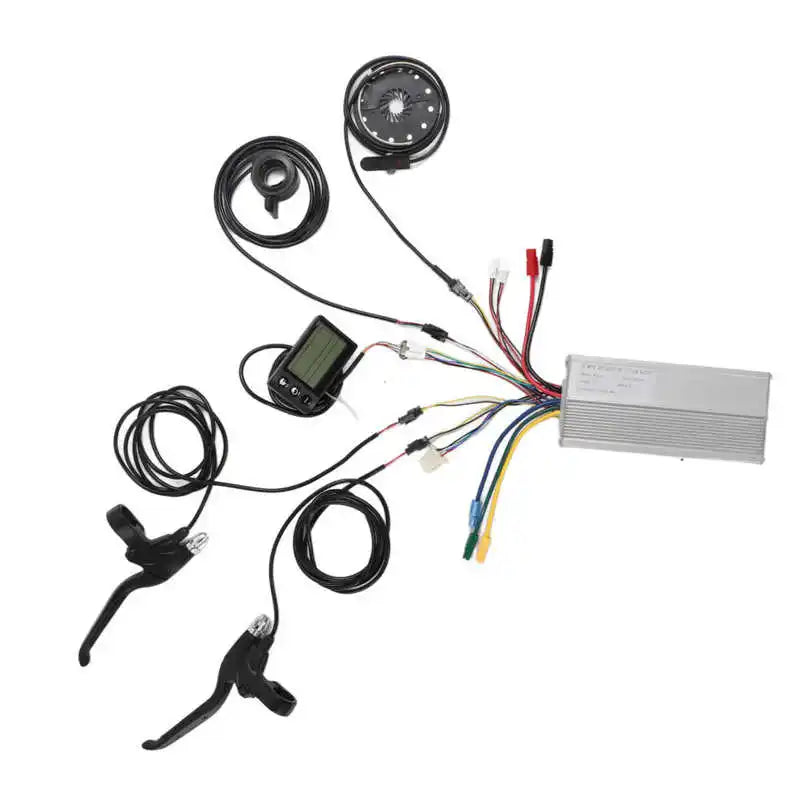

Controller Line Color Definition:
1. Yellow, Green And Blue Single Big Head Wire: Motor Phase Line
2. Red, White, Black, Blue, Green And Yellow Double Row Six Wire Port: Motor Hall Line
3. Red And Black Single Big Head: Power Cord
4. Red, Blue, Black, Green And Yellow Single Row Five Wire Port: Meter Wire (5PIN)
5. Black And Yellow Line (2pcs) : Power Off Brake Handle Line

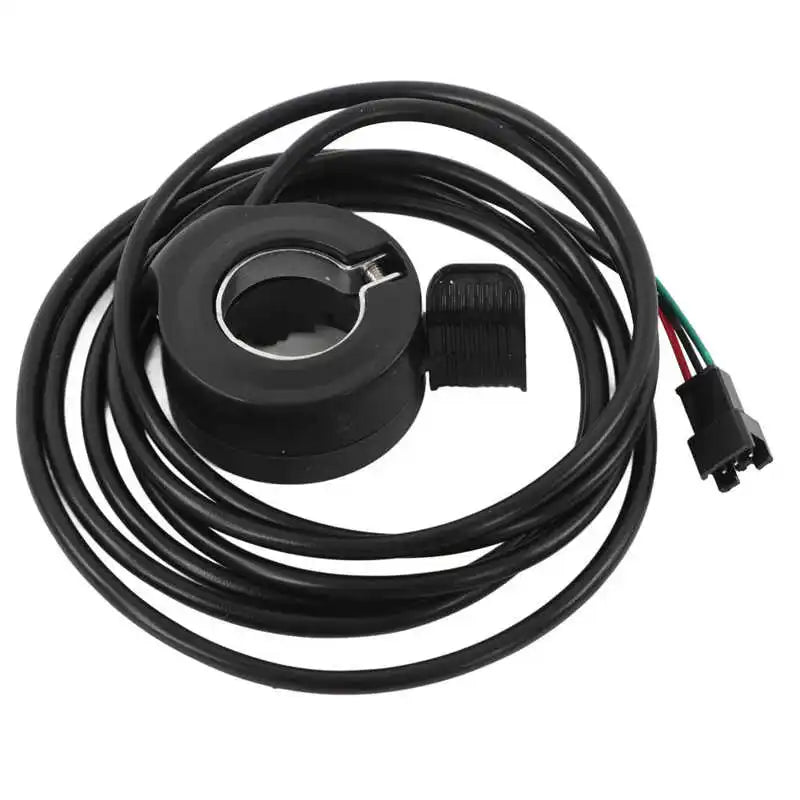

6. Red, Black And White Line: Throttle Shifter Line (3PIN)
7. Brown, Black And Yellow Line: Assist Sensor Line (3PIN)
8. Black And Red Wire (2pcs): Headlight Wire

LCD-S866 Meter Working Voltage: DC 24V, 36V, 48V, 60V Compatible (Meter Selection Settings)
LCD S866 Meter Function Description:
1. Display Function: Speed Display, Power Indicator, Fault Indicator, Total Mileage, Single Mileage
2. Control Setting Functions: Power Switch Control, Wheel Diameter Setting, Idle Auto Sleep Time Setting, Backlight Brightness Setting, Start Mode Setting, Drive Mode Setting, Voltage Level Setting, Controller Limit Value Setting
3. Communication Protocol: UART
Display All Contents Of The Screen (Display All Contents For 1s After Startup)
3.1 Display Of Battery Quantity And BMS Remaining Quantity
3.2 Multi Function Display Area: Total Mileage ODO, Single Mileage TRIP (Unit: Mile, Km), Single Startup Time, Battery Voltage VOL, DST Battery Life
3.3 Speed Display Area
AVG: Average Speed, : imum Speed, SPEED: Current Speed, Unit: Mp/H Km/H
The Speed Signal Is Taken From The Hall Signal In The Motor And Sent To The Instrument By The Controller. (Time Of A Single Hall Cycle, Unit: 1MS) The Instrument Will Calculate The True Speed Based On The Wheel Diameter And Signal Data (The Amount Of Magnetic Steel Required By The Motor Hall)
3.4 Vehicle Power Gear Adjustment, 0-9 Digital Display And Bar Display.

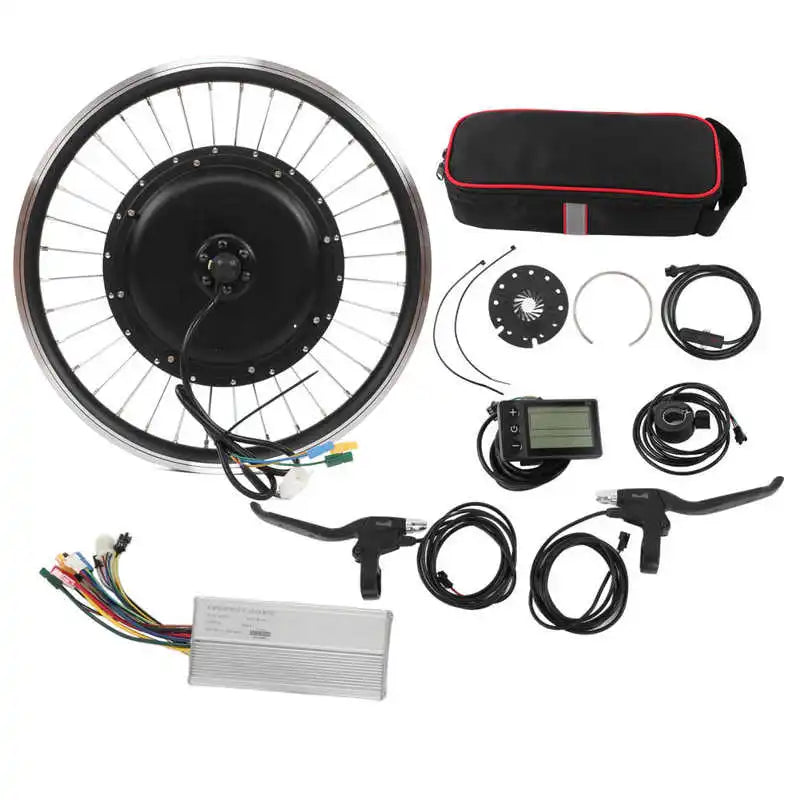

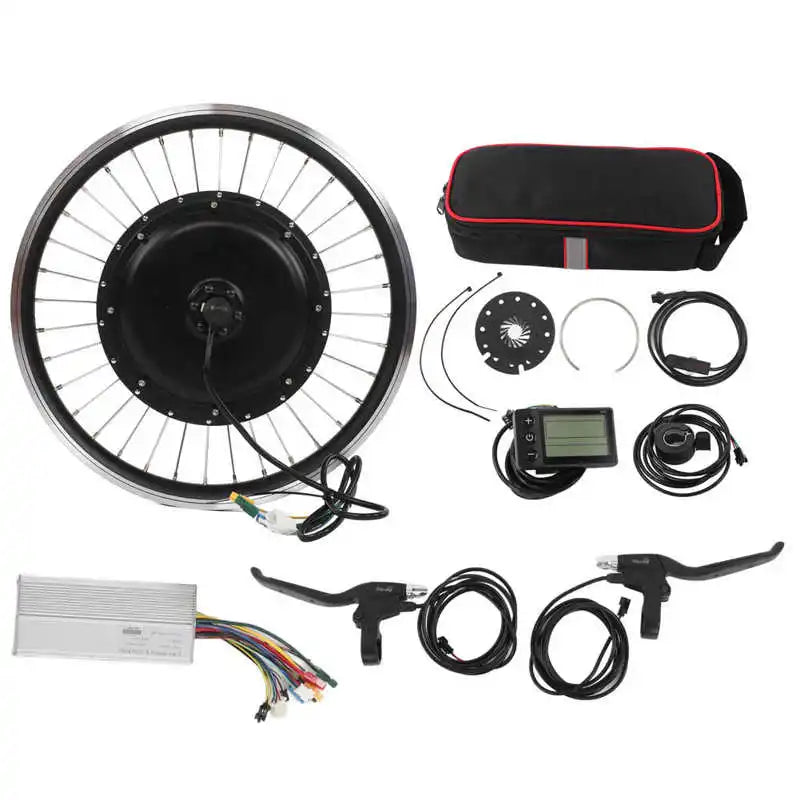

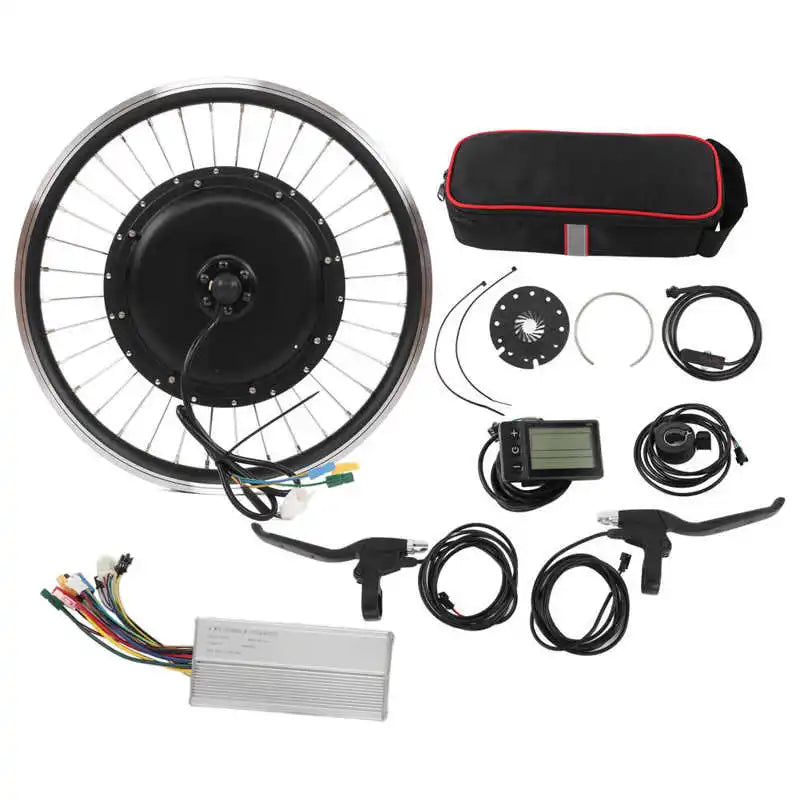

Package List:

1 x Motor Wheel

1 x Controller

1 x Meter

1 x Meter Manual

2 x Power Off Brake Handle

1 x Throttle Shifter

1 x D12 Assist Sensor Wiring

1 x D12 Assist Sensor Power Chip

1 x D12 Power Sensor Ring

2 x Tie

1 x Controller Bag

1 x Manual
