SPECIFICATIONS

Brand Name: Jueshuai

Category: Rear Rotate

Design: Brushless

Feature 1: electric bike

Feature 2: bicicleta eléctrica

Feature 3: ebike

Feature 4: kit bicicleta eléctrica

Feature 5: JUESHUAI bafang electric bicycle conversion kit

Feature 6: vélos électriques

Feature 7: motor electrico para bici...

Feature 8: e bike conversion kit

Hign-concerned Chemical: None

Installation Location: Front/Rear Wheel

Motor: 36v/ 500w

Motor Type: Brushless Gear Hub Motor

Motor Type 2: Electric Bike Conversion Kit

Motor Type 3: Electric Bicycle Bike Conversion Kit

Motor Type 4: Ebike Conversion Kit

Mounting Position: Front Drive,Front/Rear Drive

Origin: Mainland China

Product Name: Electric Bicycle Motor

Size: 26inch

Use1: Modified electric bicycle kit

Voltage: 36V

Wattage: 501 - 1000w

e bike battery: 12ah water bottle 15ah hailong

ebike battery type: 18650 battery

ebike rear wheel: 6/7 speed freewheel

front fork: 100cm

motor type: brushless out of stock

motor type 2: jueshuai black

rear fork: 135cm

suitable for: V /Disc Brake

wheel size: 20'' 24'' 26'' 700c 27.5'' 29''

wire: waterproof

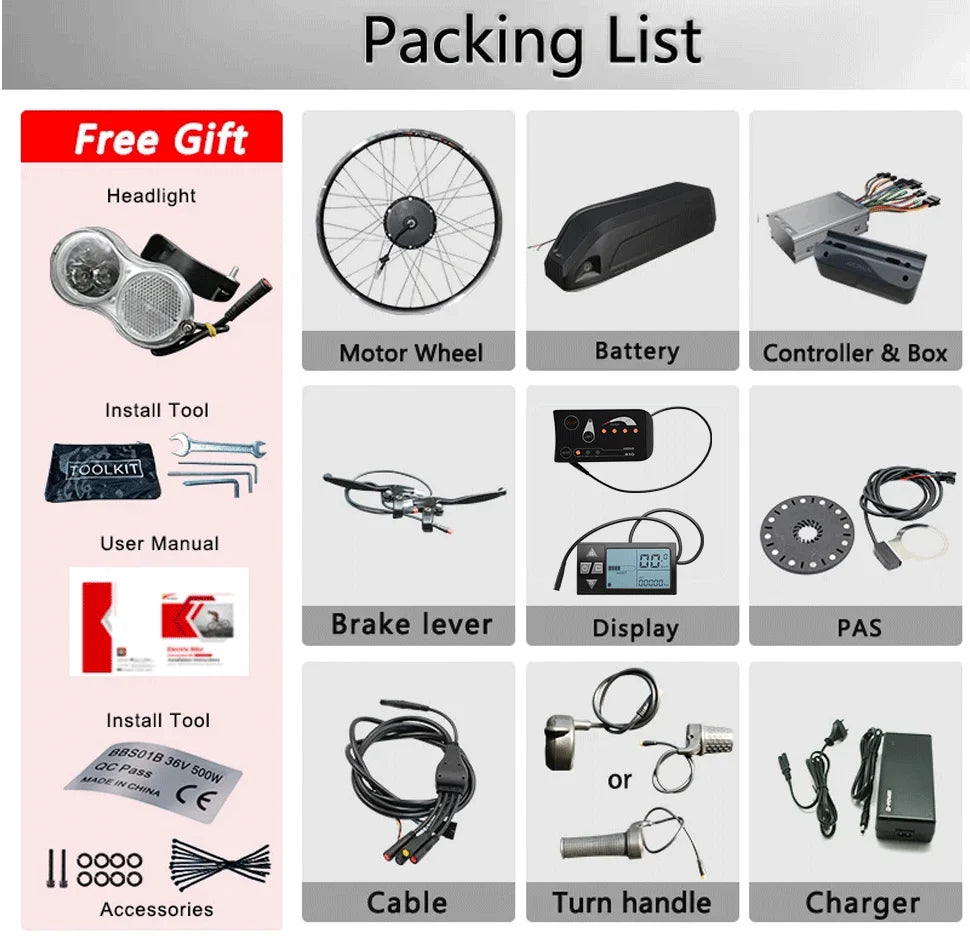

Package listing

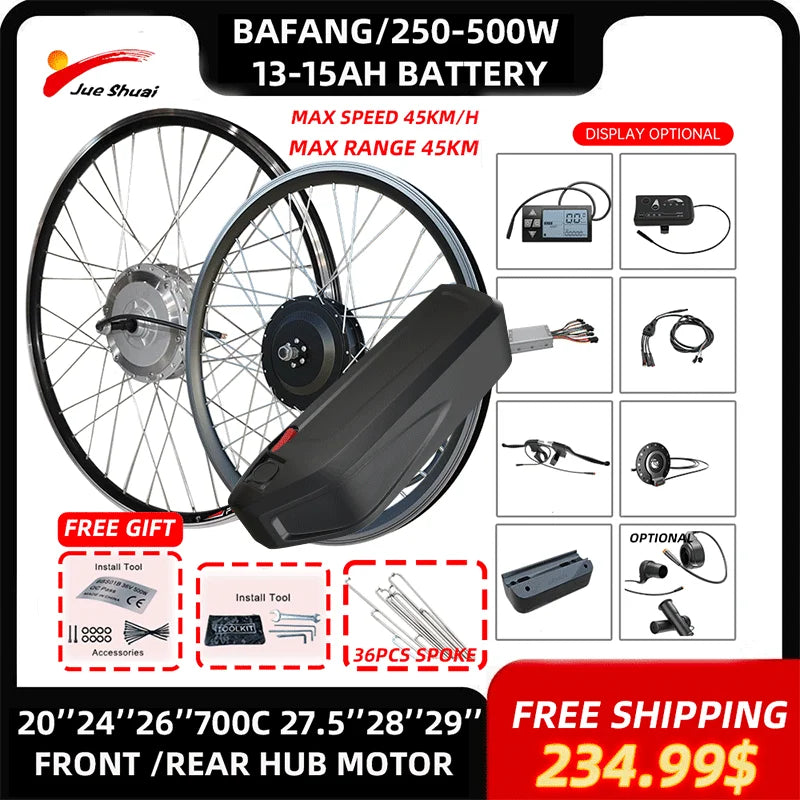

1x JUESHUAI 36V 250W /350W 500W Front /Rear hub motor / BAFANG 500W Front

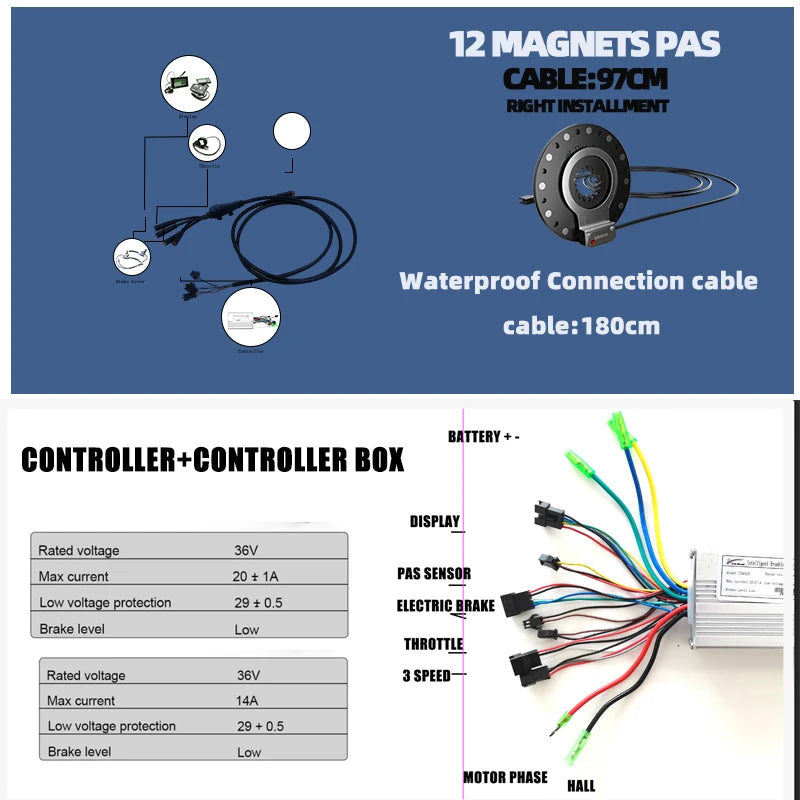

1x Electric Controller
1x Controller Box
2x Brake lever
1x Thumb/ Full Twist / Half Twist

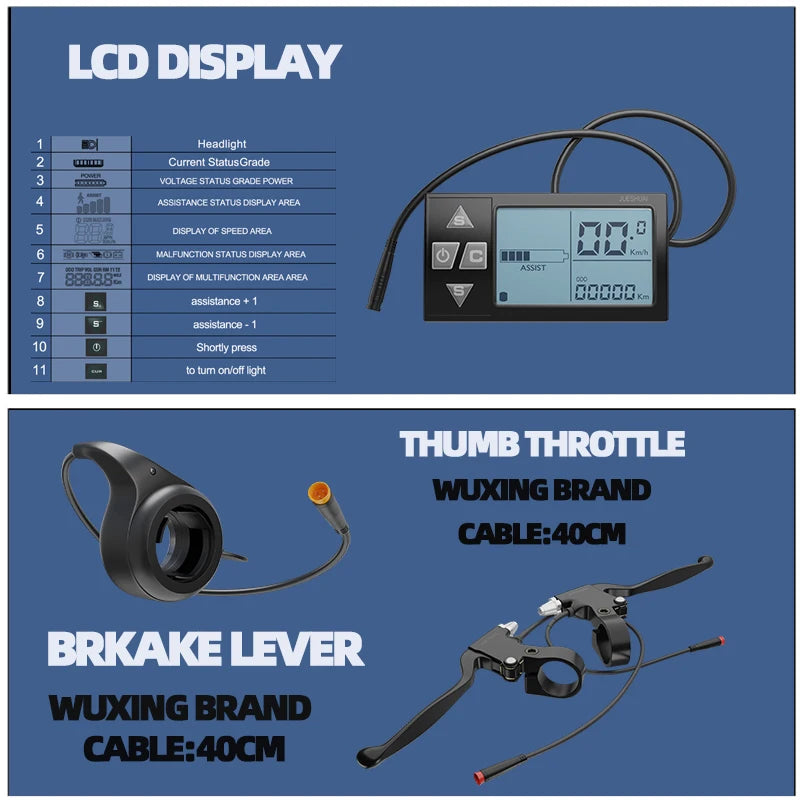

1x LCD/LED Display
1x Pedal Assist Sensor
1x Headlight
1x Waterproof Main Cable
1x Cable Tie
1x Manual

Optinal :

1. 1x Hailong battery 36V 15ah /36V 12/15ah  SAM Bottle Battery

2. (without BATTERy )

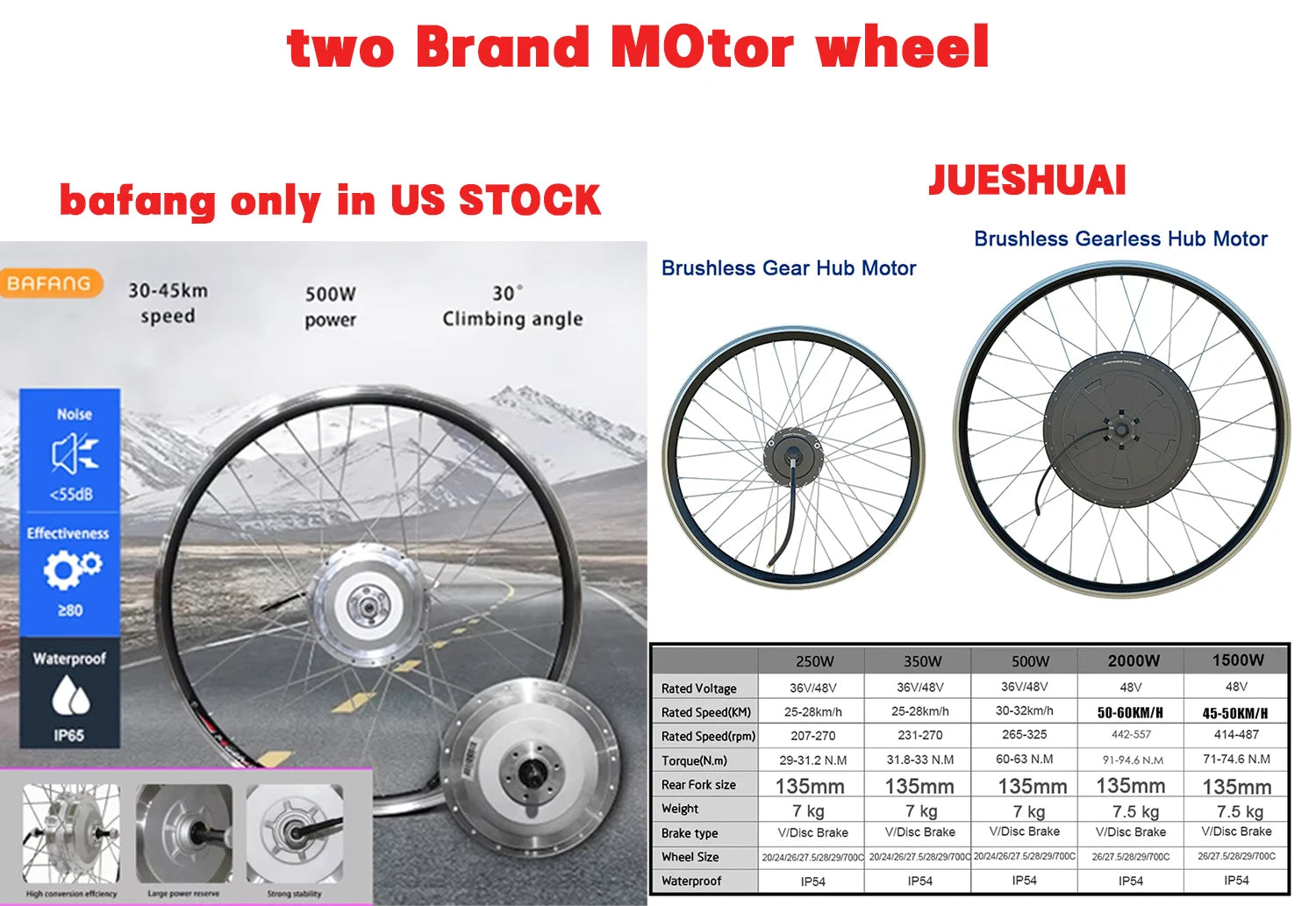

About Motor

Specification of 250/350W Motor

Rated Voltage：36V Rated Power：250/350W Rated Speed：about 45-50km/h RPM：320 RPM
Torque(N.M)：32-35 N.M Number of motor poles :10
Brake Type：Disc Brake Position: Front/Rear
Construction: Gearless Operating Temperature(℃): -20-45
IP Grade: IP65 Wheel Size (inch) : 20''24''26''27.5''28''29''700C
Tyre: Brushless Gearless hub motor Spokes Specification: 12G
Rated Efficiency(%): >=80 Fork(mm): 135mm rear rotate Front 100mm
Noise(db): <55db

Specification of 500W Motor

Rated Voltage：36V Rated Power：500 W Rated Speed：about 45-50km/h
RPM：350 RPM Torque(N.M)：35 N.M Number of motor poles :10
Brake Type：Disc Brake Position: Front/Rear
Construction: Gearless Operating Temperature(℃): -20-45
IP Grade: IP65 Wheel Size (inch) : 20''24''26''27.5''28''29''700C
Tyre: Brushless Gearless hub motor Spokes Specification: 12G
Rated Efficiency(%): >=80 Fork(mm): 135mm rear rotate Front 100mm  Noise(db): <55db

Specification of BAFANG 500W Motor  :BPM 36V500W26(10)2108276506

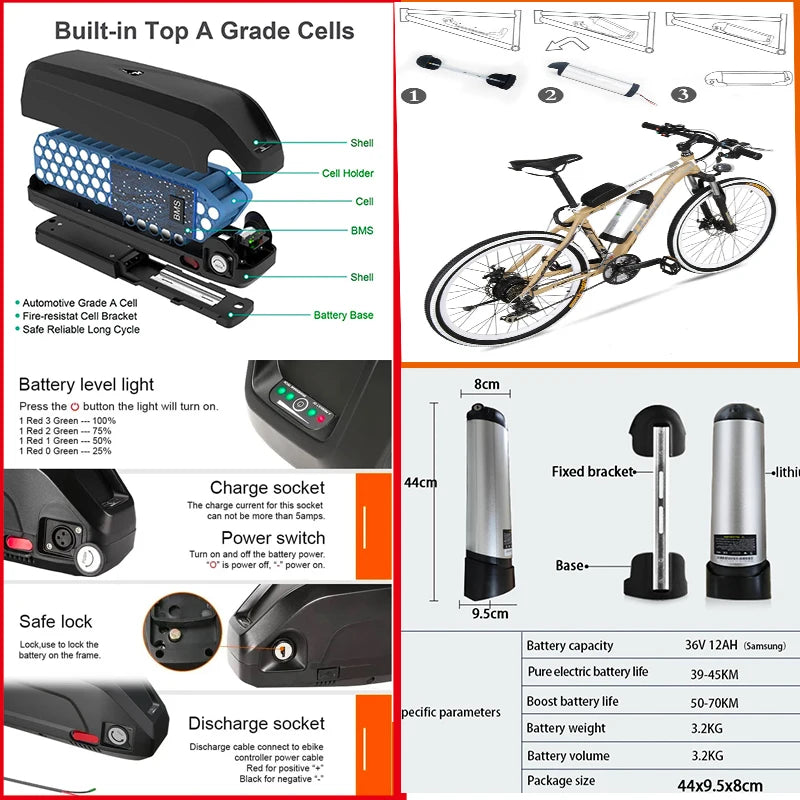

ABOUT BATTERY :

36V 12/15AH S A M S U N G specificationNominal Voltage: 36V
Rated Capacity: 12/15Ah
Max Constant Discharge Current: 20A( BMS)
Apply for: 200-500W Motor
Charger : 42V 2A Charger
Battery Cell: S A M S U N G 2900mAH Cell
Shell: PC+ABS
Max Constant Discharge Current:20A
Peak current:40A
Charge voltage:42V
Discharge cut off voltage:28V
Way of Charge:CC/CV
Cycle Life:1000 times
Charge Temperature:-15-65℃
Discharge Temperature:-15-65℃
Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance

HAILONG 2:
