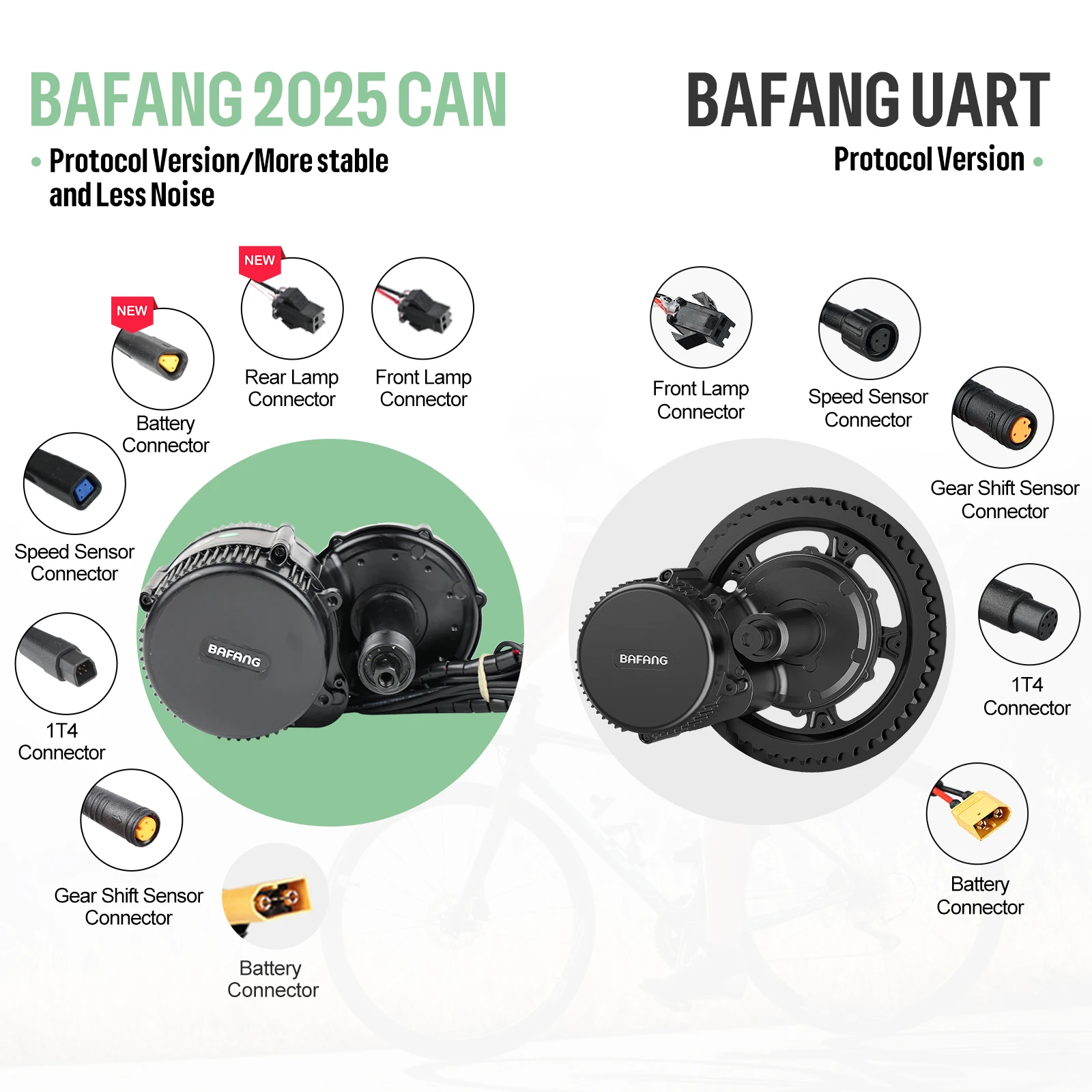

There are currently no Uart motors.

Ordered display will switch automatically







DZ40=VD03

SW2-M58=VD618

EKD01=EKD01

500C=DPC080

DPC18=DPC010

About this item

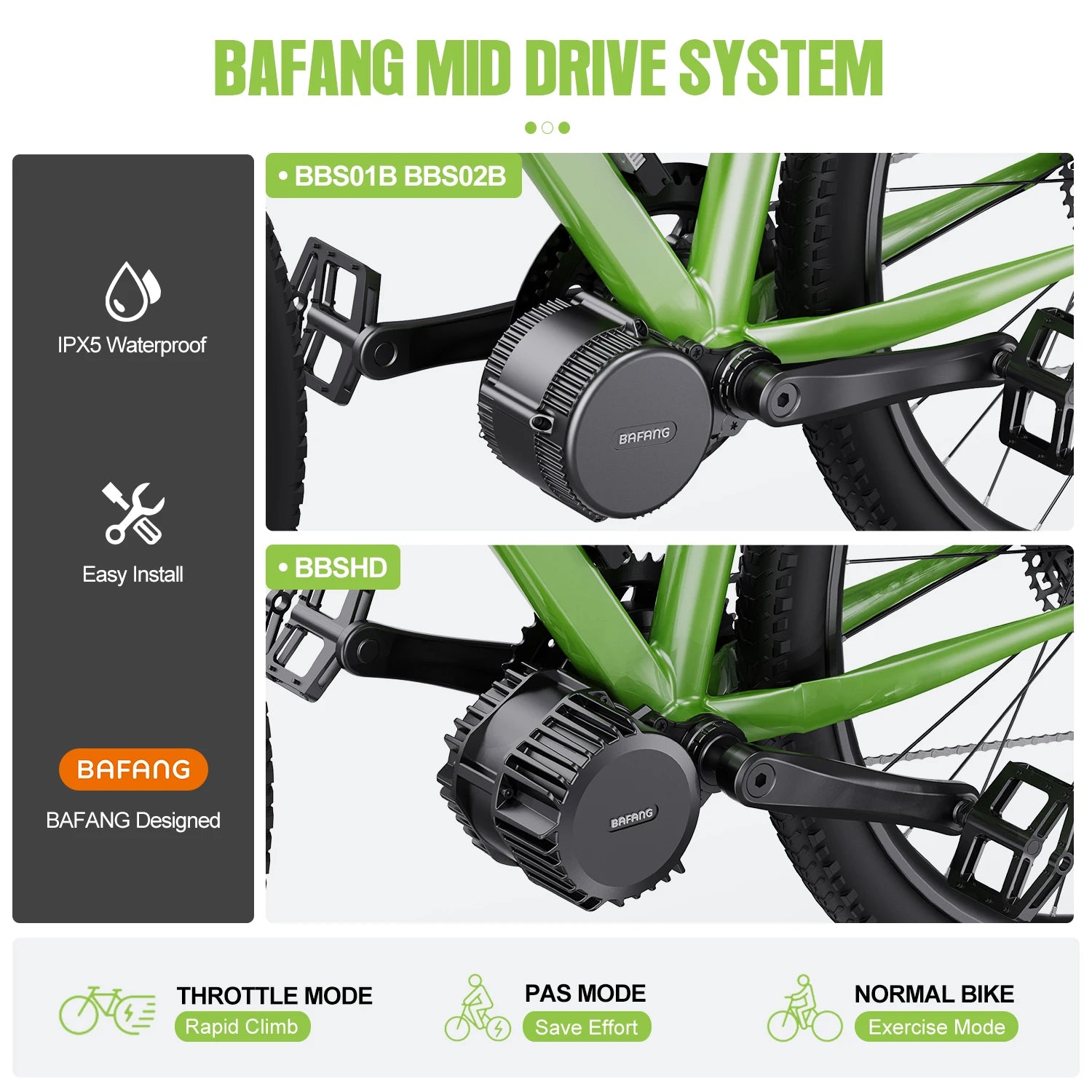

[MID MOTOR SYSTEM AND CYCLING MODE] With the maximum torque of 80/100/120/160 Nm, all BAFANG e-bike conversion kits have excellent performance on cycling. There are 3 cycle modes for the mid-drive motor: Throttle, Pedal Assist, Nomal Riding. Suitable for disc brakes and V-brakes, not coaster brake. Please make sure you understand local traffic laws and regulations before placing an order.



[EASY INSTALLATION] Not all kinds of bicycles can install this motor, please make sure the bottom bracket is 68/100/120mm, the inner diameter should be 34mm. Before purchasing, please download the size guide to measure the distance between the bottom bracket and the chain stay, and confirm whether the motor size is compatible with the bottom bracket. If the bottom bracket is 90-99MM or 110-119MM, email us for spacers

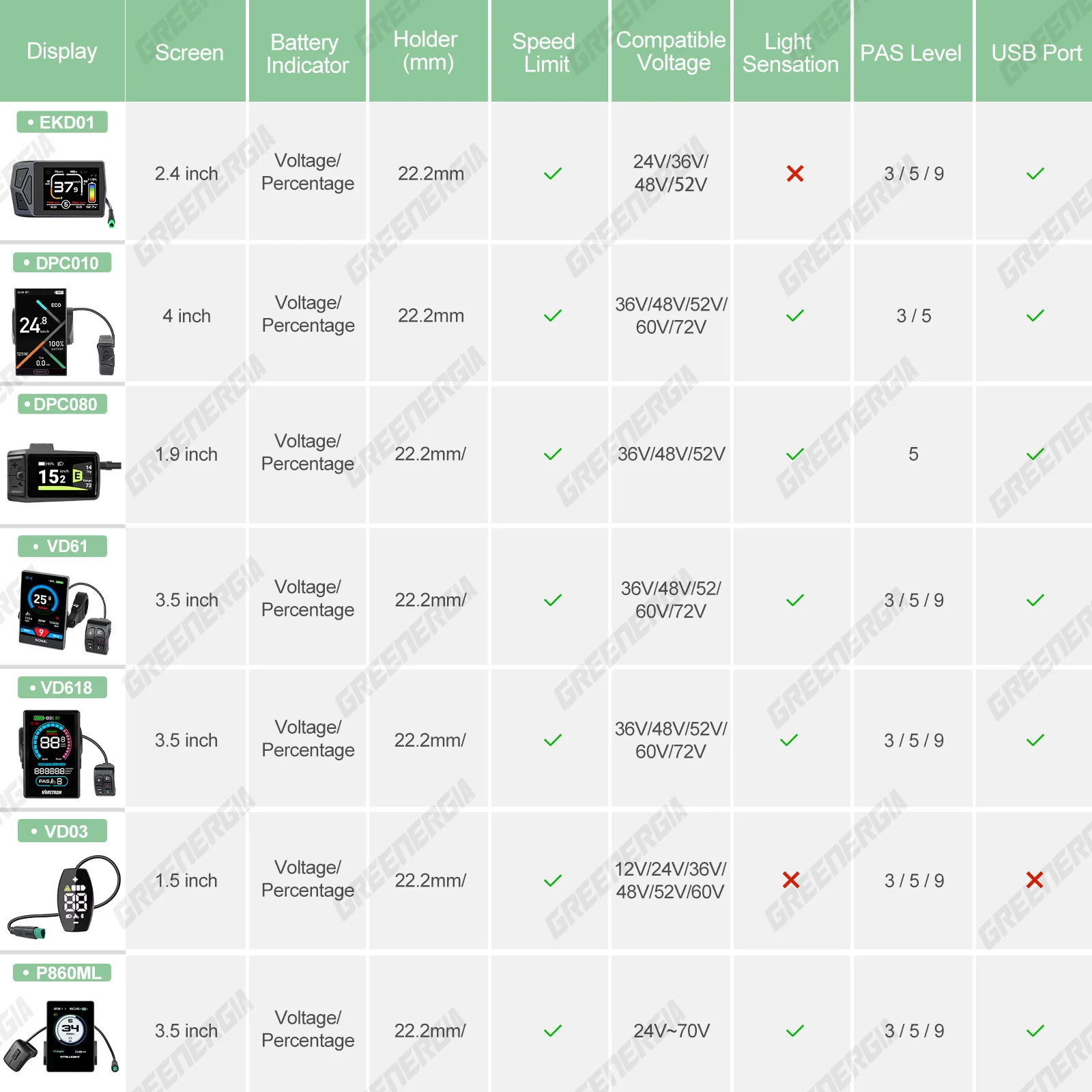

[Accssories For you to Choose ]  ① For the Brake System, there is Brake Lever or Brake Sensor for you to choose. ② For the Display, there is T1 Touch Screen, DPC18, P860ML, 850C New, 500C, 500C-H, 750C Bluetooth, 850C, C961, 800S or DM03 for your choice. ③ For the BBS /BBSHD Chainwheel, There Have 36T 44T 46T 48T 52T for you to choose .



[FAST SHIPPING AND RESPONSIBLE CUSTOMER SERVICE] EU address (except for island) will receive the package about 1- 7days. The motor has a one-year warranty and 24-hour customer service. We have professional technicians in France / Spain / Poland who can give you technical support and help you solve the problem.



Powerful, quiet and perfectly integrated - these are the attributes of the Bafang M-Series. Due to the compact design, the mid-motors of the M-Series can be installed inconspicuously on many types of eBike. A key characteristic is their extremely harmonious handling.

M615

Super strong and efficient, this mid-drive system with a rated power of 750 or 1000W and a max. torque of 160Nm is an ideal upgrade for vehicles such as eSpeed and eCargo bikes. Compatible with frames with 68-120 mm bottom bracket width.

M315

Light but strong and efficient, this mid-drive system with a rated power of 500W and a max. torque of 100Nm provides ideal support for vehicles such as eTricycles, eTour and eCity bikes. Compatible with frames with 68 mm bottom bracket width.

M215

Powerful, cost effective, maintenance-friendly and easy to install. With its 250W rated power and 80Nm of max. torque, it delivers a more than welcome support to your ride. Compatible with frames with 68 mm bottom bracket width.

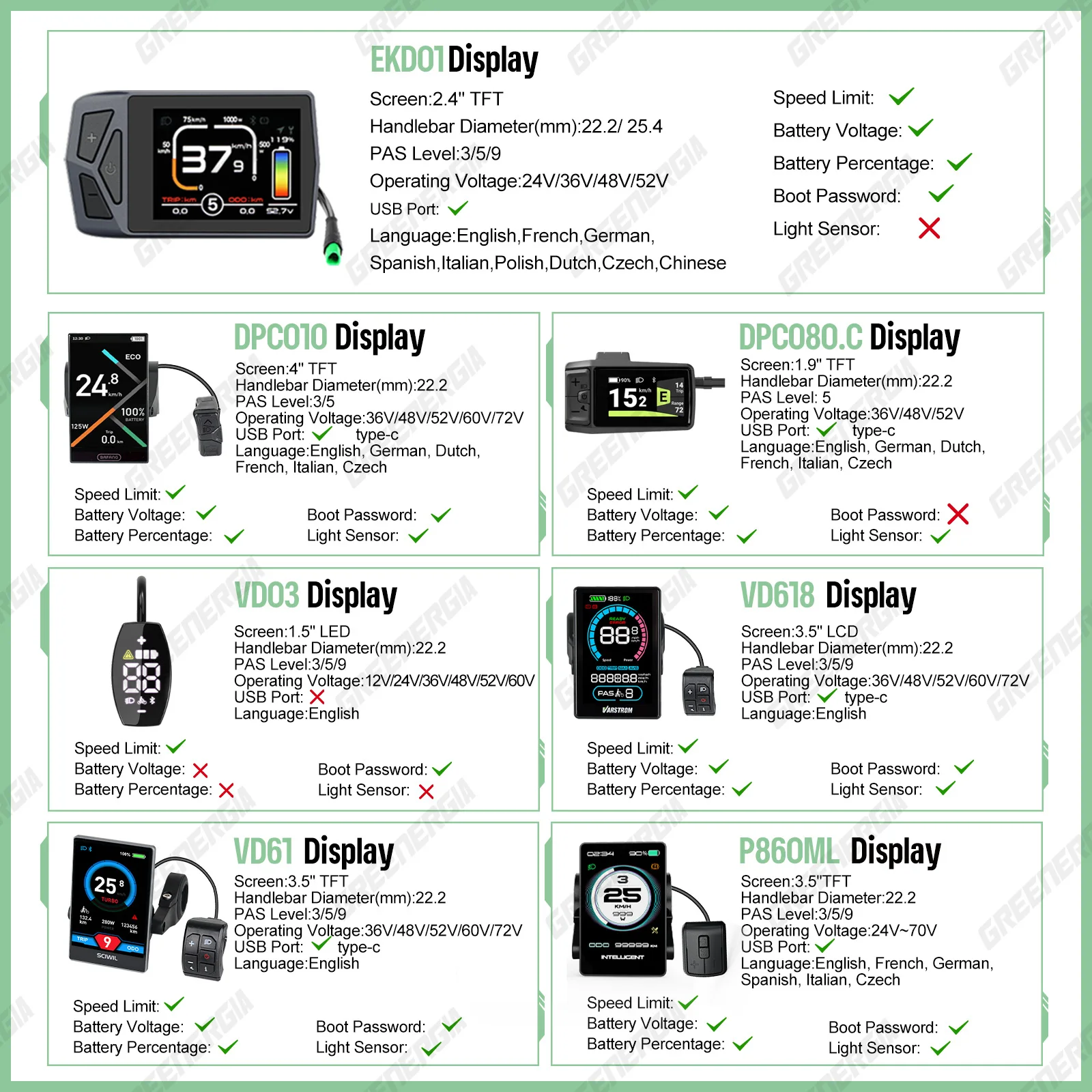

Advantages Of Our Display

Sleek and modern designs effectively communicate key riding data via a high-contrast LCD screen. These displays bring legibility whatever the time of day, with reliable functionality any place you need it. Using high-quality seals and materials, Our LCD displays are water and dirt resistant, so they're built to last.

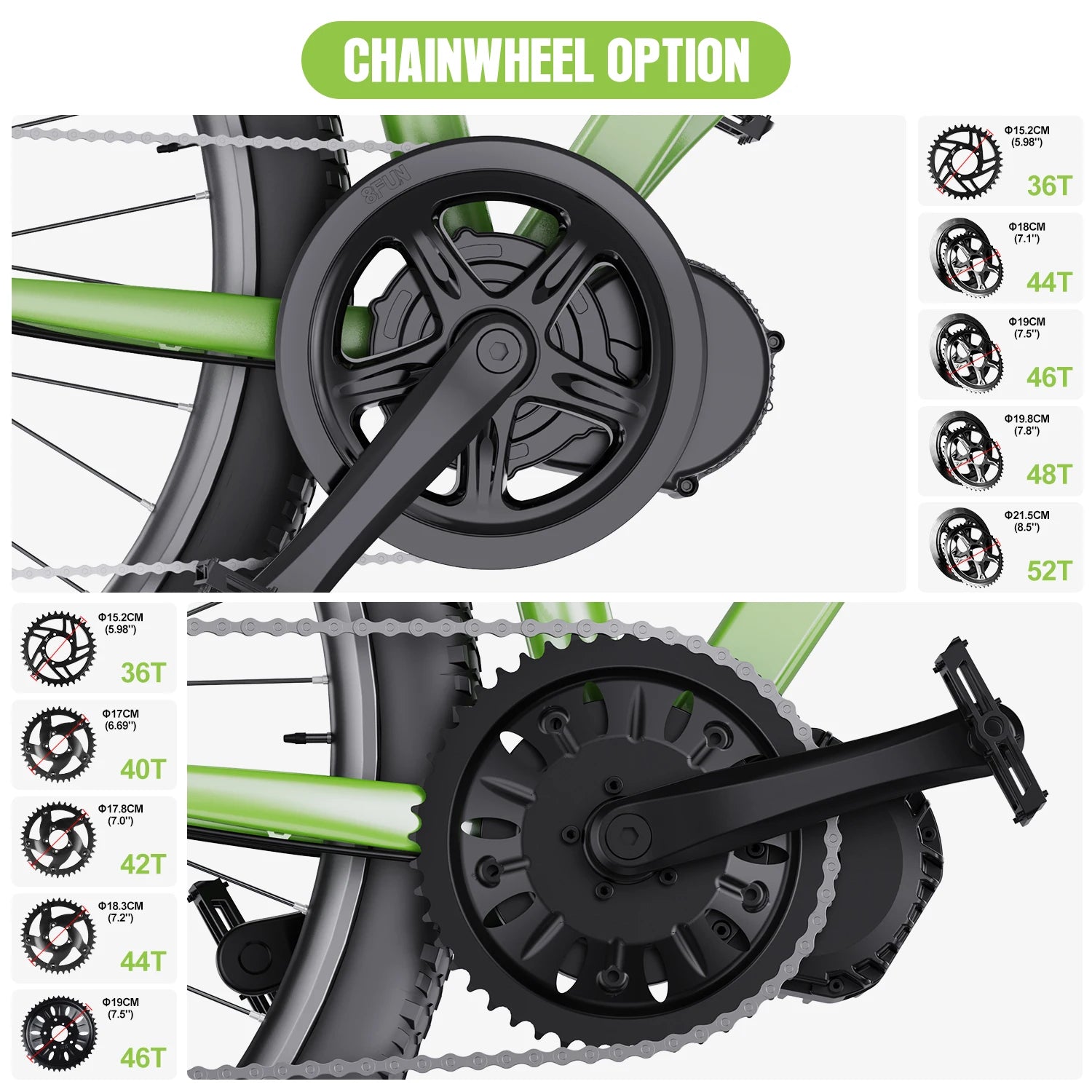

BAFANG Chainwheel

The Bafang chainwheel ring, like other components in Bafang's electric bike motor systems, offers several advantages, which can enhance the performance and functionality of an electric bike.

① Efficient Power Transfer: The Bafang chainwheel ring is an integral part of the mid-drive motor system, ensuring efficient power transfer from the motor to the drivetrain. This efficiency results in better performance and energy utilization.

②Wide Gear Range: The Bafang chainwheel ring allows riders to utilize the full range of gears on their bike. This flexibility in gear shifting is especially advantageous when tackling varying terrains or situations, such as climbing hills or riding on flat roads.

③Natural Riding Experience: The mid-drive system, including the chainwheel ring, delivers a more natural riding experience. Motor assistance is synchronized with the rider's pedaling effort, creating a seamless and integrated riding feel.

④Durability and Low Maintenance: Bafang is known for producing durable and reliable electric bike components. The chainwheel ring is designed for longevity and reduced maintenance requirements, offering riders a dependable and long-lasting performance.

⑤Compatibility: Bafang chainwheel rings are designed to be compatible with various Bafang motor models and electric bike setups. This makes it easier for users to find a suitable chainwheel ring for their specific system.

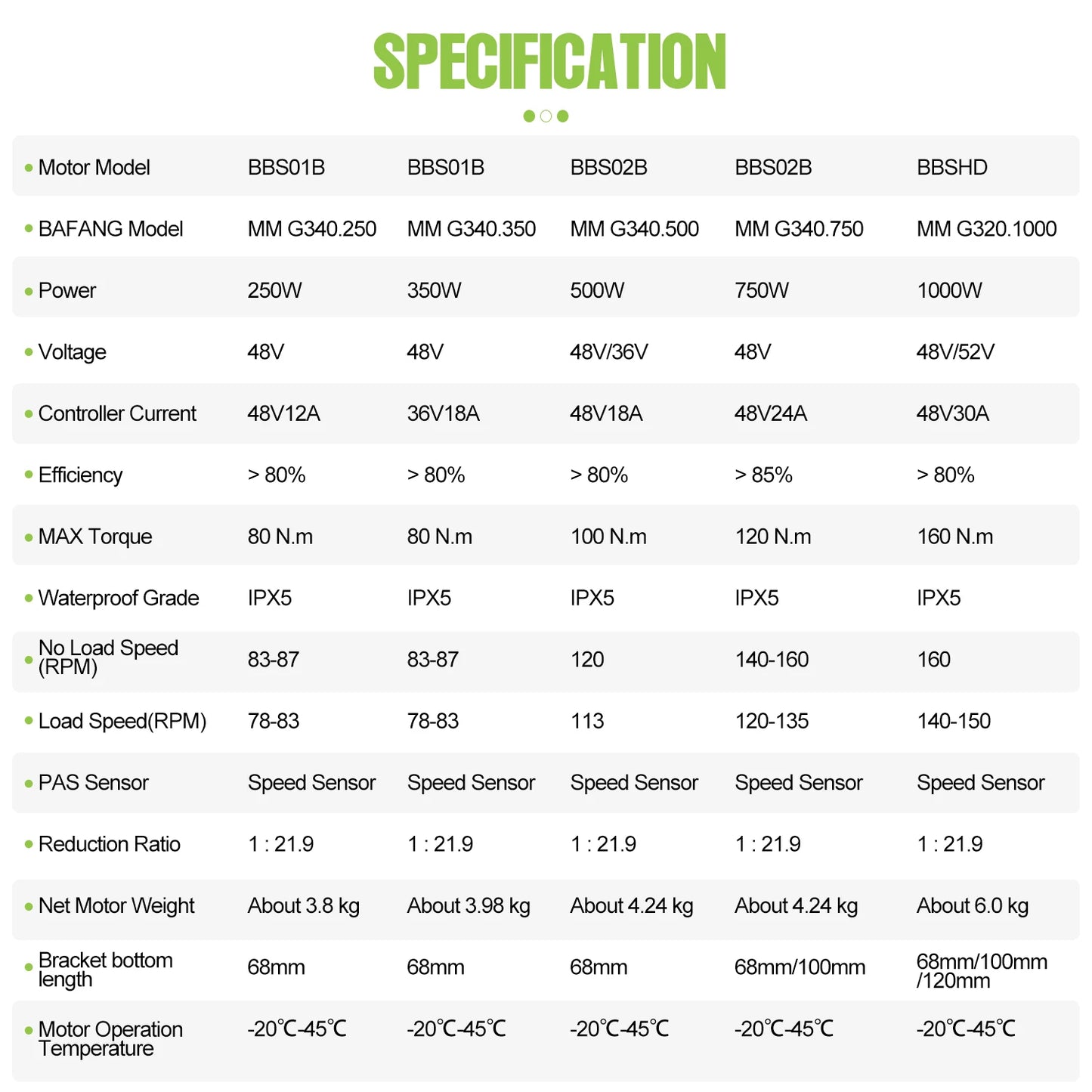

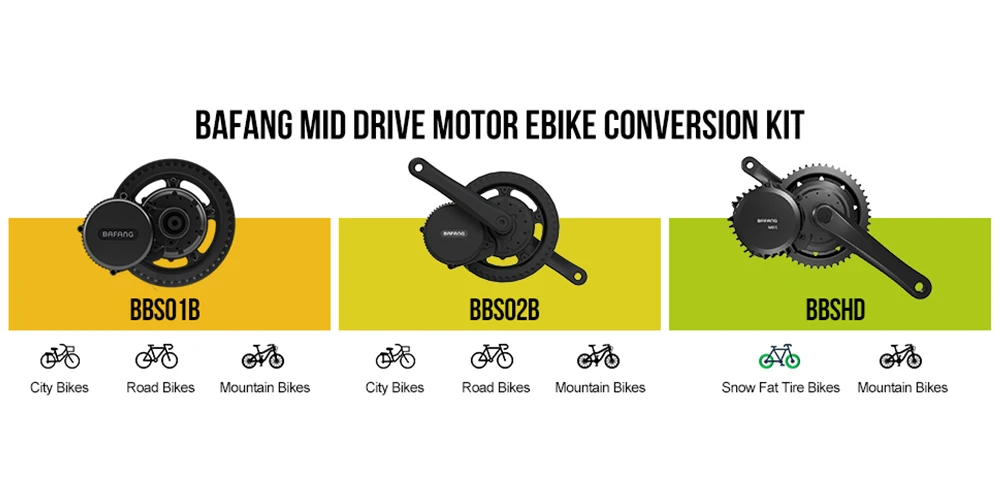

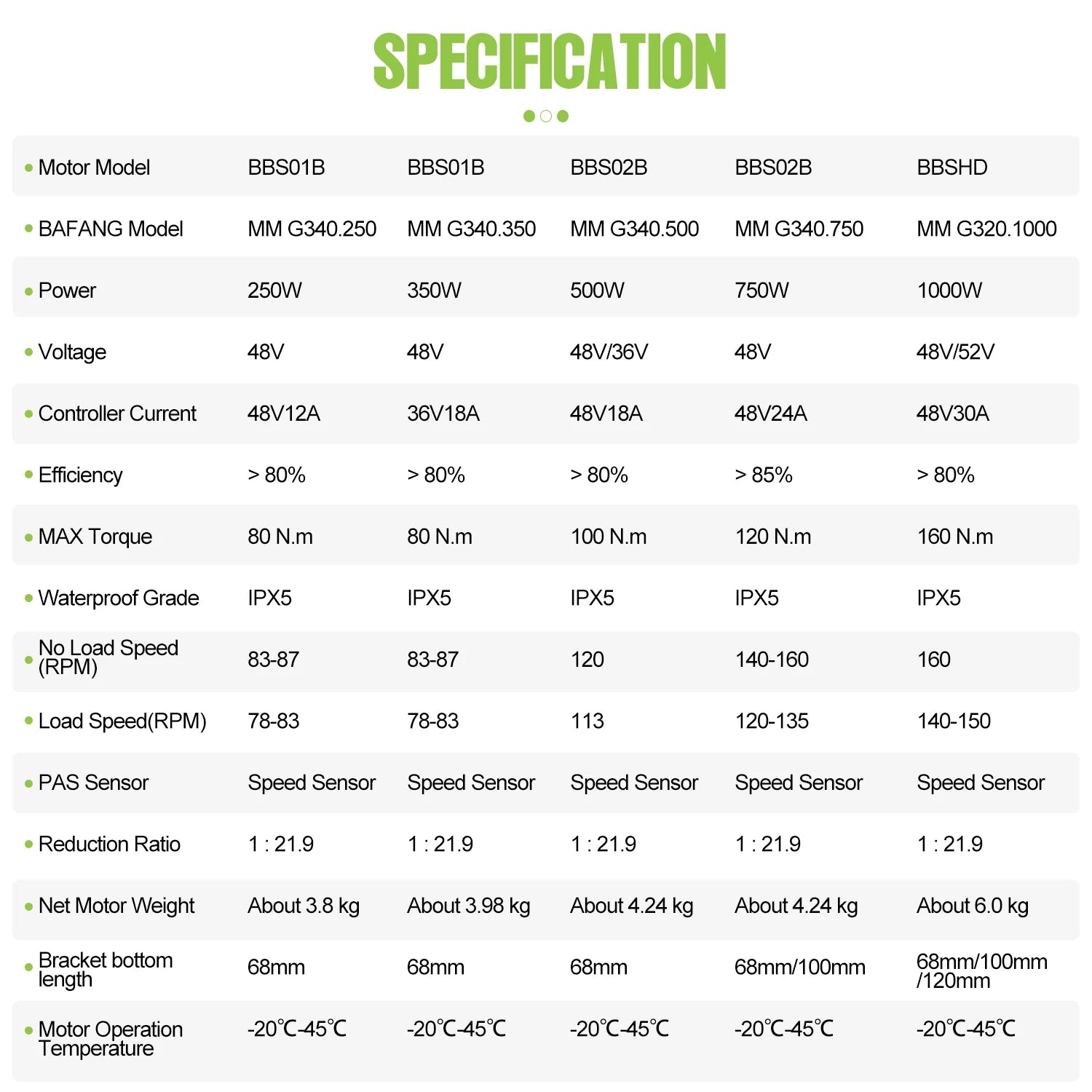

1. The BBS01B BBS02B 250W, 350W and 500W BAFANG mid drive motors are 68mm, which is compatible with bottom bracket length 68mm-73mm (73mm installation accessories are included in motor kits);

2. The BBS02B 750W BAFANG mid drive motors are 68mm or 100mm optional, which is respectively compatible with bottom bracket length 68mm-73mm or 90-100mm (If you need washer, you could leave a note in orders or contact us);

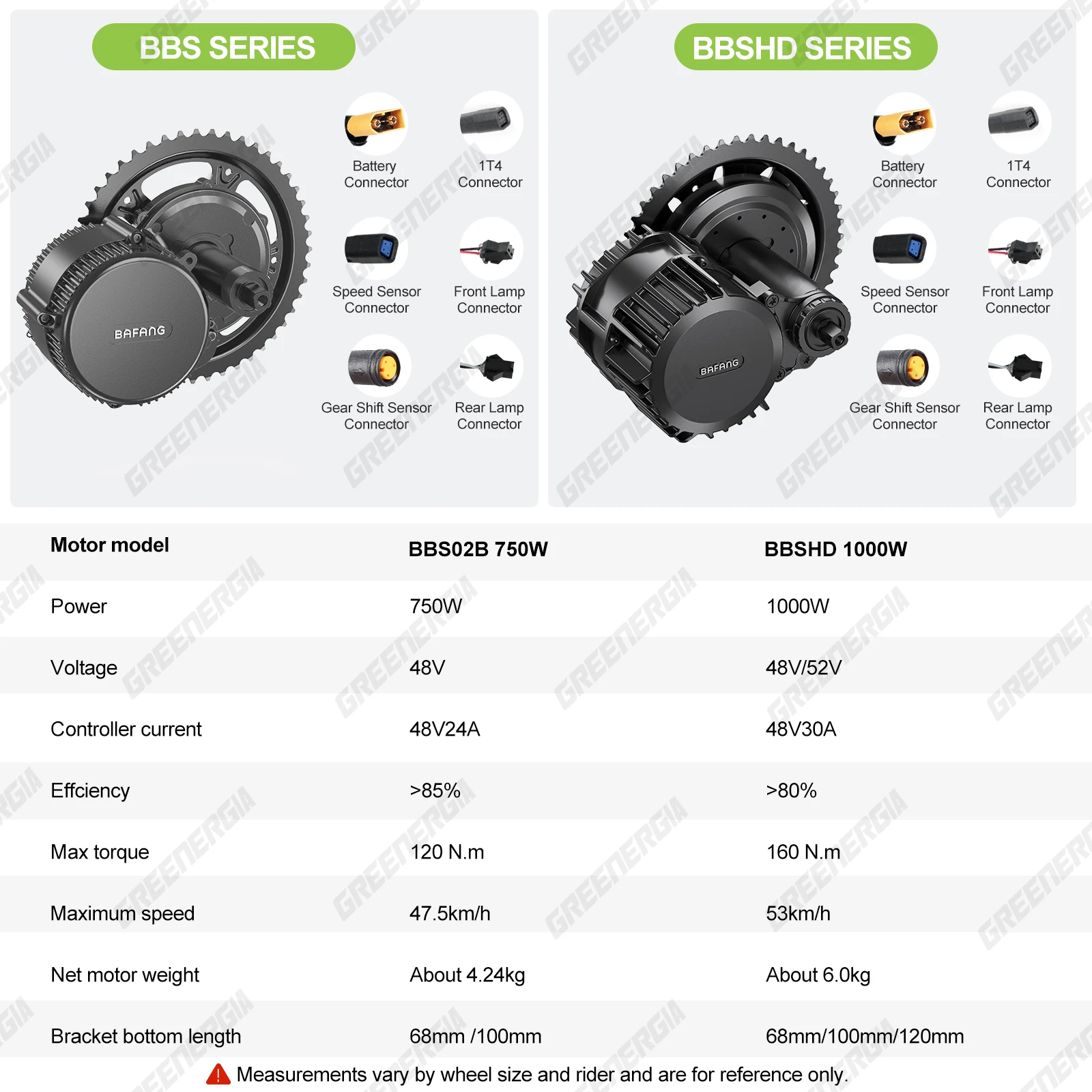

3. The BBSHD 1000W BAFANG mid drive motors are 68mm, 100mm or 120mm optional, which is respectively compatible with bottom bracket length 68mm-73mm, 90mm-100mm or 110mm-120mm (If you need washer, you could leave a note in orders or contact us).

4.The 48V 1000W motor has a 48V controller and the 48V 1000W motor has a 52V controller. But the two markings on the motor are 48V 1000W. If you use the USB programming cable to program the 52V motor, the 48V parameter will be displayed. Some displays can't select 52V setting, but the motor works fine. The motor is slightly waterproof, do not ride in the rain

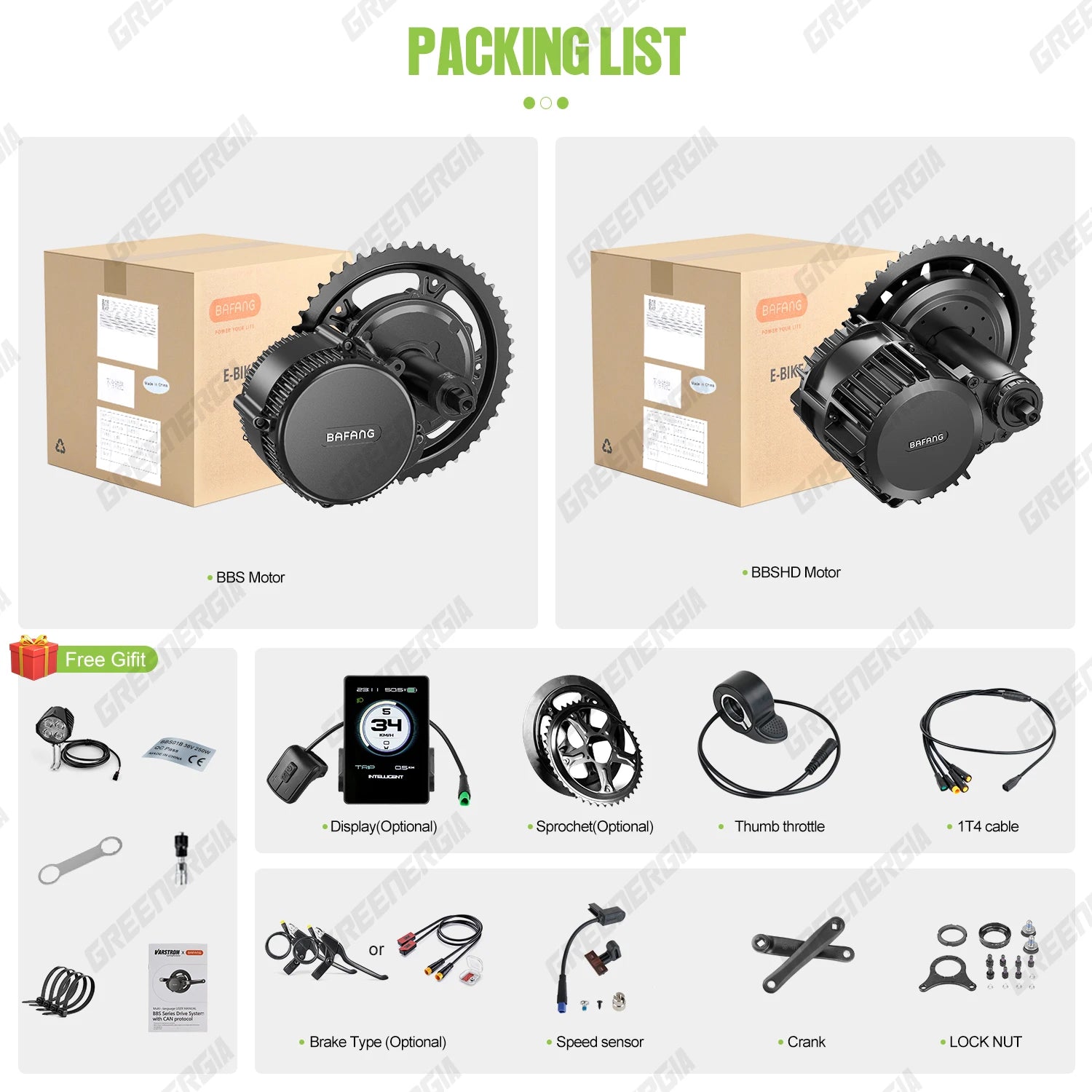

Packing List Motor Kit

1 PC Bafang Mid Drive Motor (Optional )

1 PC Chainwheel (Optional)

1 Pair Brake Lever or Brake Sensor (Optional)

1 PC Display (Optional)

1 Pair Crank

1 Set Thumb Throttle

1 Set Speed Sensor

1 PC 4 in 1 Cable

1 Set Accessories

Free Gifts

1 PC 6V Front Light

1 PC Install Tool Wrench

1 PC Crank Remove Tool

1 PC XT60 Port Motor Battery Connector Cable

1 Set Install Accessories for 73MM Bottom Bracket

4 PCS 36V 250W Stickers (Only for 350W/500W/750W, not for 250W motor kit)

1 Set Cable Ties

1 PC User Manual

1 Pair White Gloves
