CSC 48V 1000W/1500W Gearless Electric bike Conversion Kit EBike 20" 24" 26" 27.5" 29"MTB Front Rear Hub Motor bicycle Wheel kit
CSC 48V 1000W/1500W Gearless Electric bike Conversion Kit EBike 20" 24" 26" 27.5" 29"MTB Front Rear Hub Motor bicycle Wheel kit
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: CSC
Design: Brushless
Hign-concerned Chemical: None
Motor: Brushless Non-gear Hub Motor
Mounting Position: Rear Drive
Origin: Mainland China
Size: 26inch
Voltage: 48V
Wattage: > 1000w
Noted:Conversion Kit not include Battery, tire, sprocket, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
-
Â

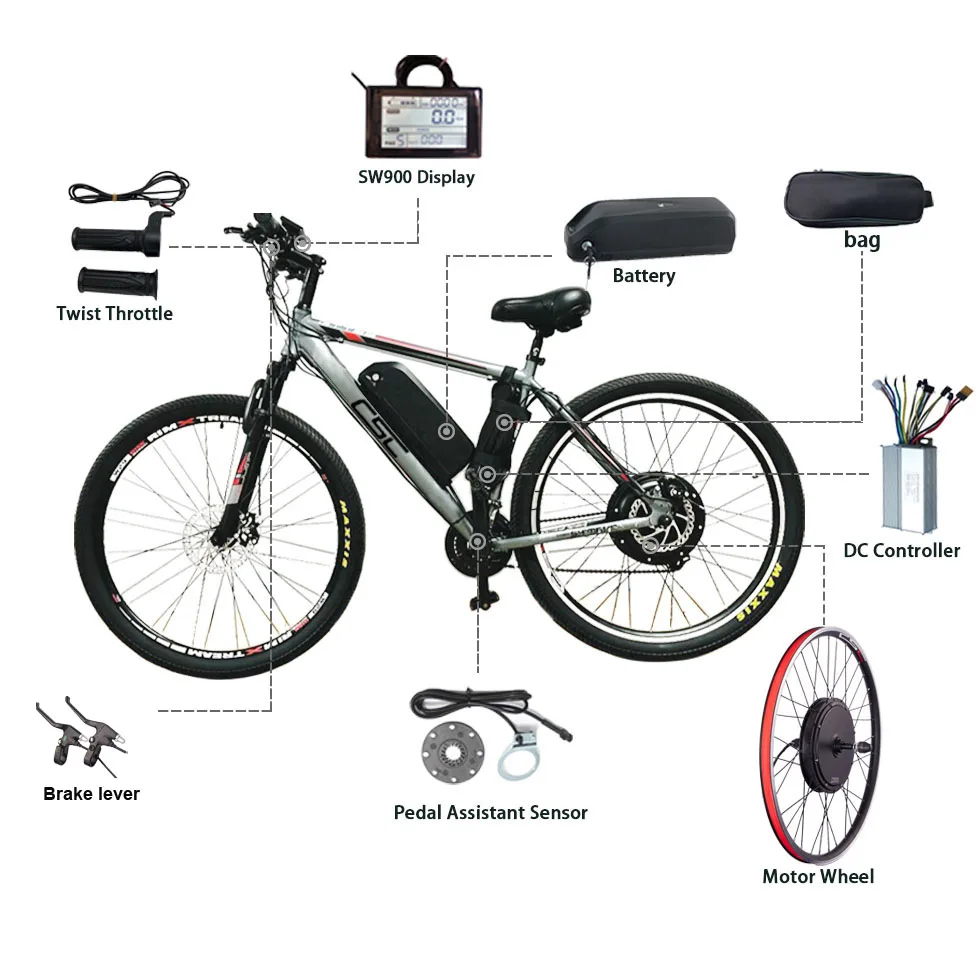

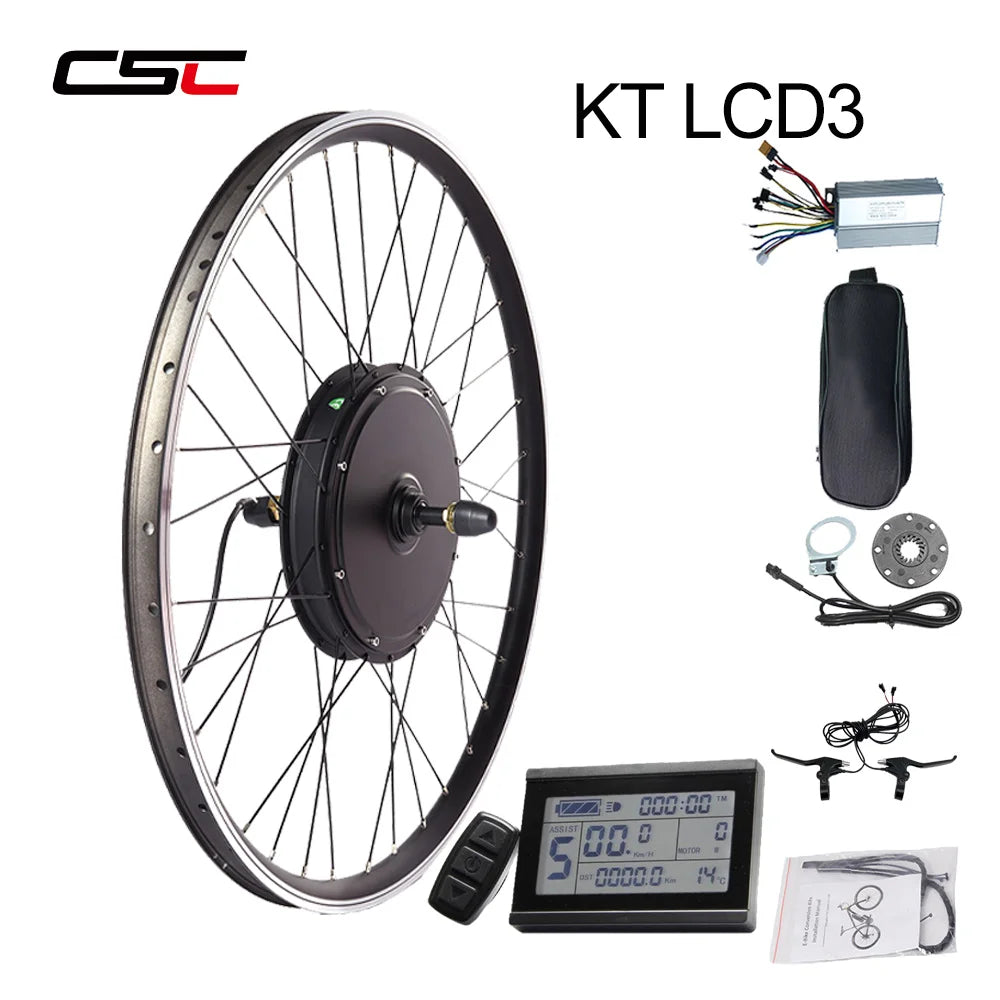

Package List:

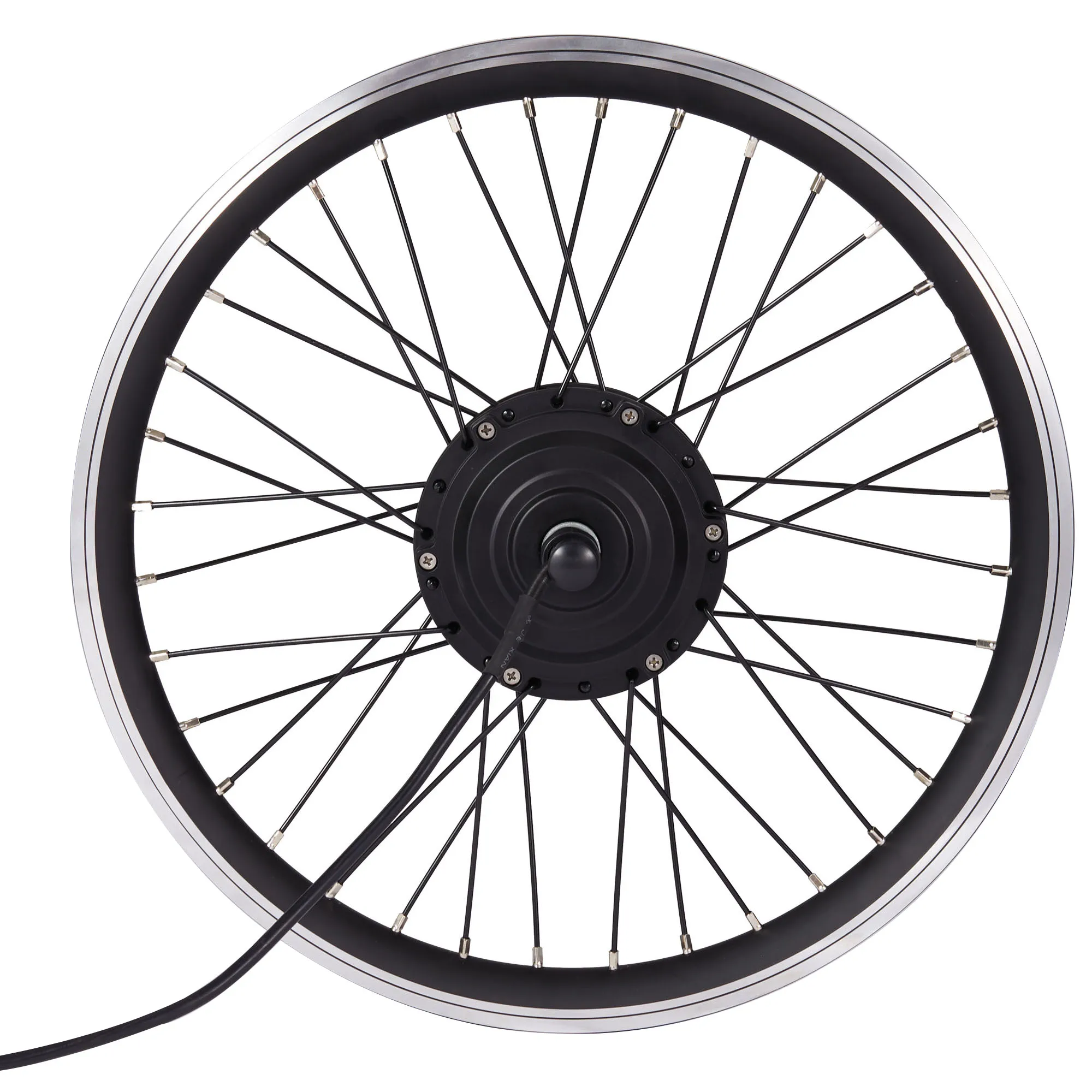

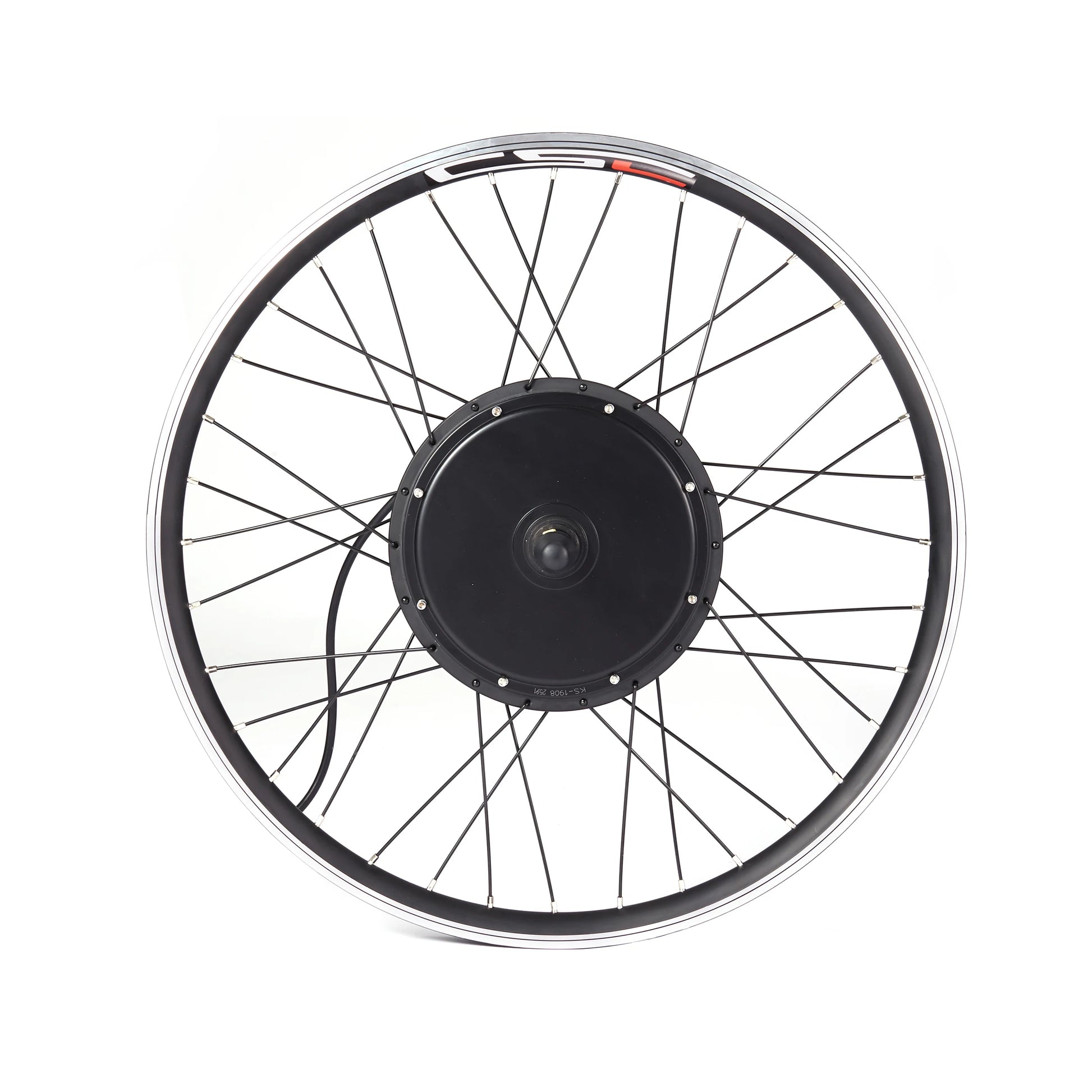

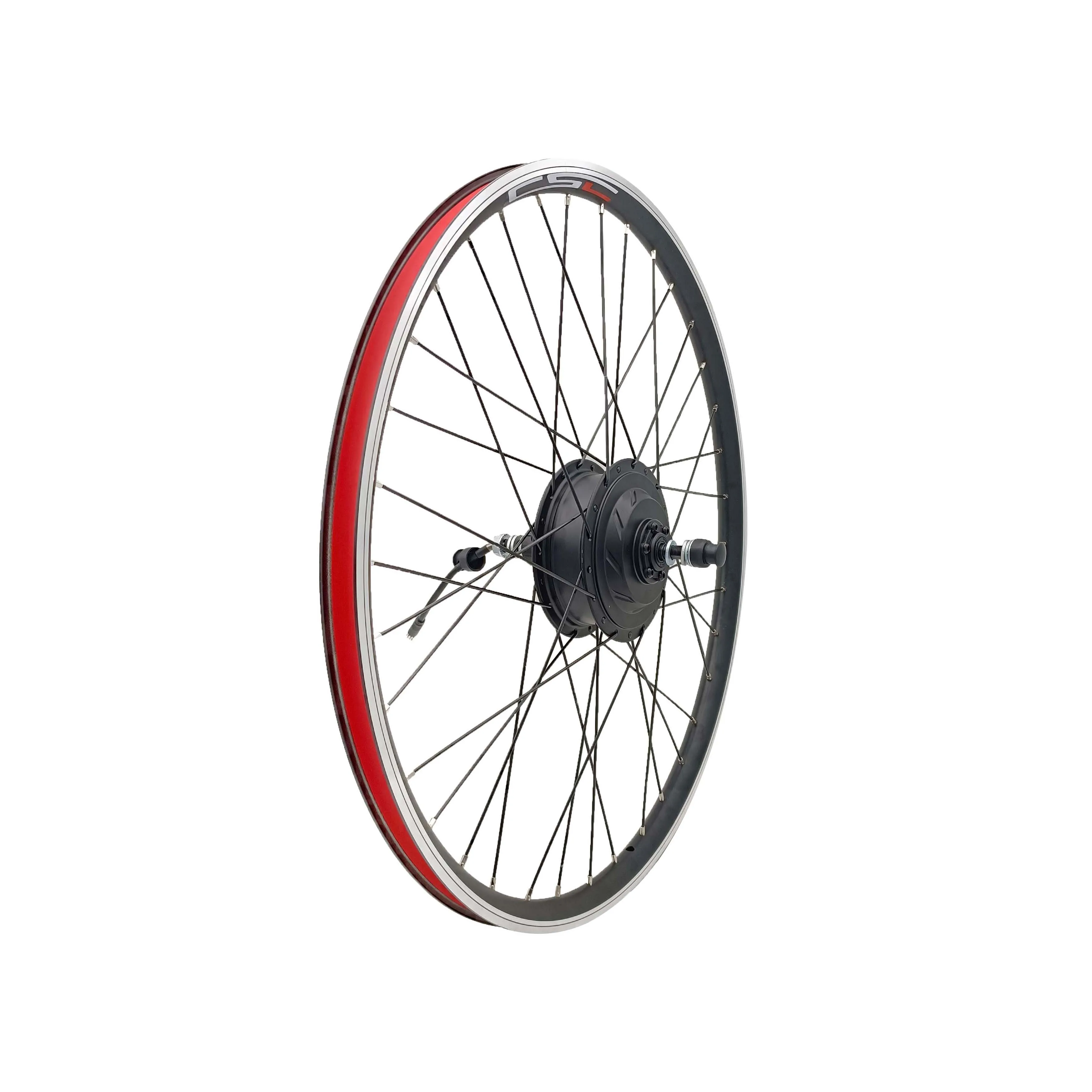

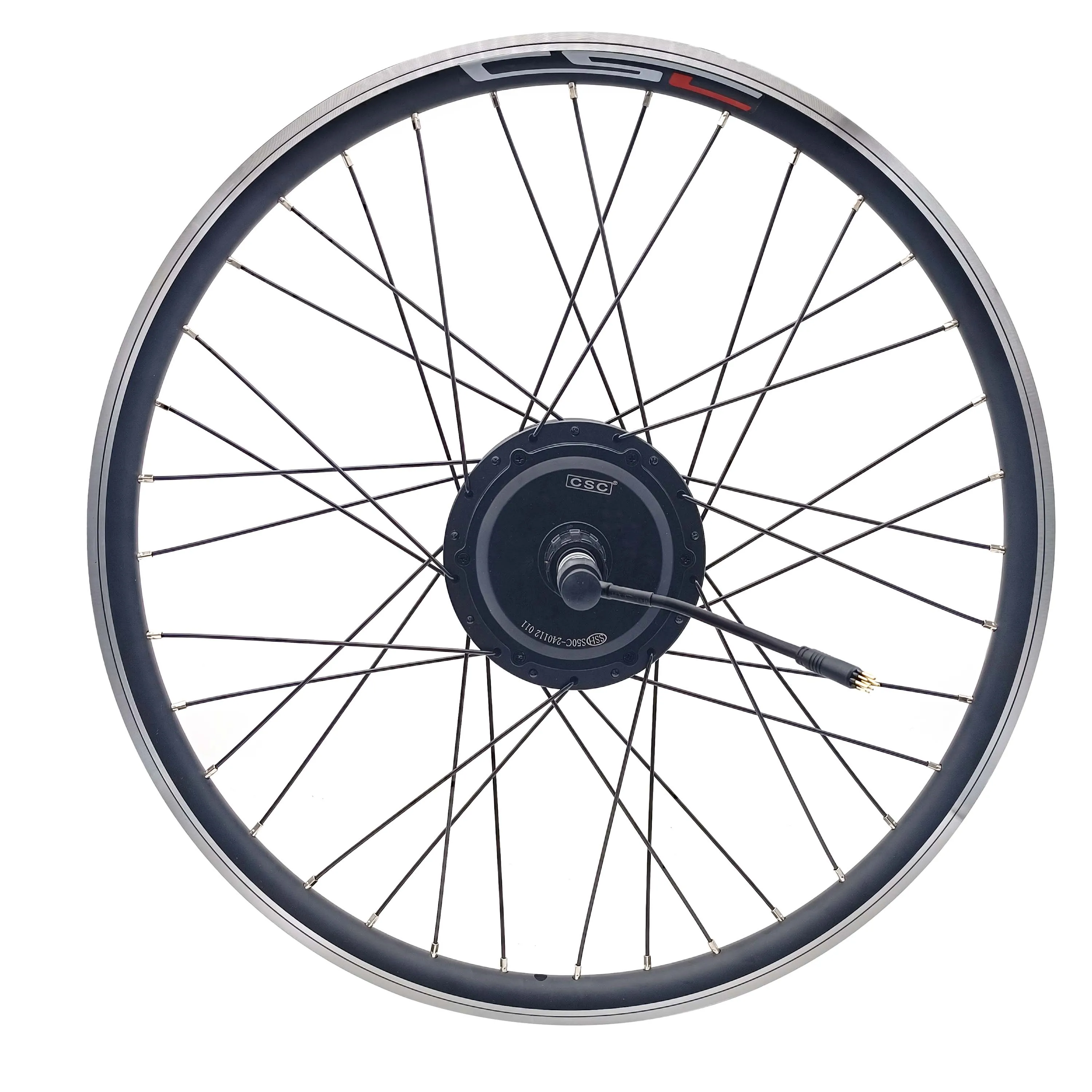

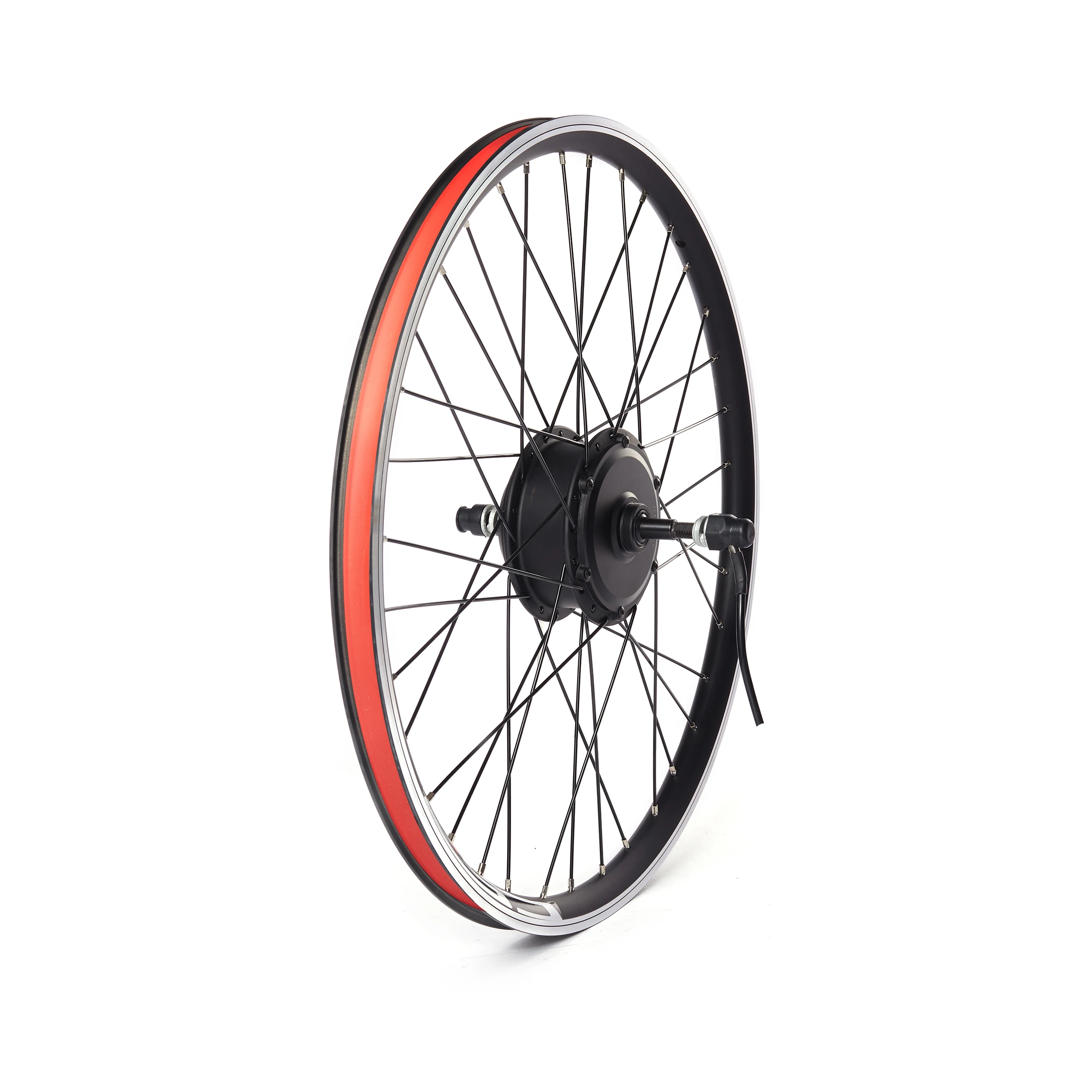

1 * motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LCD3 / SW900 OR throttle with LED

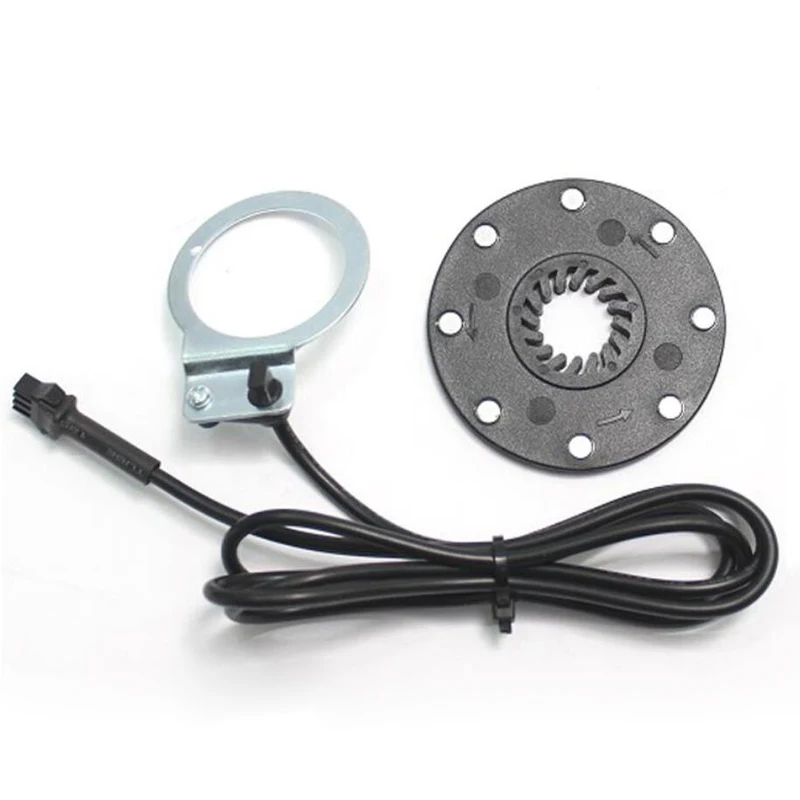

1 * 8 Magnet Pedal Assistant Sensor
1 set * Half twist Throttle OR throttle with LED
Specification:

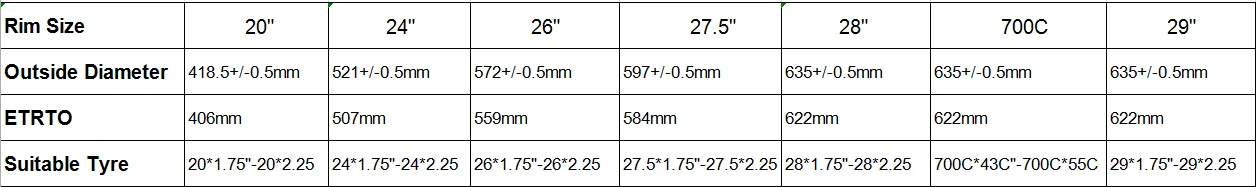

Rim:
1. Maximum speed range of motor idling:
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)

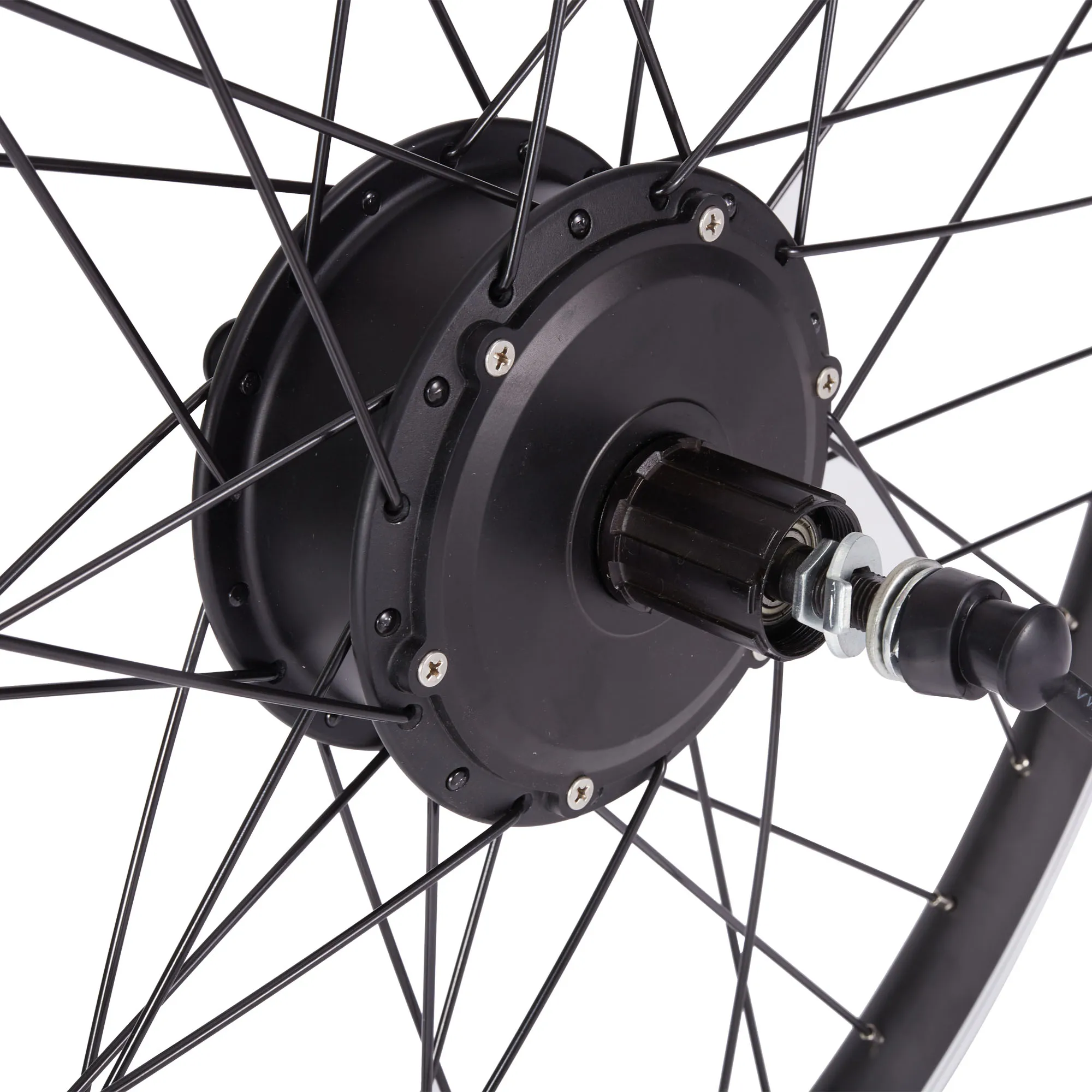

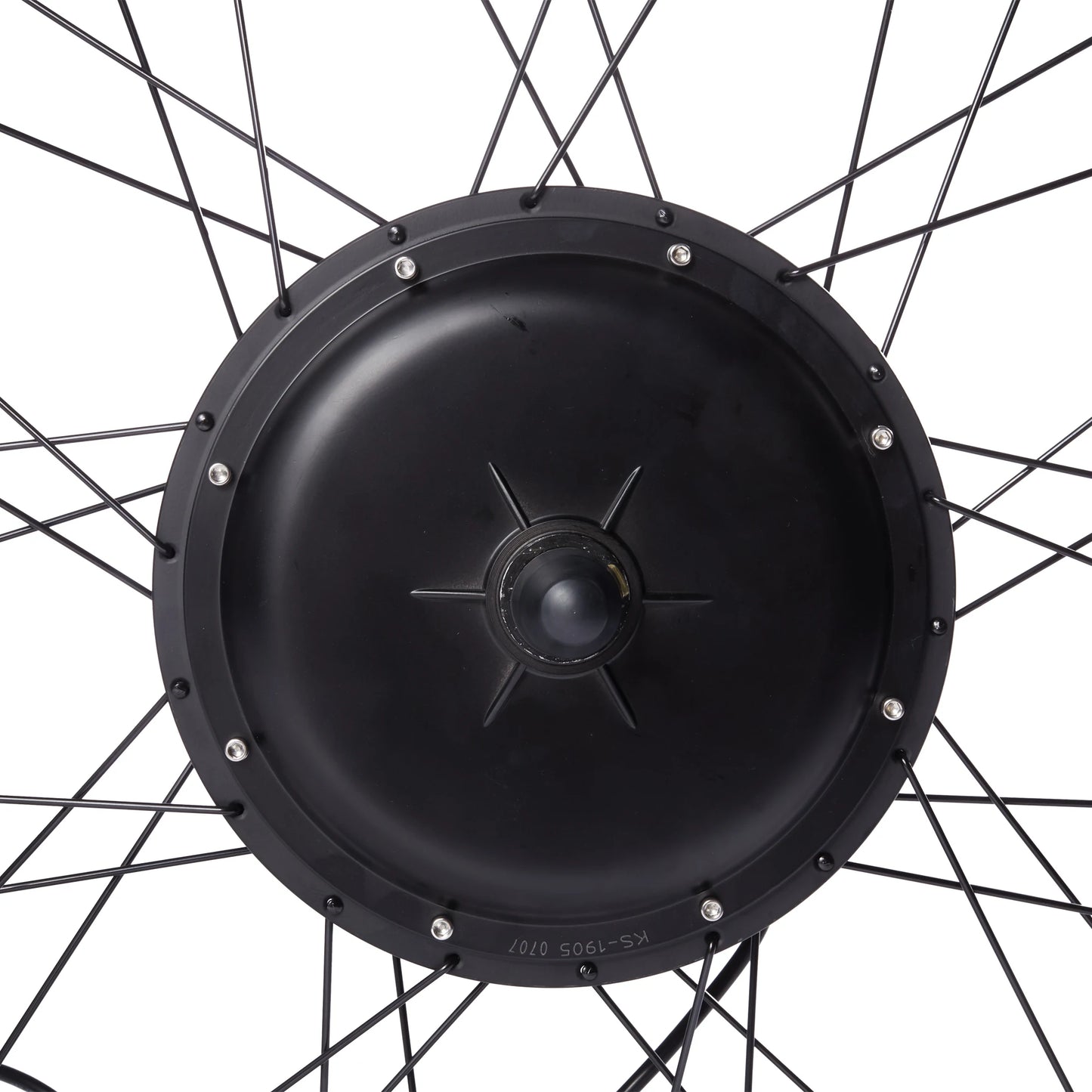

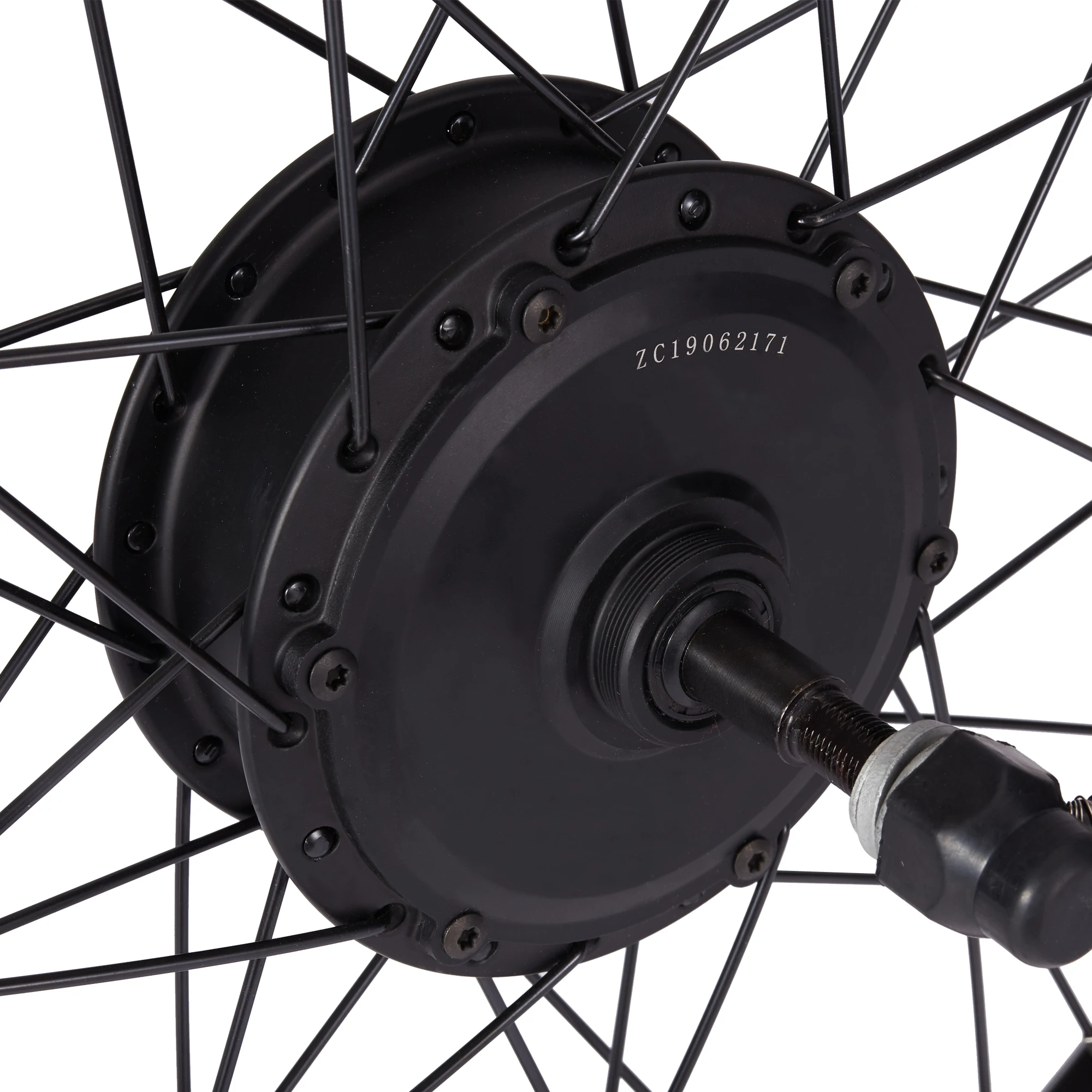

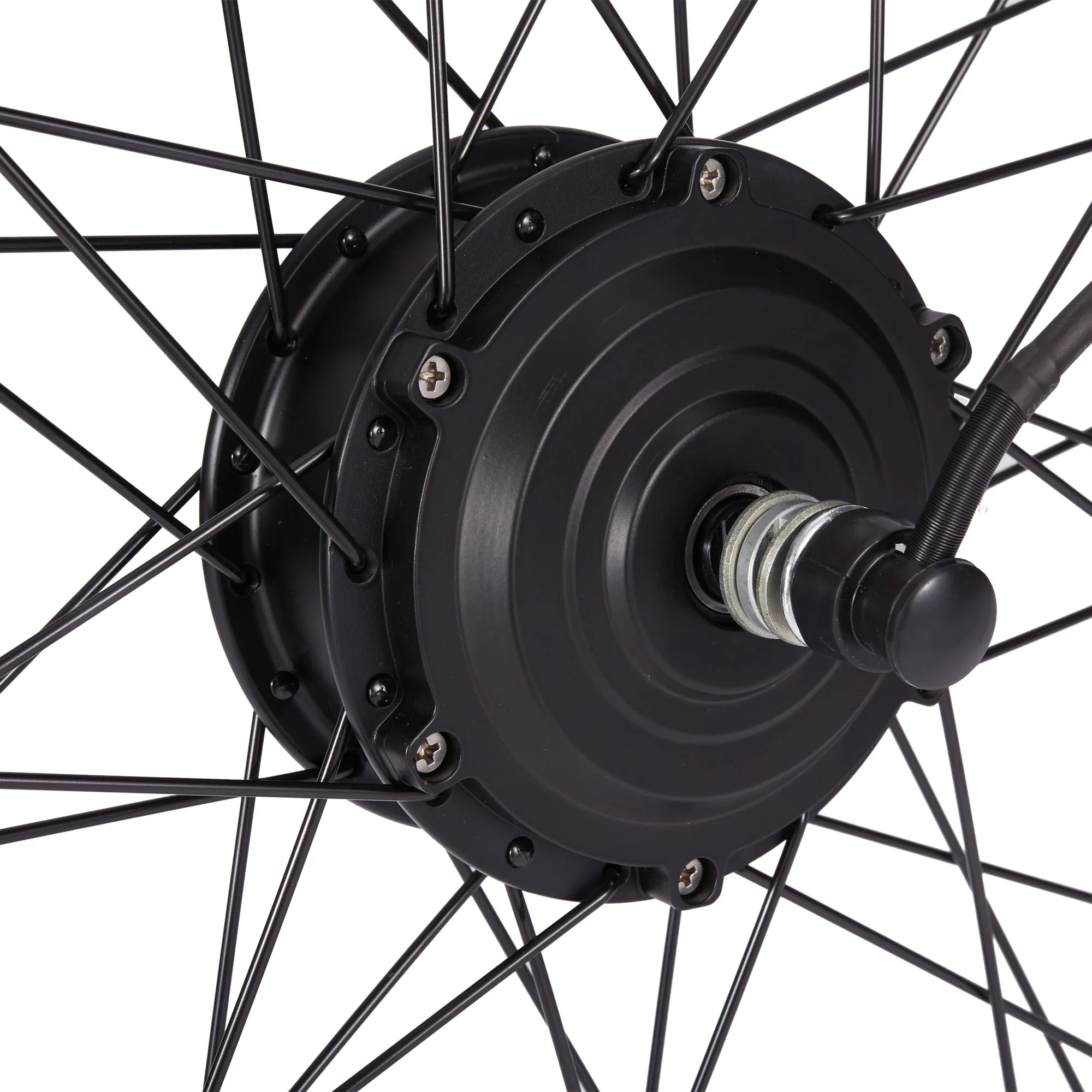

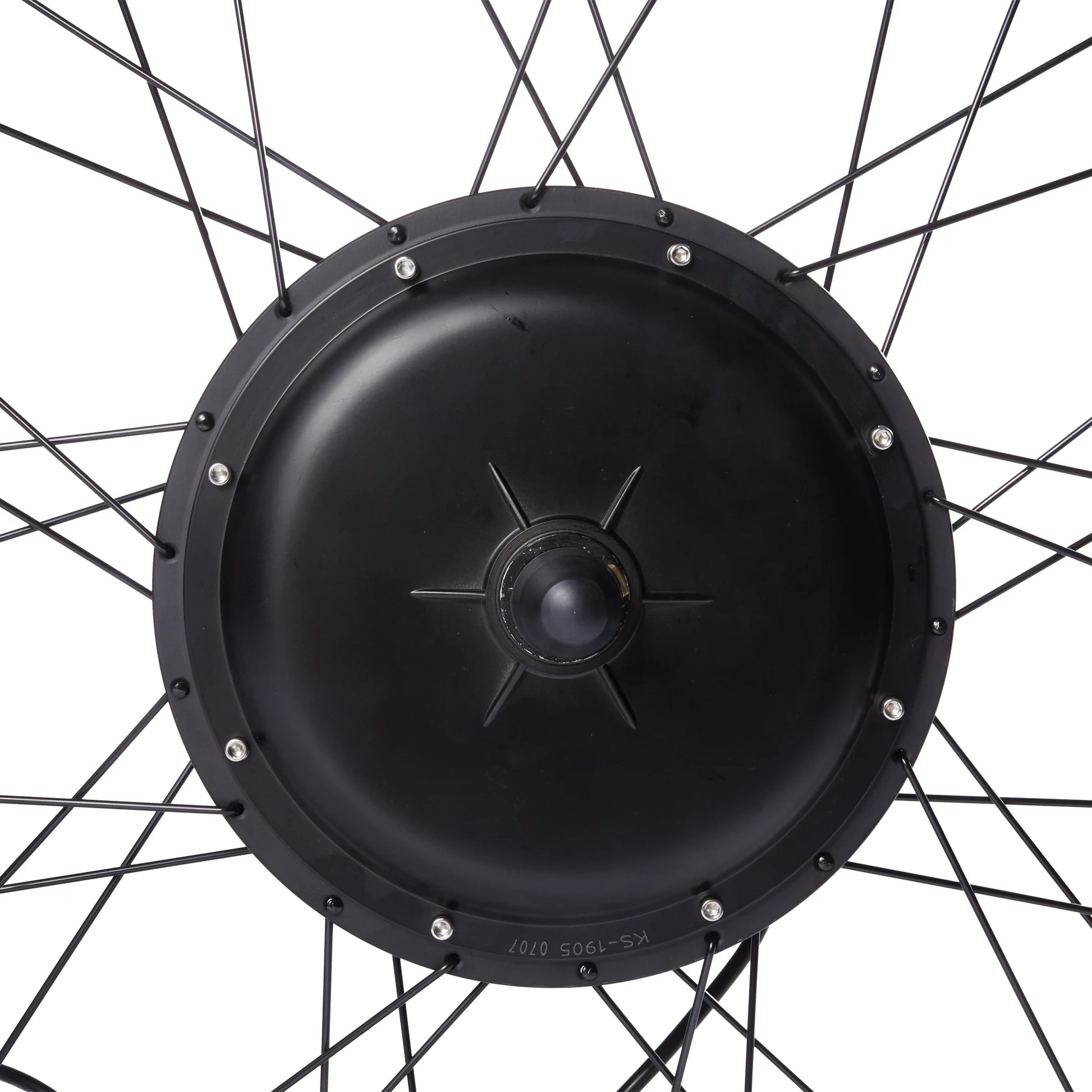

2. Hub Motor:
Brushless Non-gear Hub Motor for 48V 1000W 1500W

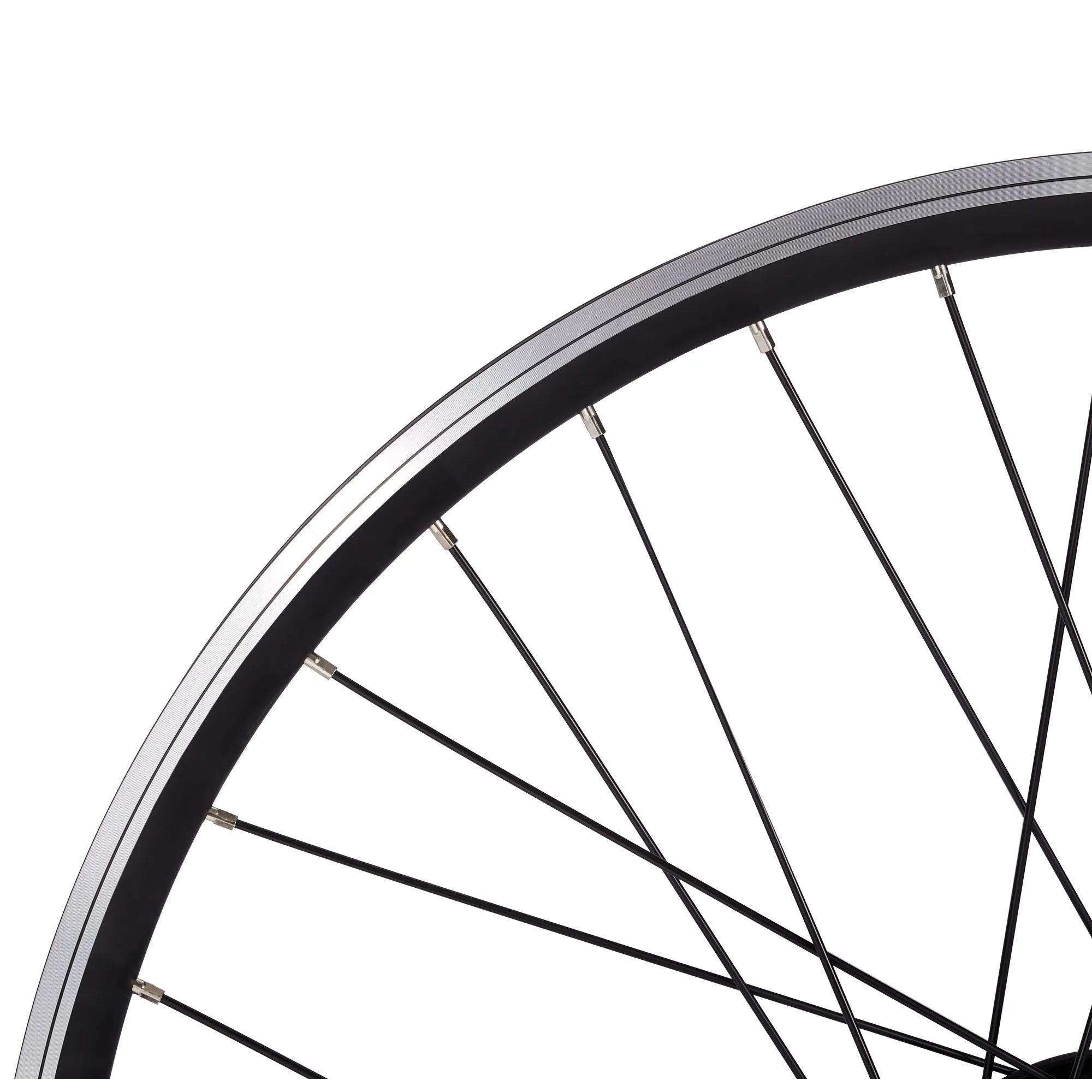

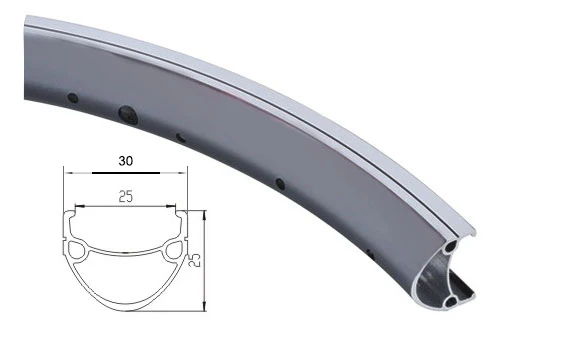

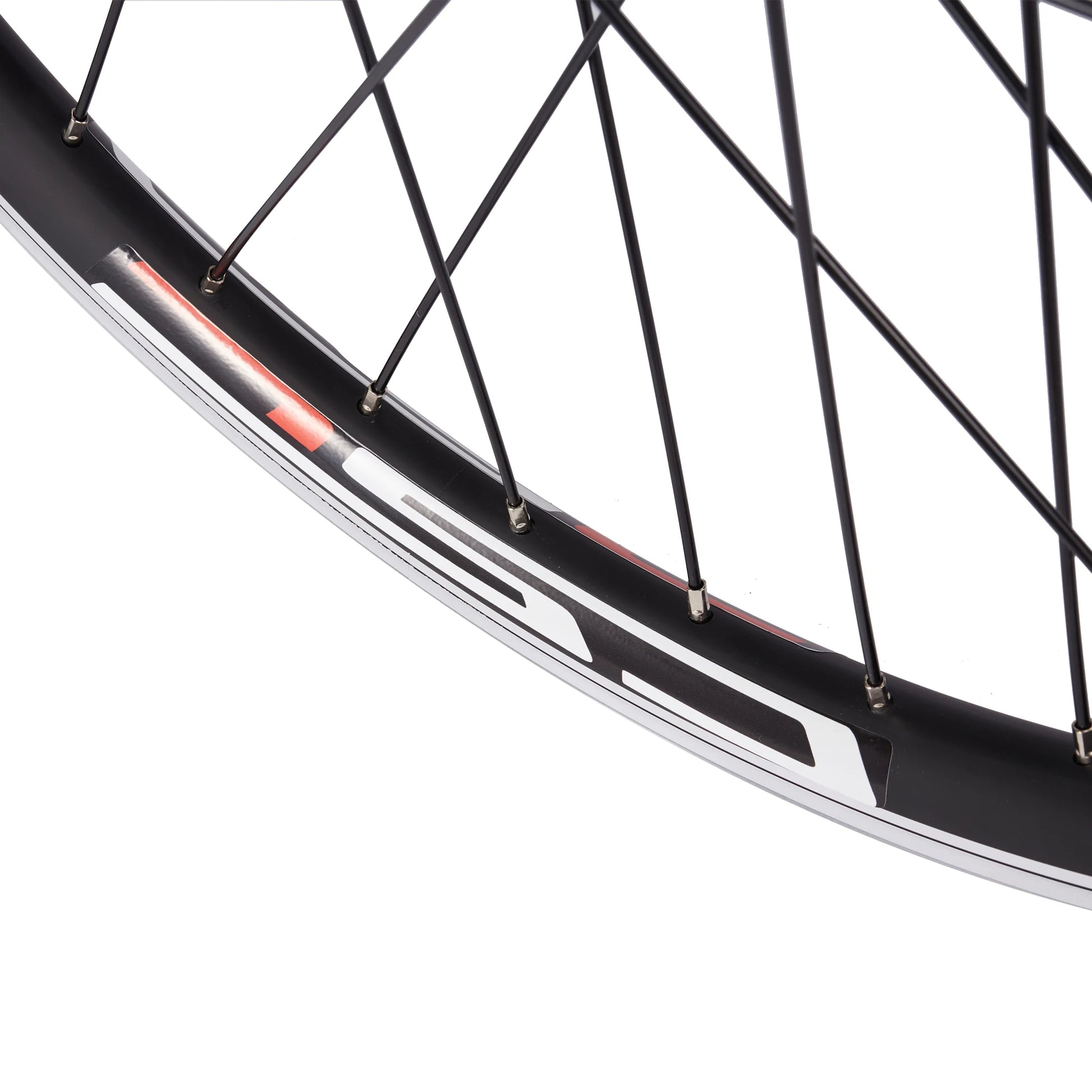

3. Rim: Double-wall Aluminium Alloy Rim
inner width 25mm,External width 30mm

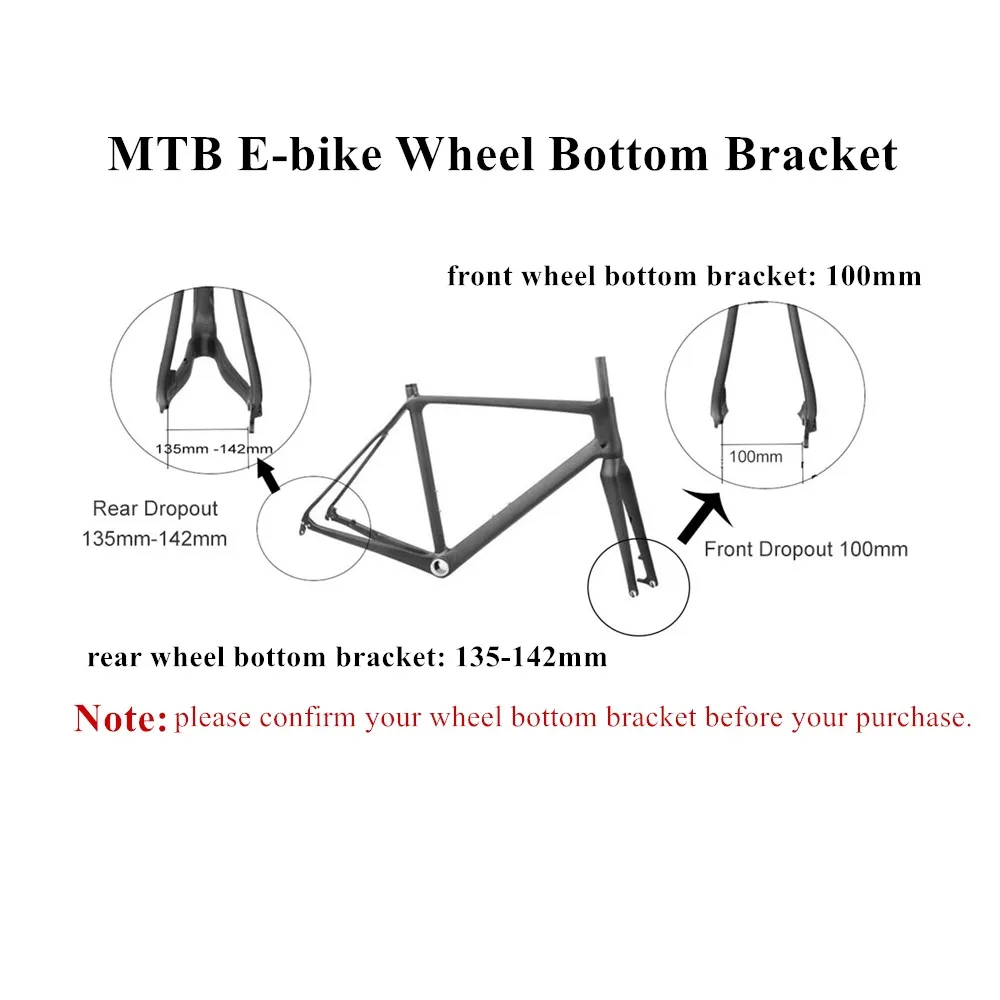

4. Motor dropout：
Front wheel: 100mm

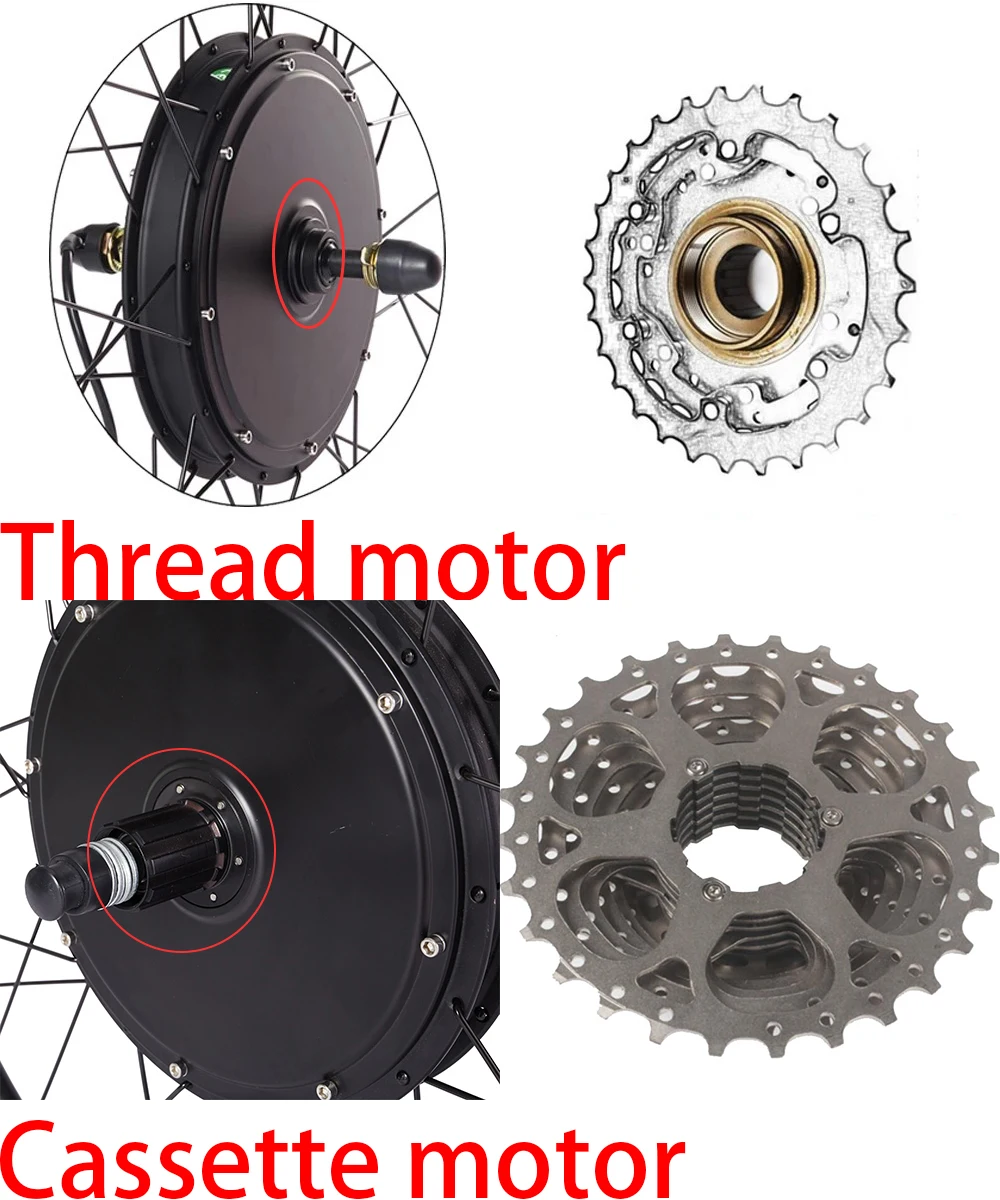

Threaded rear wheel: 135mm

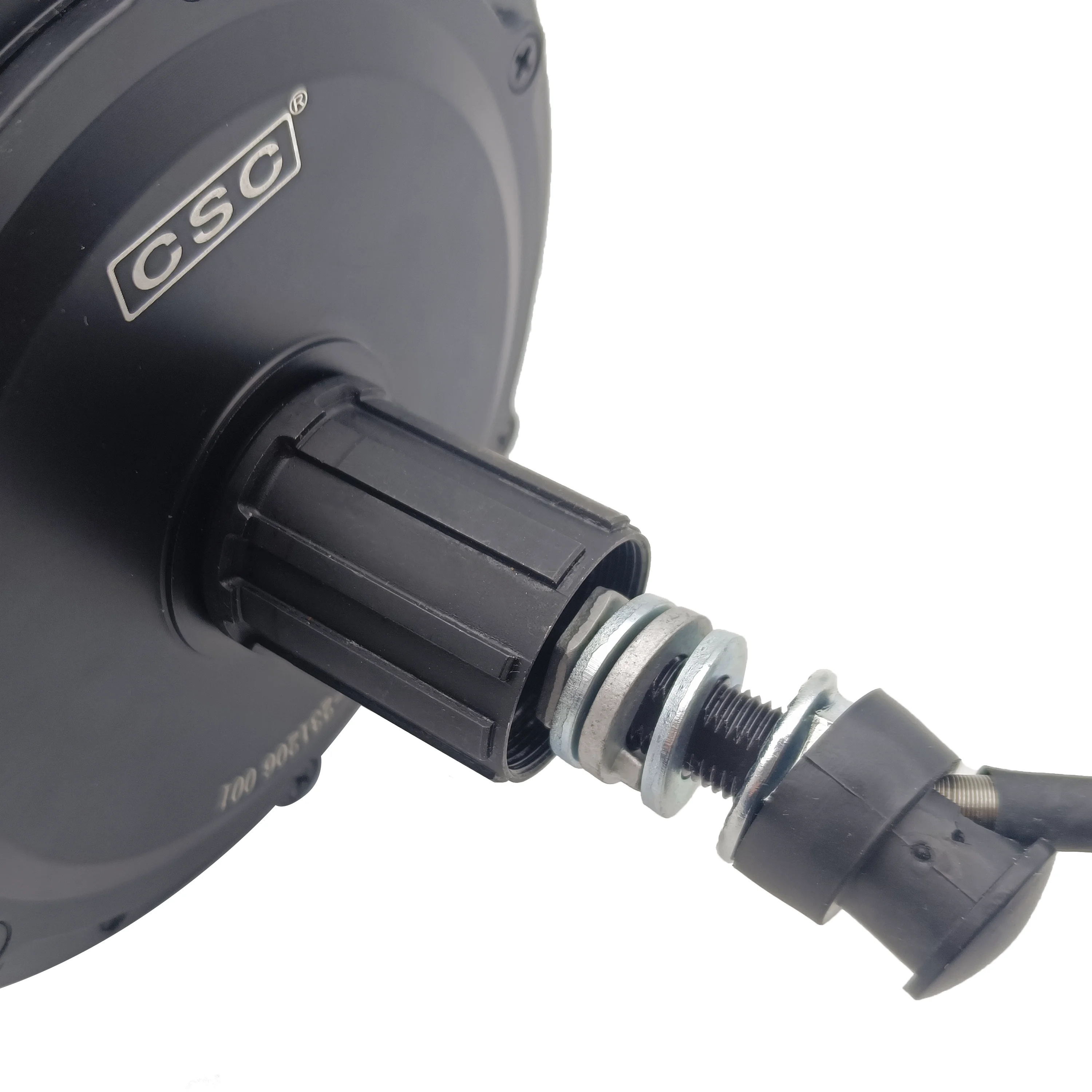

Cassette rear wheel: 138mm
5. Torque:
55NM for 1000W
60NM for 1500W
6. RPM:
470 for 48V 1000W
540 for 48V 1500W

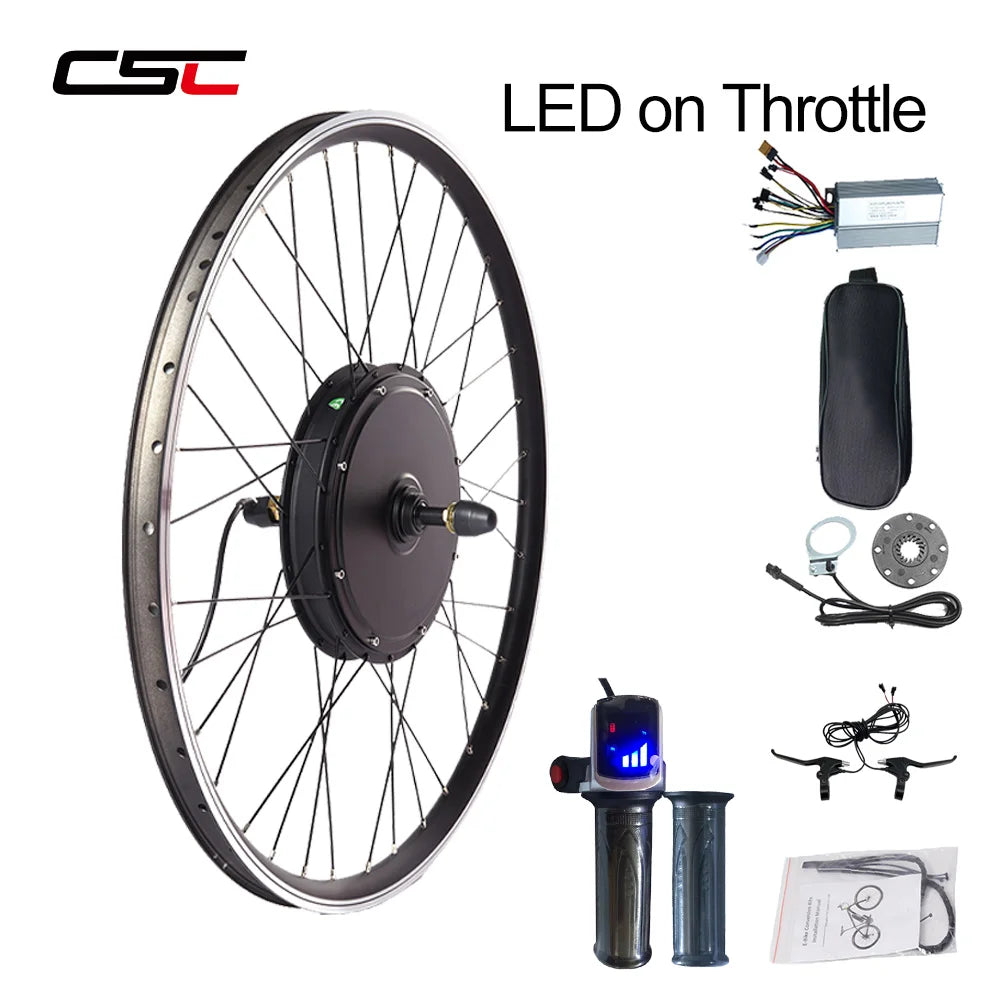

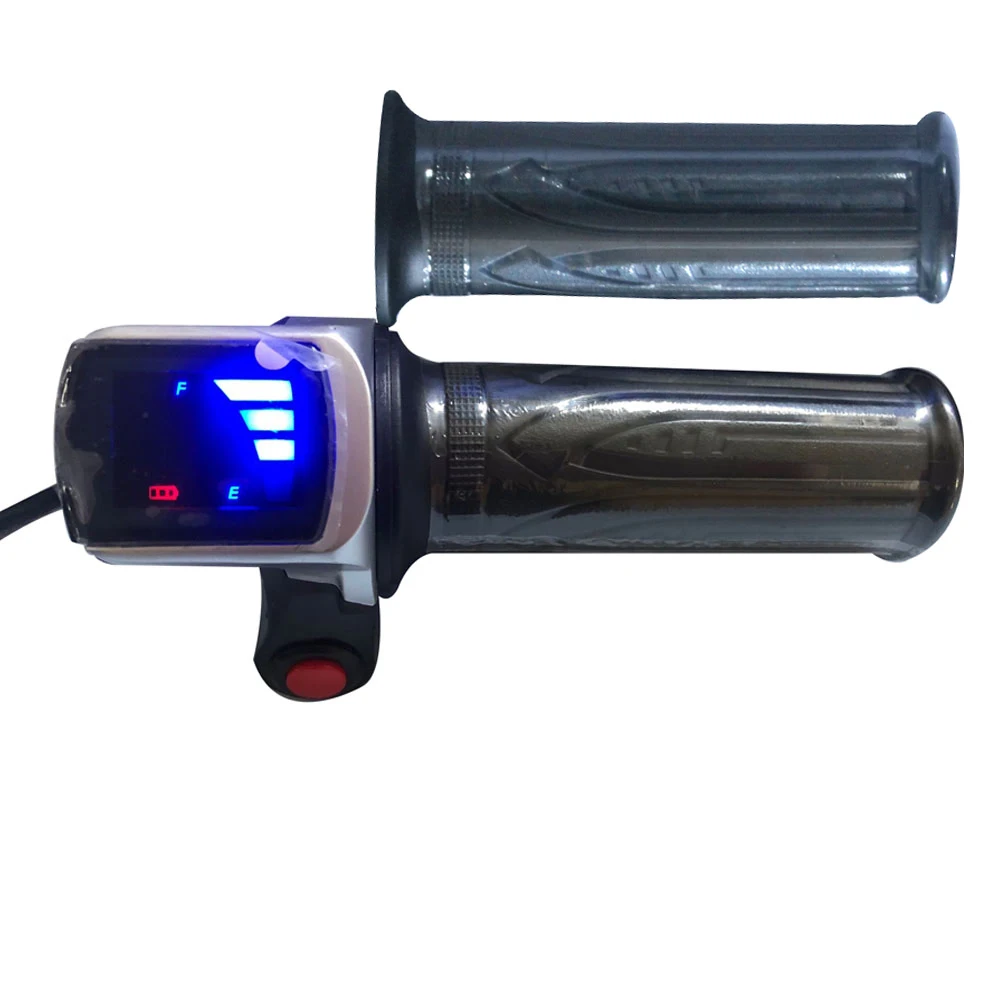

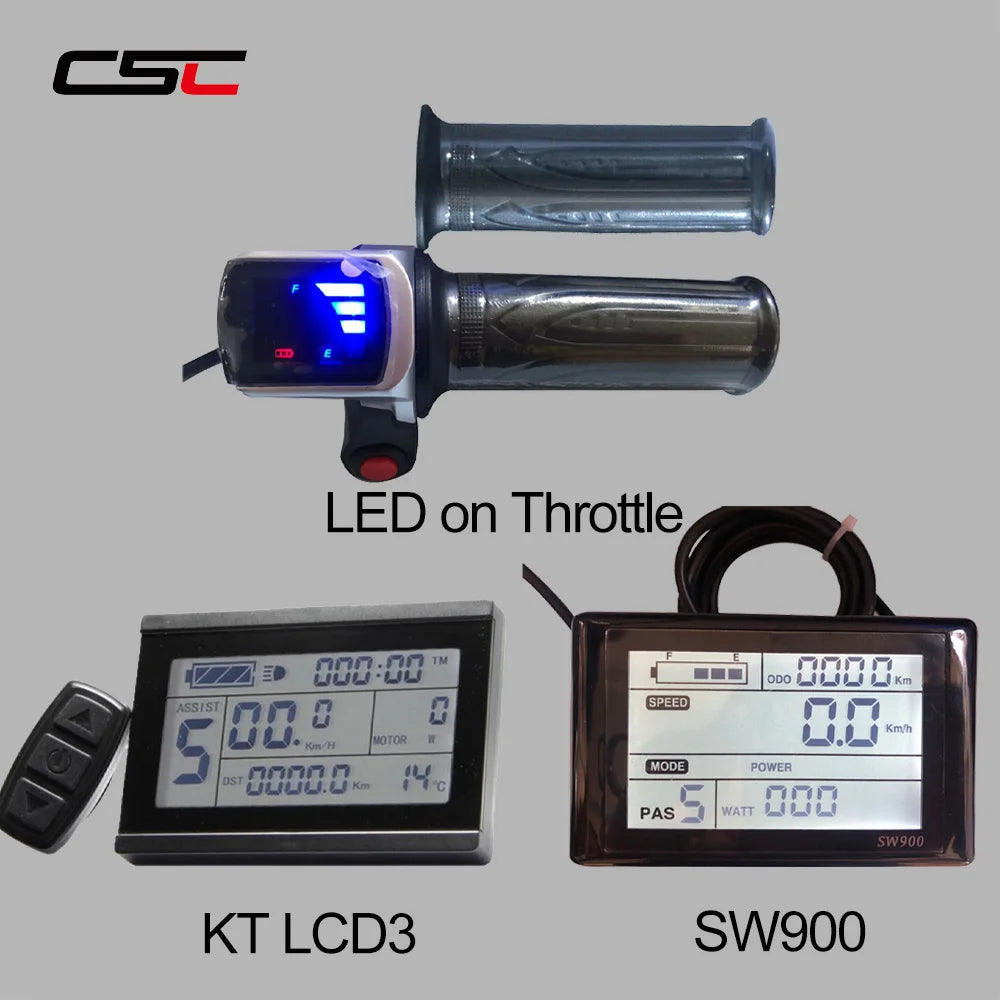

Display: throttle with display

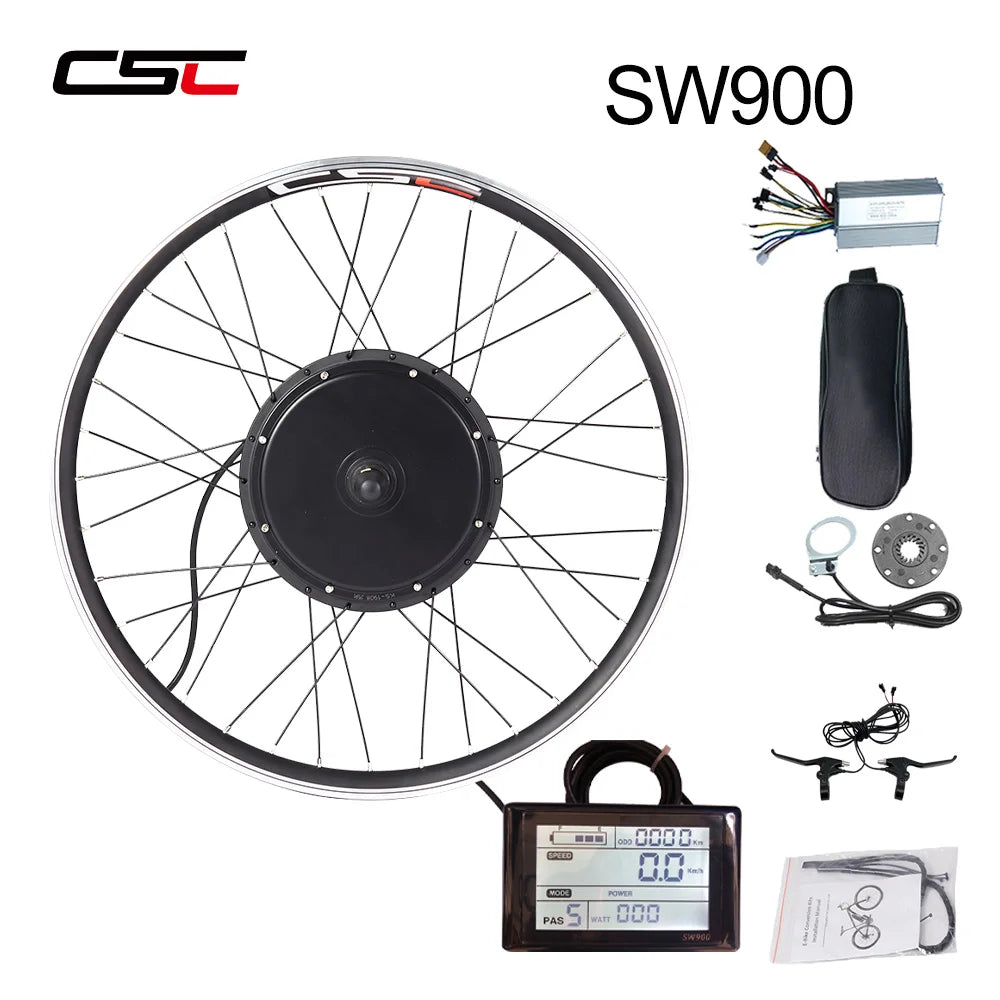

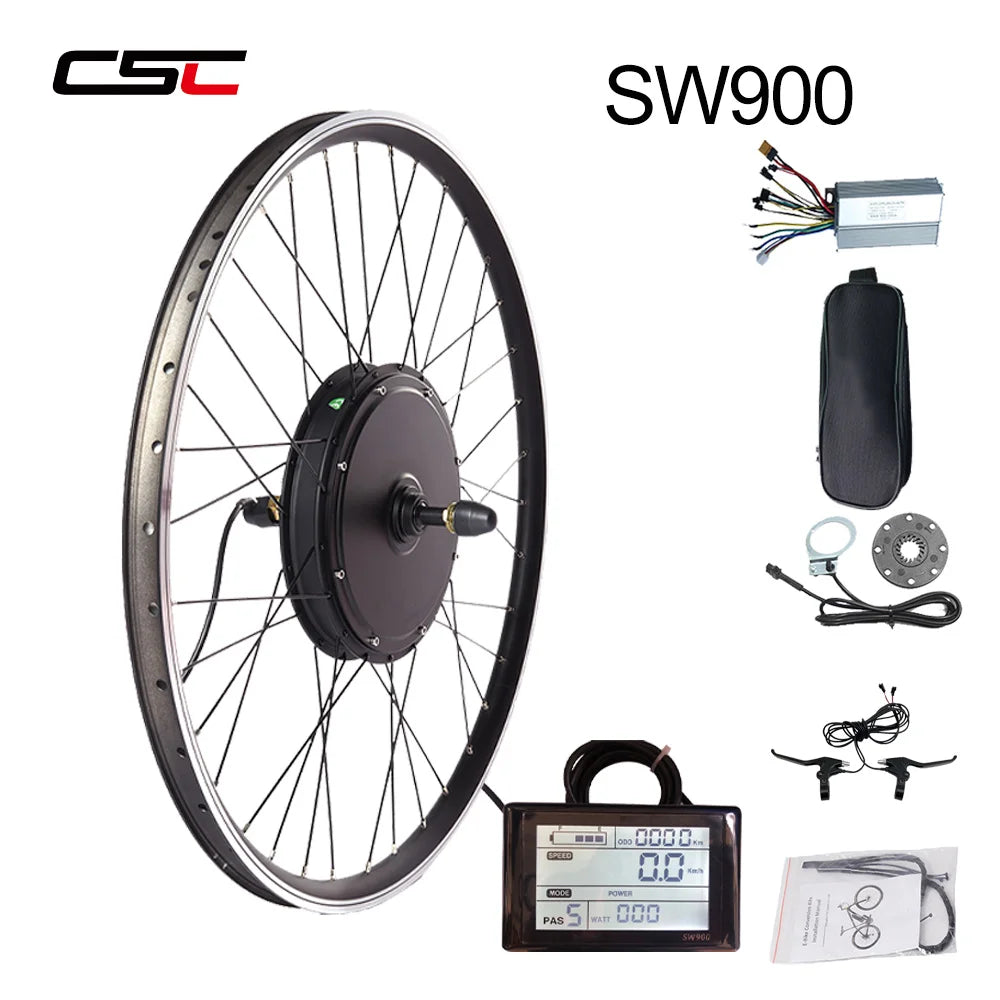

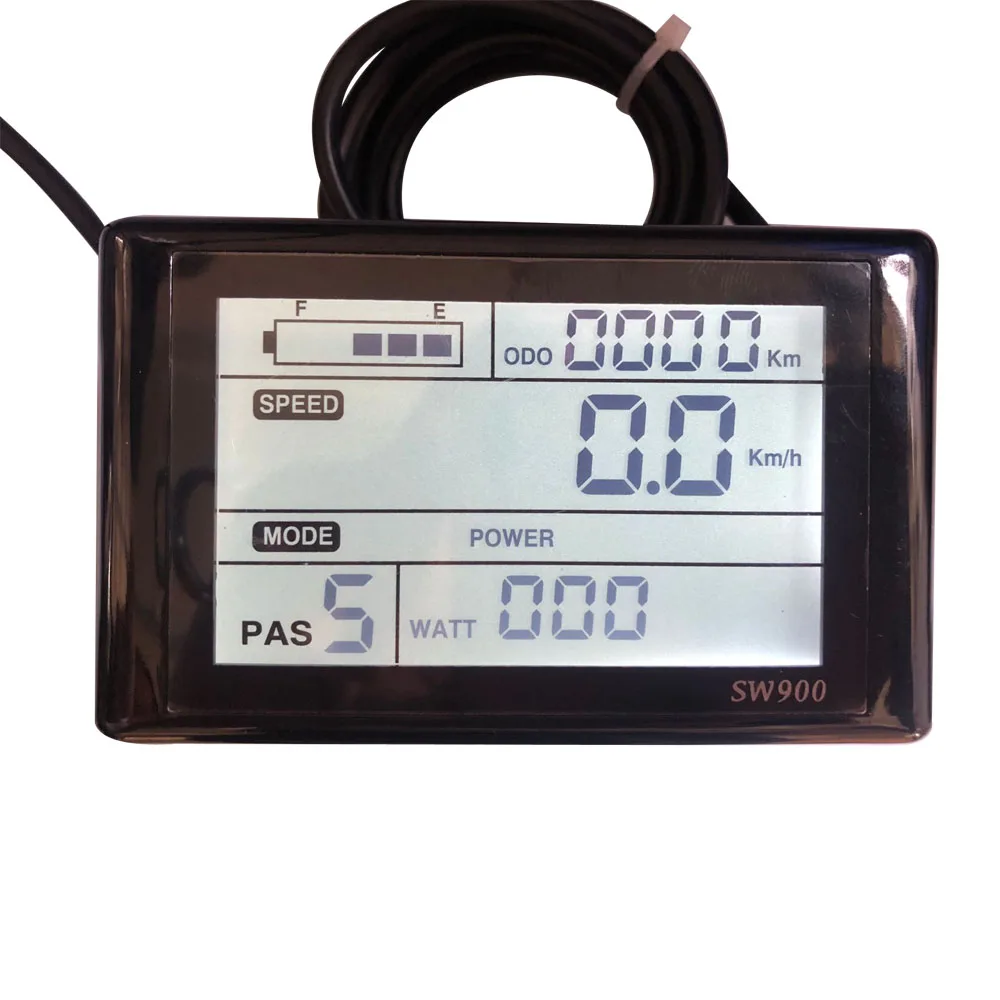

Display: SW900
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.Brake Regeneration Anti-Charge ,cruise Function

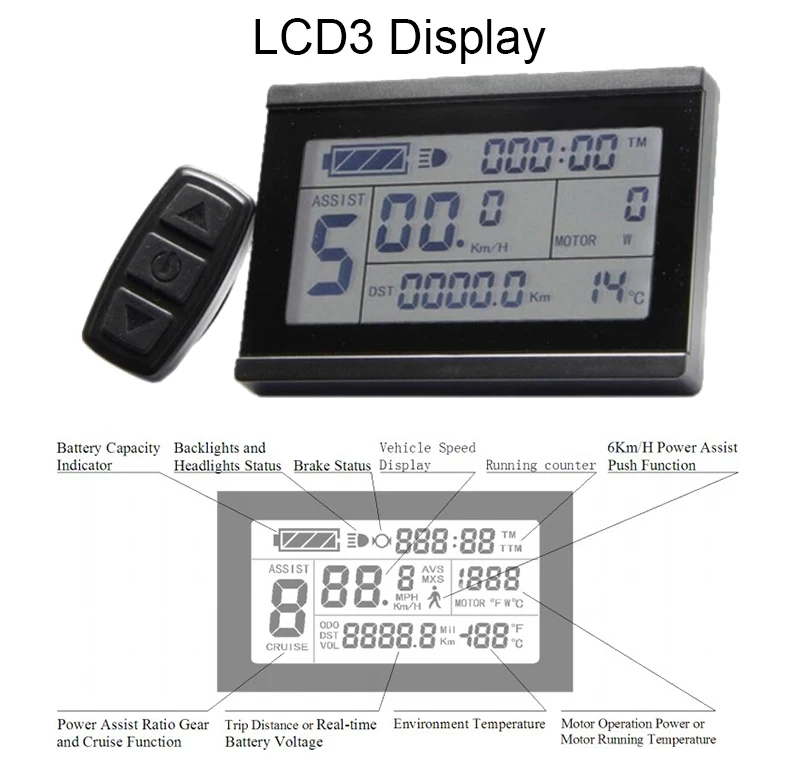

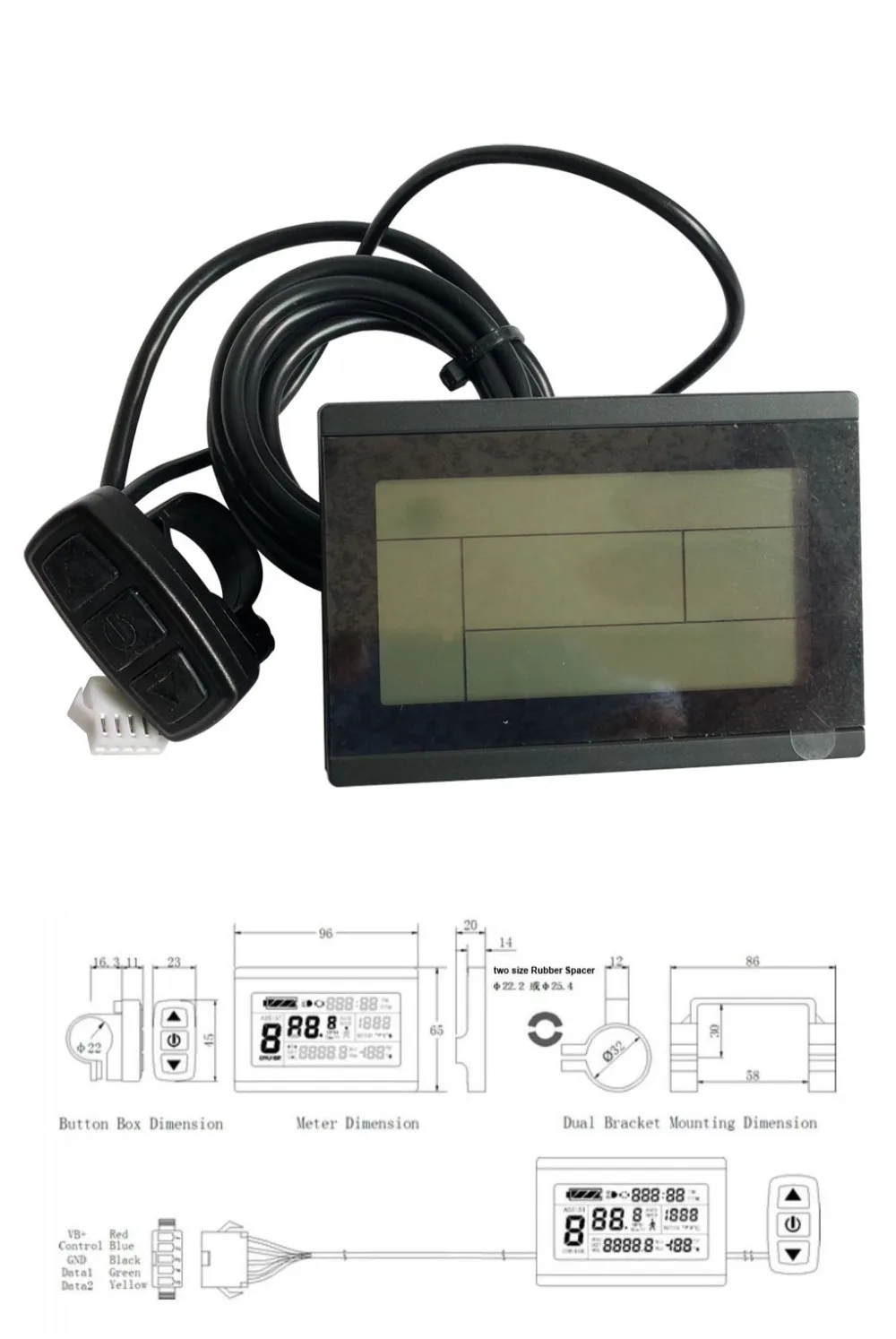

Display: KT-LCD3

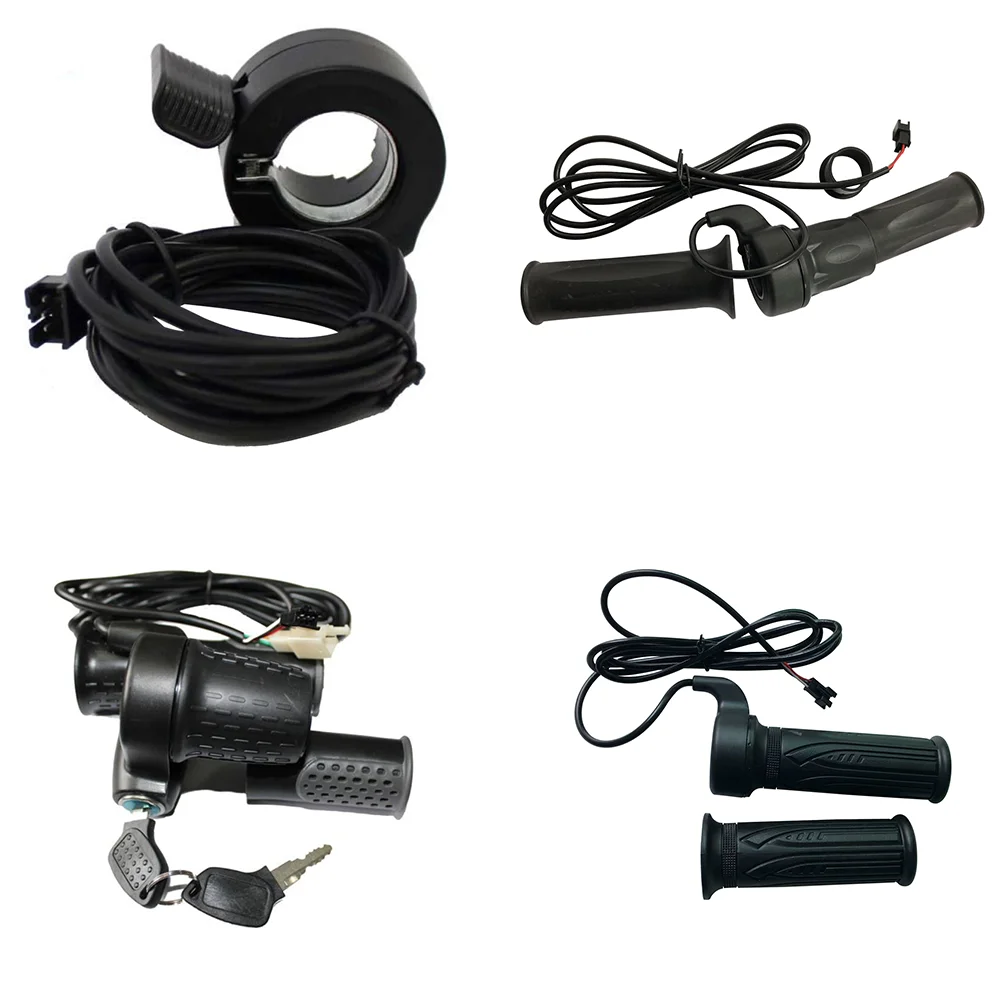

Ship from China there are 4 options
1.Half Twist Throttle (default)
2.Thumb Throttle
3.Half Twist Throttle with electric lock
4.Twist Throttle
PAS: 8 Magnet

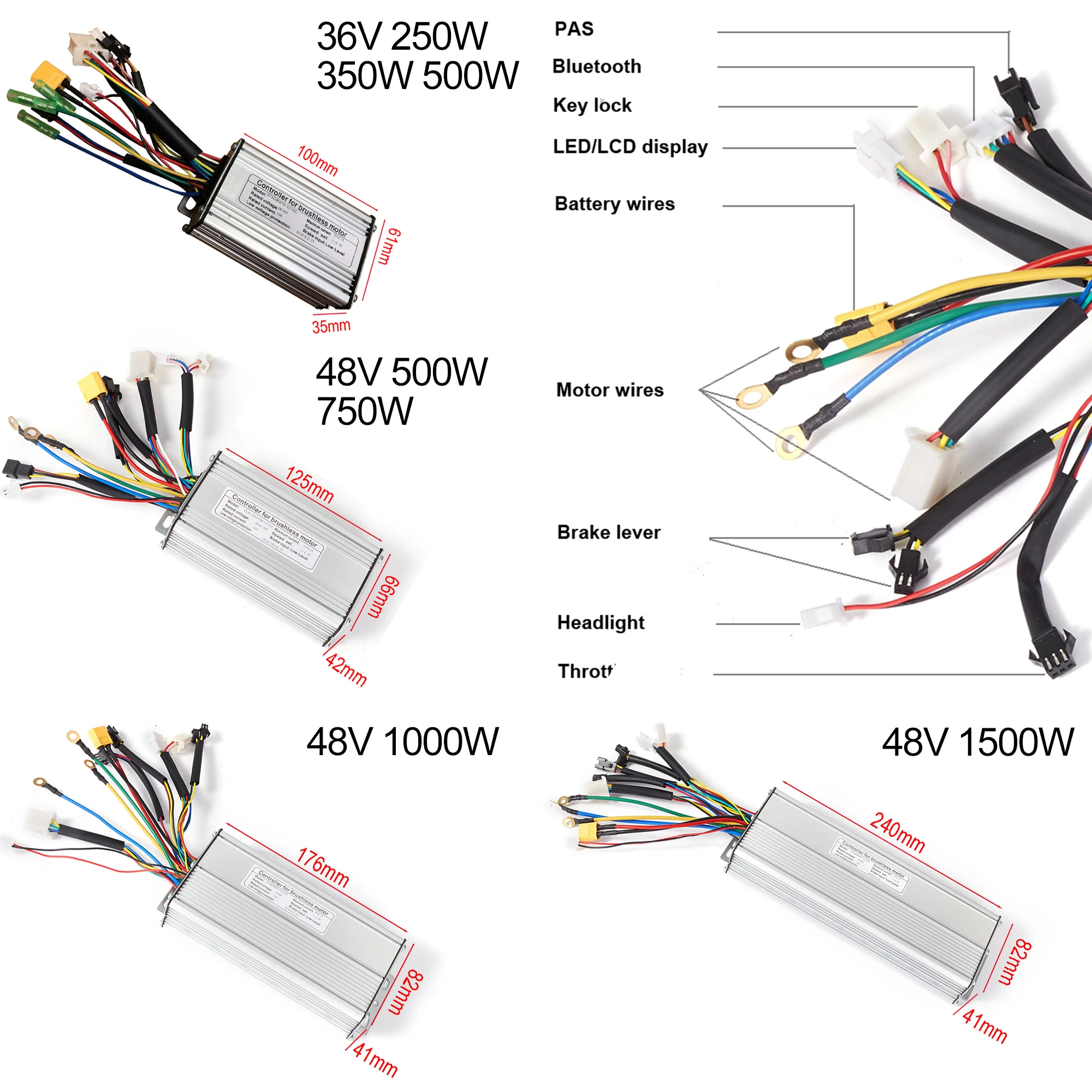

Controller
KT 6 mosfet controller
Fit for: 36V 250W/350W/500W
Rated current: 10A ,Max current: 20±1A
Size: 100*61*35mm
KT 9 mosfet controller
Fit for: 48V 500W/750W
Rated current: 12A , Max current: 25±1A
Size: 125*66*42mm
KT 12 mosfet controller
Fit for: 48V 1000W
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm
KT 18 mosfet controller
Fit for: 48V 1500W
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm
Item Show:
