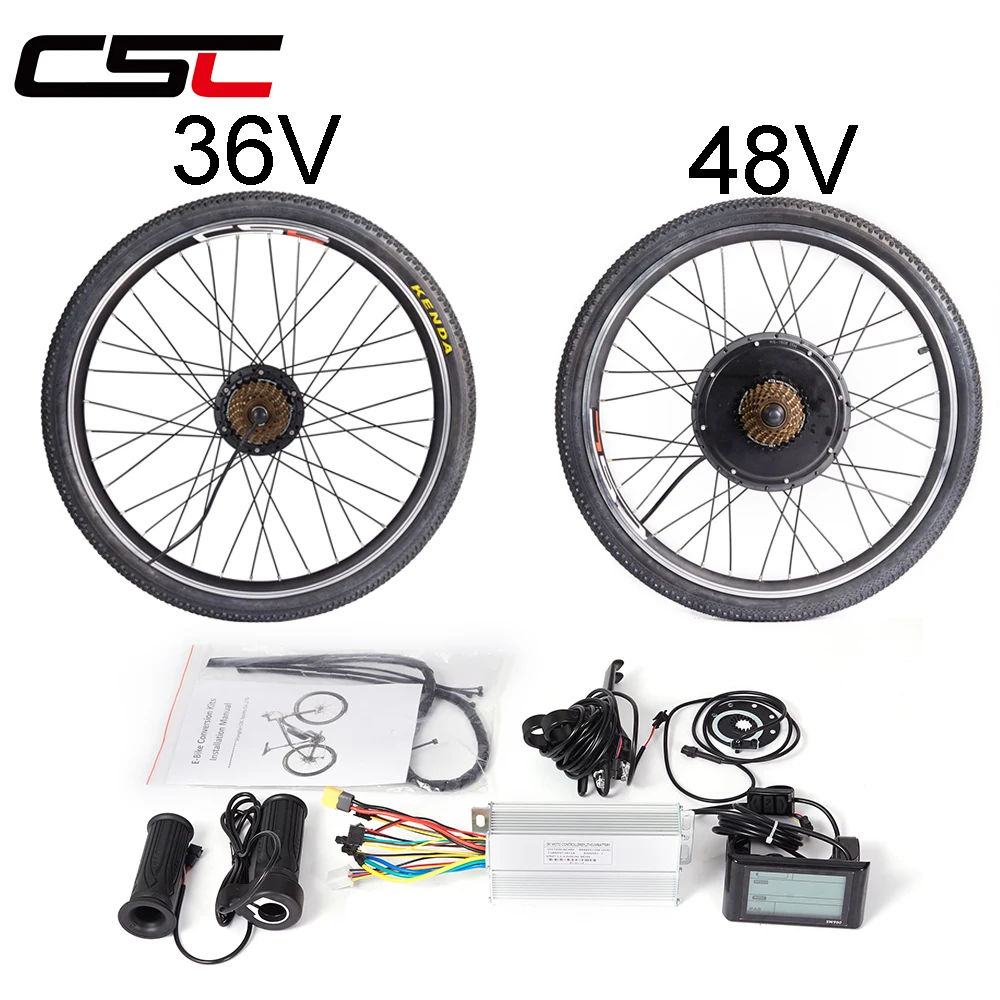

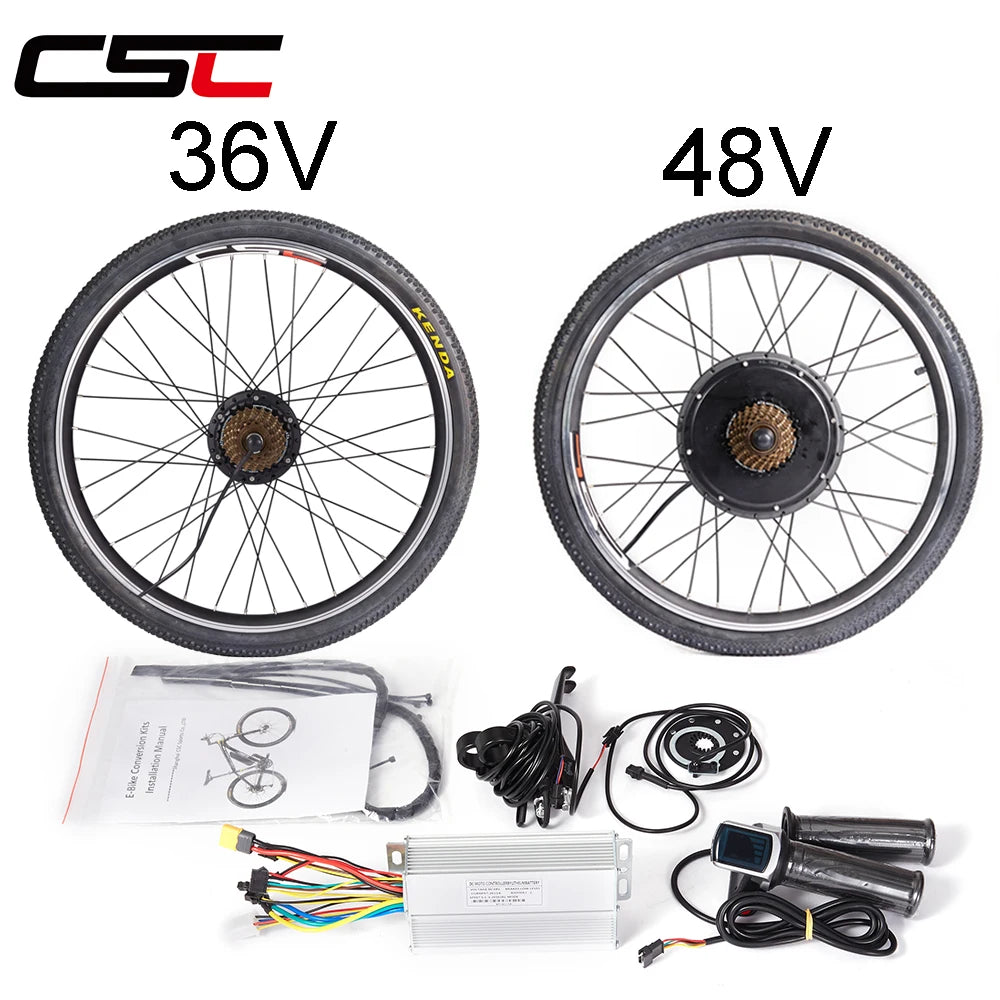

CSC EBike Conversion Kit 36V 250W 350W Electric Bicycle 48V 1000W 1500W Bike Wheel Hub Motor 20in 24in 26in 27.5in 29in 700C
CSC EBike Conversion Kit 36V 250W 350W Electric Bicycle 48V 1000W 1500W Bike Wheel Hub Motor 20in 24in 26in 27.5in 29in 700C
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: CSC
Design: Brushless
Hign-concerned Chemical: None
Installation location: front drive rear drive
Motor: Brushless Non-gear Hub Motor
Motor shaft diameter: M12 (12MM*10MM),M14 (14MM*10MM),
Mounting Position: Rear Drive
Note: Check the dimensions stamped on the tire before ordering
Origin: Mainland China
Size: 20 inch
Suitable tire size: 20inch 24inch 26inch 27.5inch 28inch 29inch 700C
Voltage: 48V,36V
Wattage: 201 - 300w,250W 350W 500W 750W 1000W 1500W
motor: Brushless Gear Motor
Packing List
Noted:Conversion Kit not include Battery, ( If you need a Battery,Please contact us for an additional fee )
Choost the "SW900" option Packing List
1 * Motor wheel
1 * Tire
1 * 7 speed Thread Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle
Choost the "Throttle with LED" option Packing List
1 * motor wheel
1 * Tire
1 * 7 speed Thread Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle with LED
Motor Wheel
1. Maximum speed range of motor idling:
36V 250/350/500W about 20-30km/hour,
48V 500W about 45-50km/h,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:
Brushless gear Hub Motor for 36V 250W 350W 500W ,48V 500W 750W
Brushless Non-gear Hub Motor for 48V 1000W 1500W

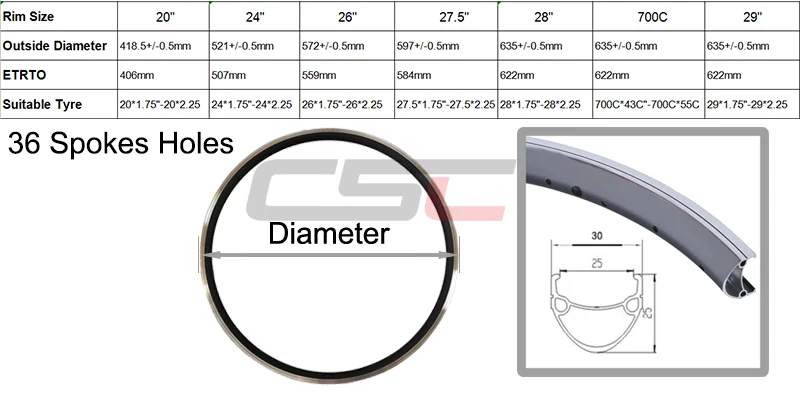

3. Rim: Double-wall Aluminium Alloy Rim
inner width 25mm,External width 30mm

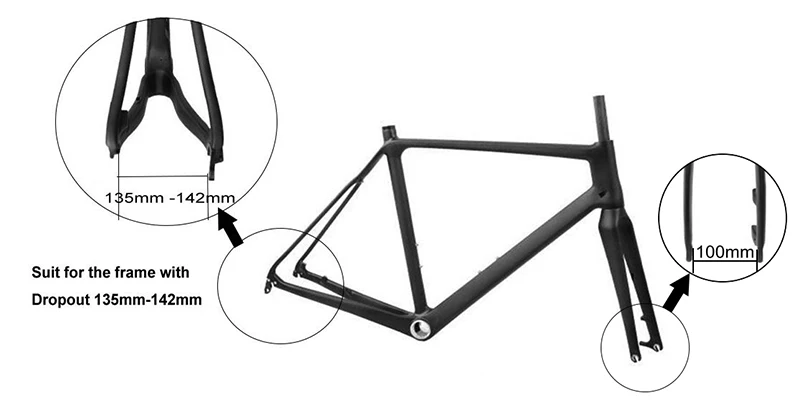

4. Motor dropout：
Front wheel: 100mm

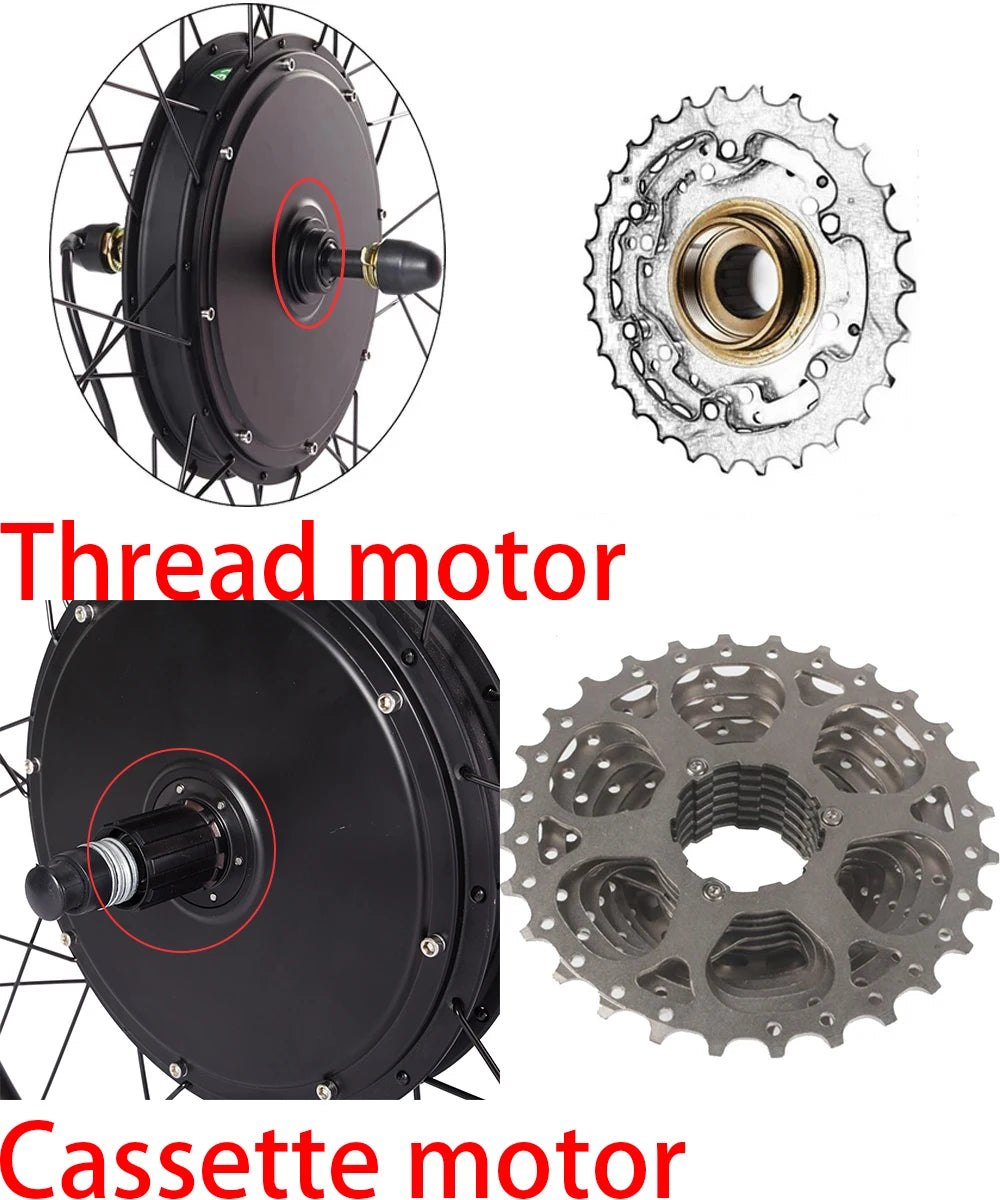

Threaded rear wheel: 135mm
Cassette rear wheel: 138mm
5. Torque:
35NM for 36v 250W 350W
40NM for 36V 500W 48V 500W ,
55NM for 1000W
60NM for 1500W
6. RPM:
320 for 36V 250W 350w
350 for 36V 500W
425 for 48V 500W
470 for 48V 1000W
540 for 48V 1500W

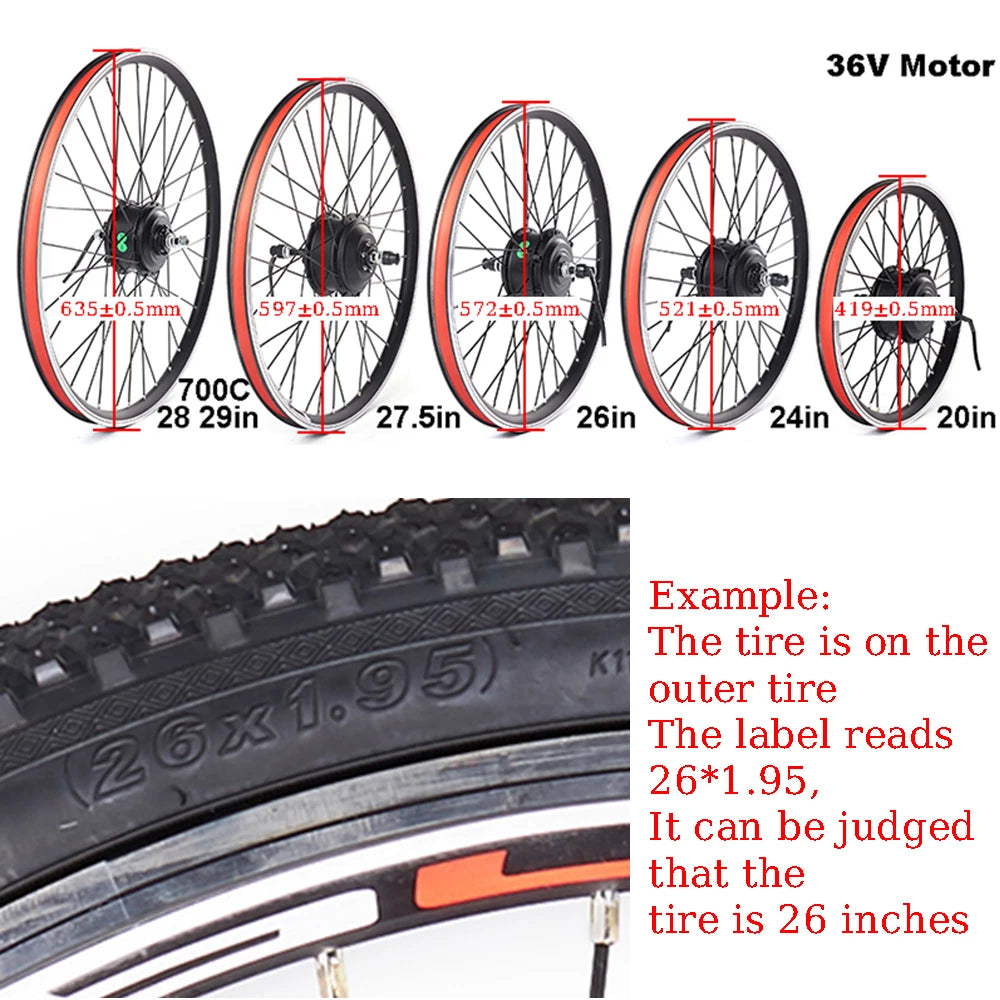

Exam

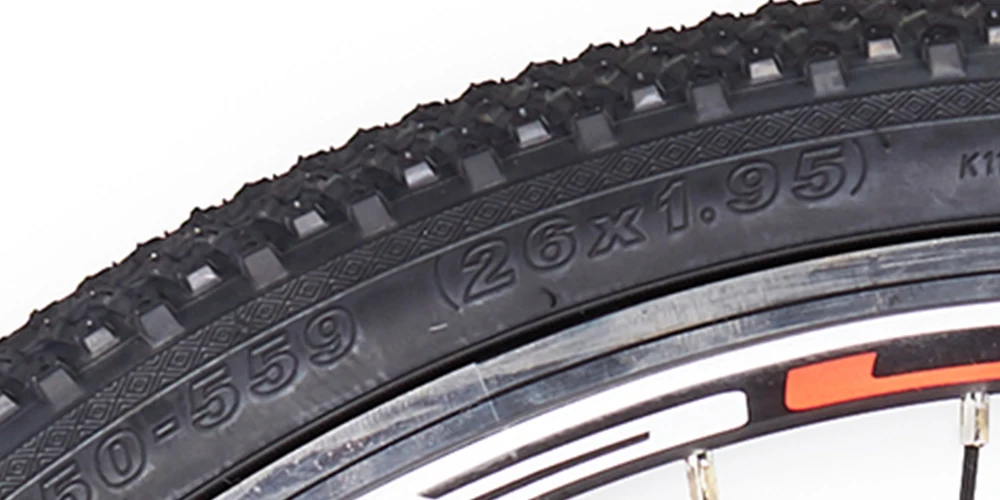

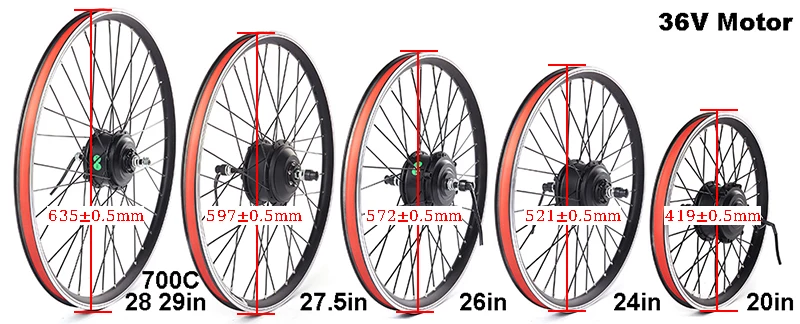

The tire is on the outer tire :The label reads 26*1.95, It can be judged that the tire is 26 inches
36V 250W 350W 500W 48V 500W 750W Motor CSC Rim

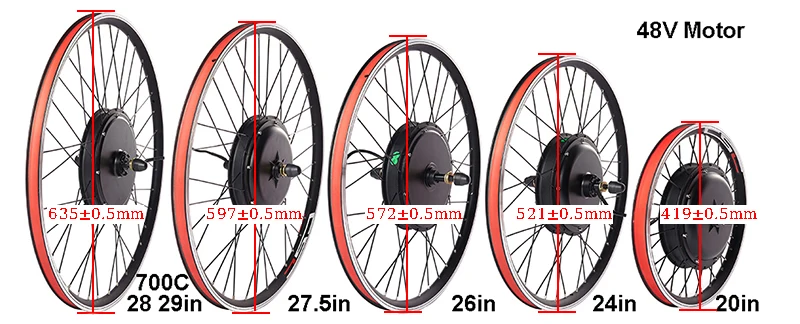

48V 1000W 1500W Motor CSC Rim
Display

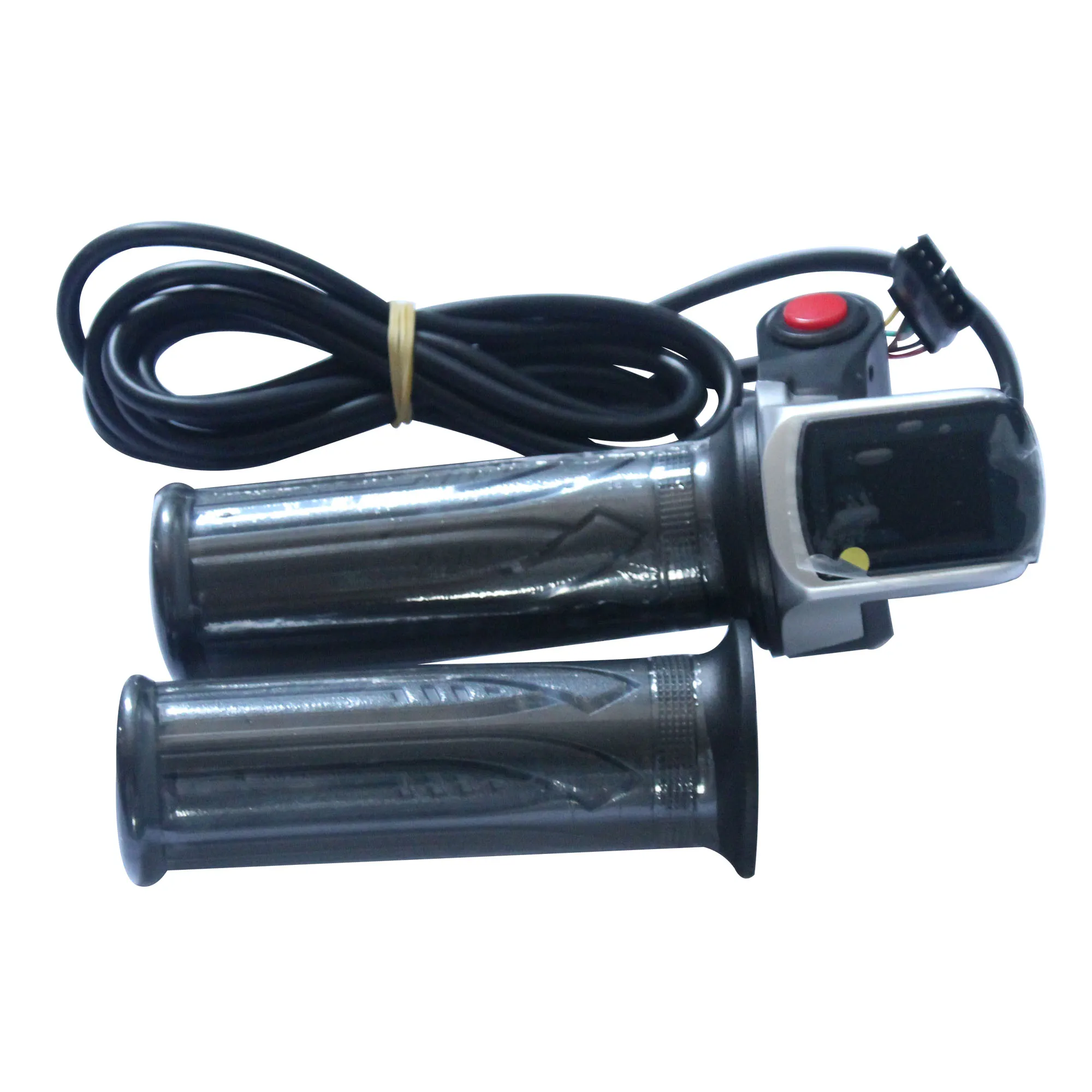

Throttle with LED
The LED display only shows the battery level

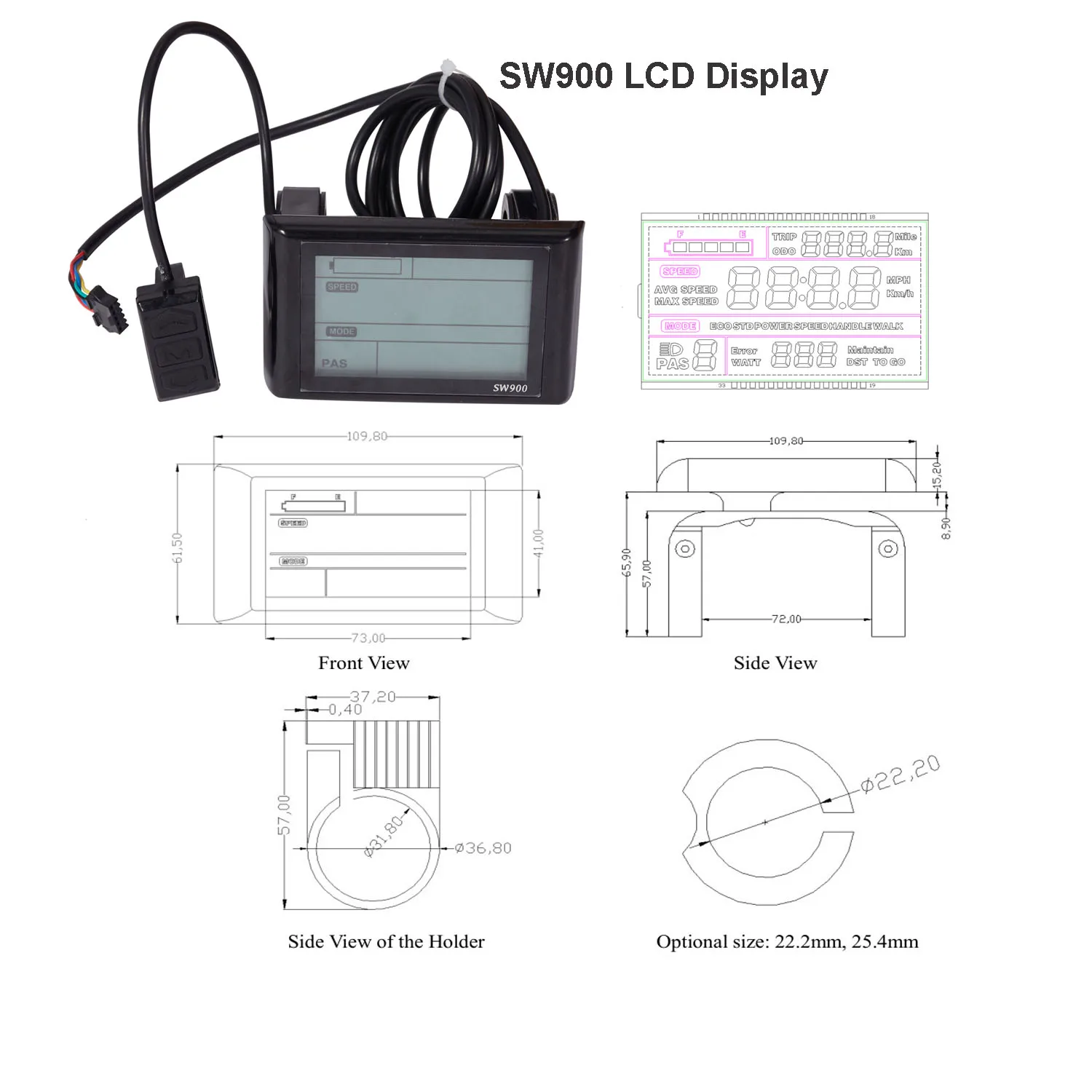

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

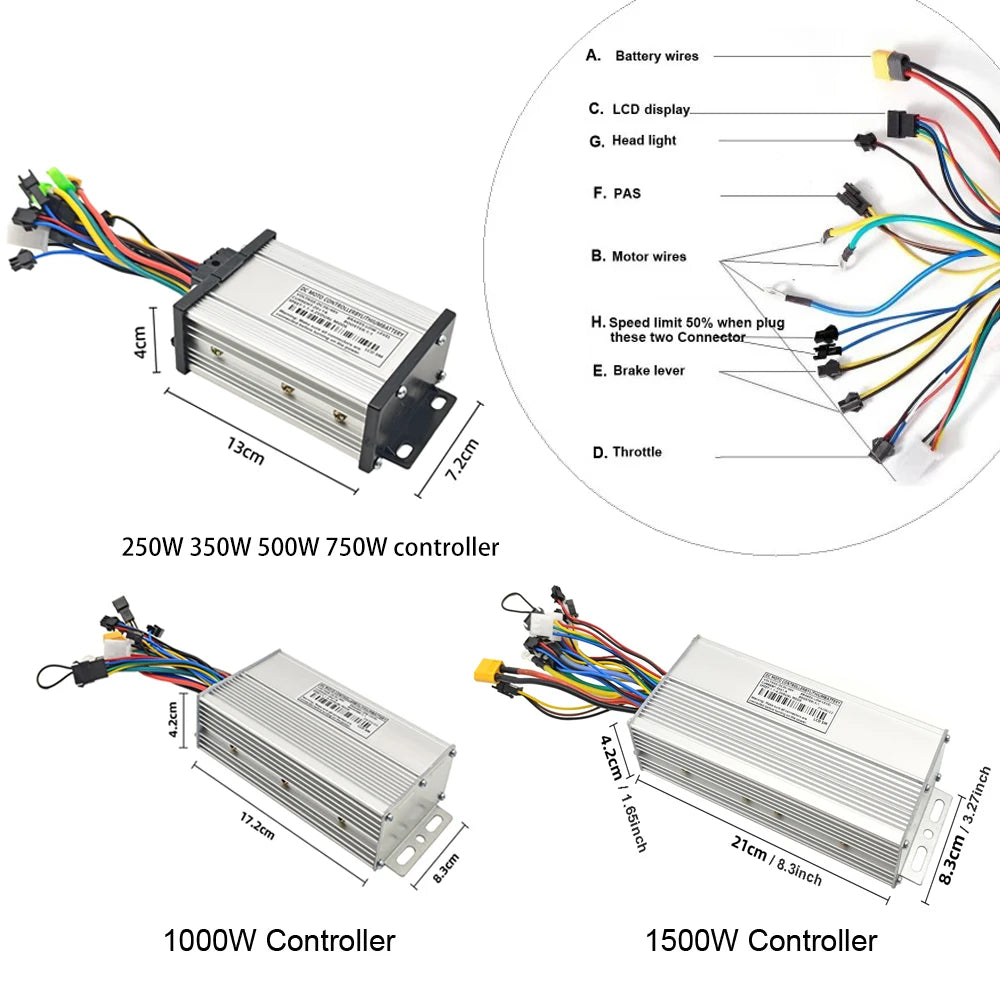

Controller
CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 130*72*40mm
Fit for: 48V 500W 750W motor wheel ，SW900 Display
Rated current: 20A ,Max current: 30±1A
Size: 130*72*40mm
CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 172*83*42mm
CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 210*83*42mm

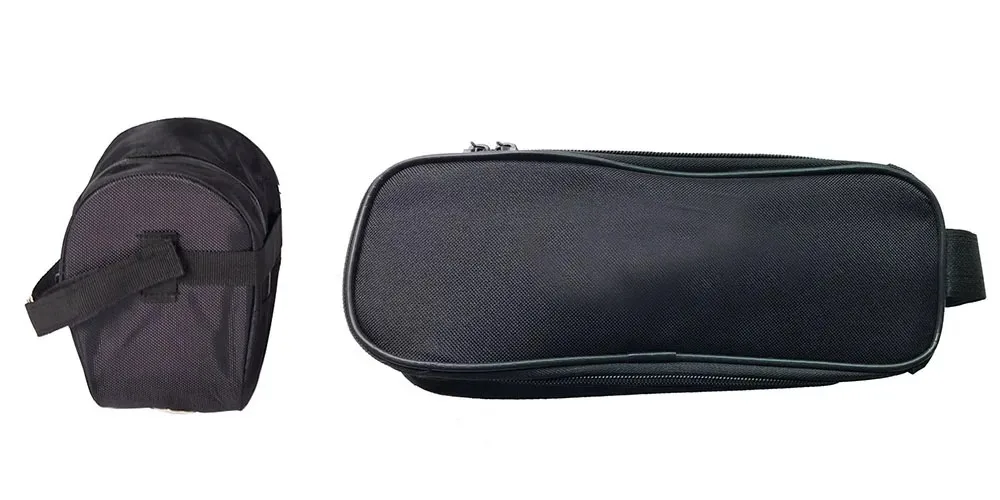

Controller Bag

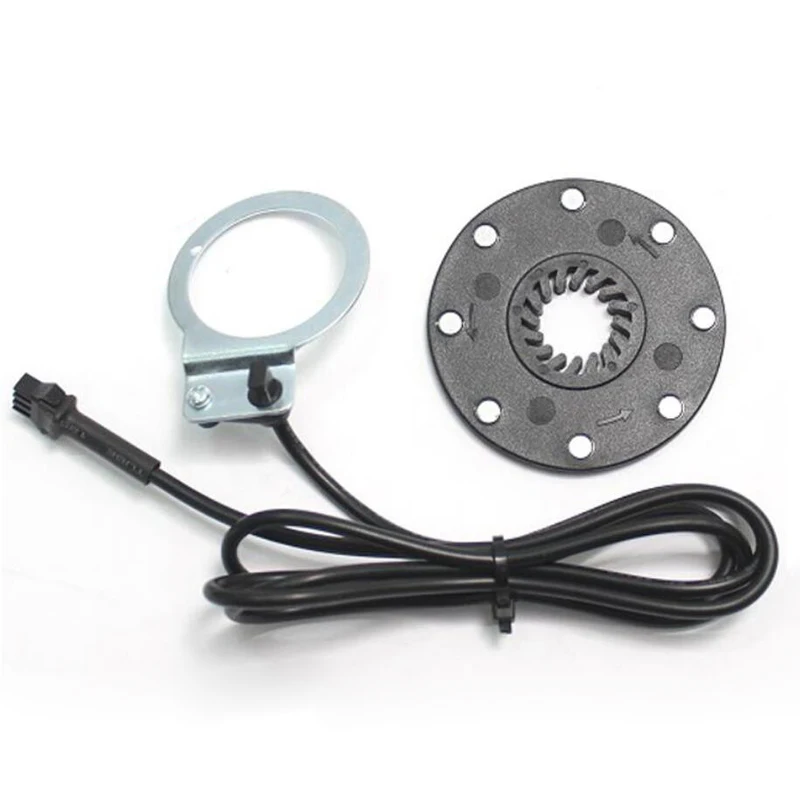

PAS
KT BZ-4(8) Magnet
Throttle

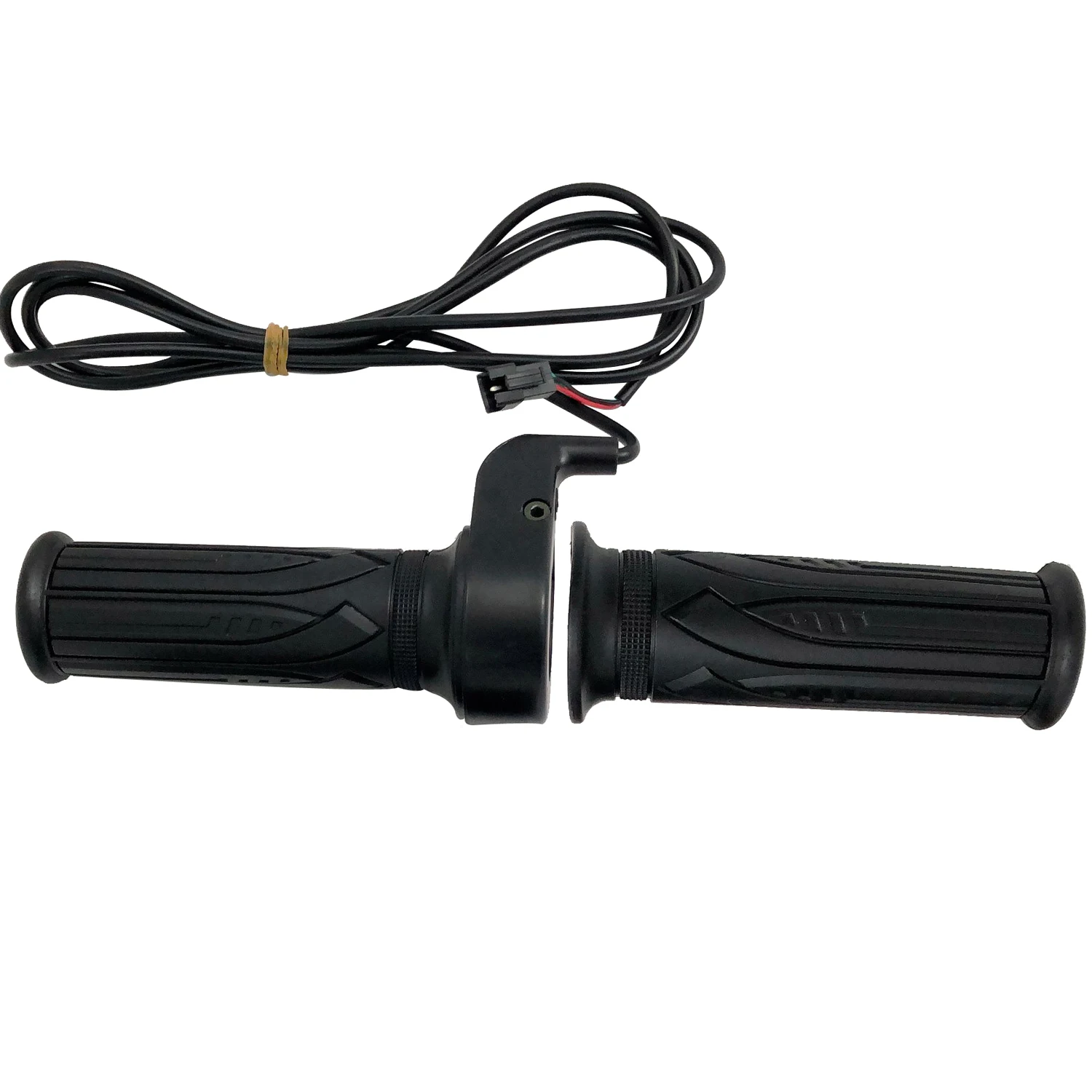

Twist Throttle

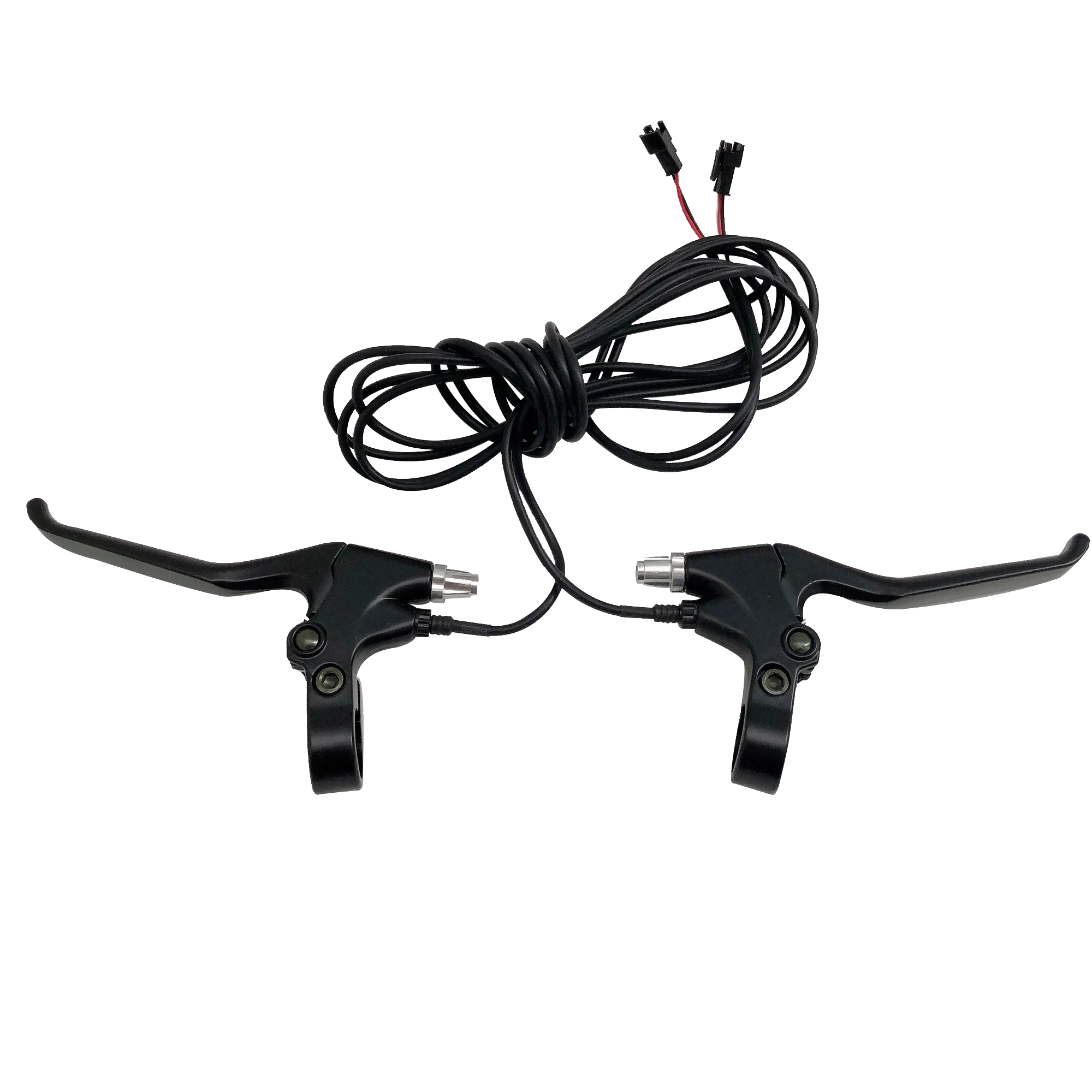

Power cut-off brake leaver
Twist Throttle
