SPECIFICATIONS

2000w: brushless gearless

350 500w: brushless geared

48V20/24ah Ah Hailong battery: with 30A BMS

Brake Lever: Wuxing BrandCable:40cm

Brand Name: Jueshuai

Design: Brushless

Motor: Brushless Gear Hub Motor,48v 350 500w 2000w powerful motor

Motor Type: Brushless Gear Hub Motor

Mounting Position: Rear Drive

PAS: right installation

Size: 26inch

Throttle: Wuxing Cable:40cm

Voltage: 48V

Waterproof Connection cable: 180cm

Wattage: > 1000w

battery: lithium battery

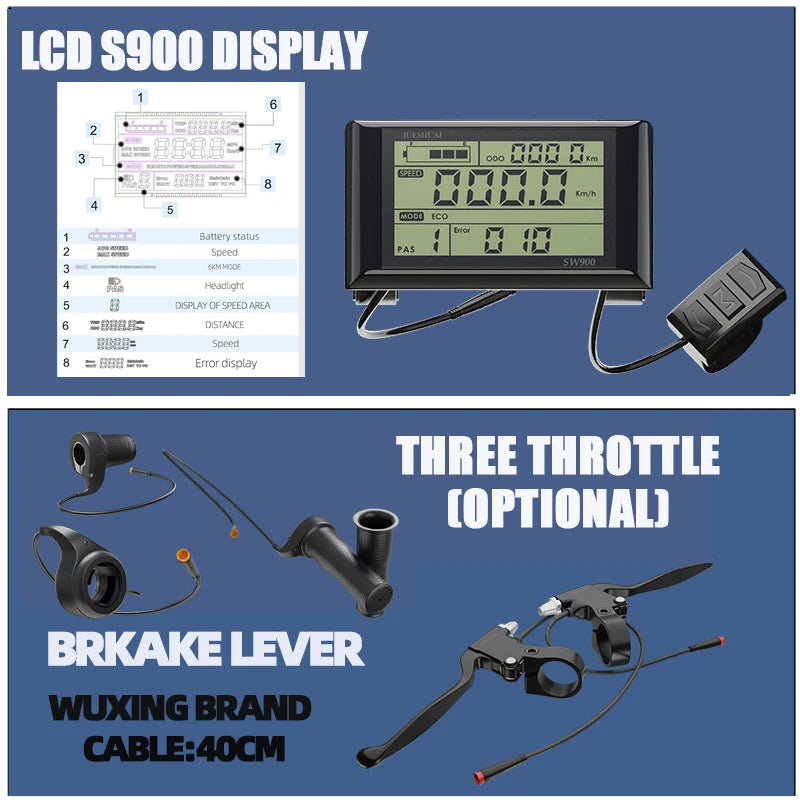

lcd display: S900 display

max speed: 45-60km/h

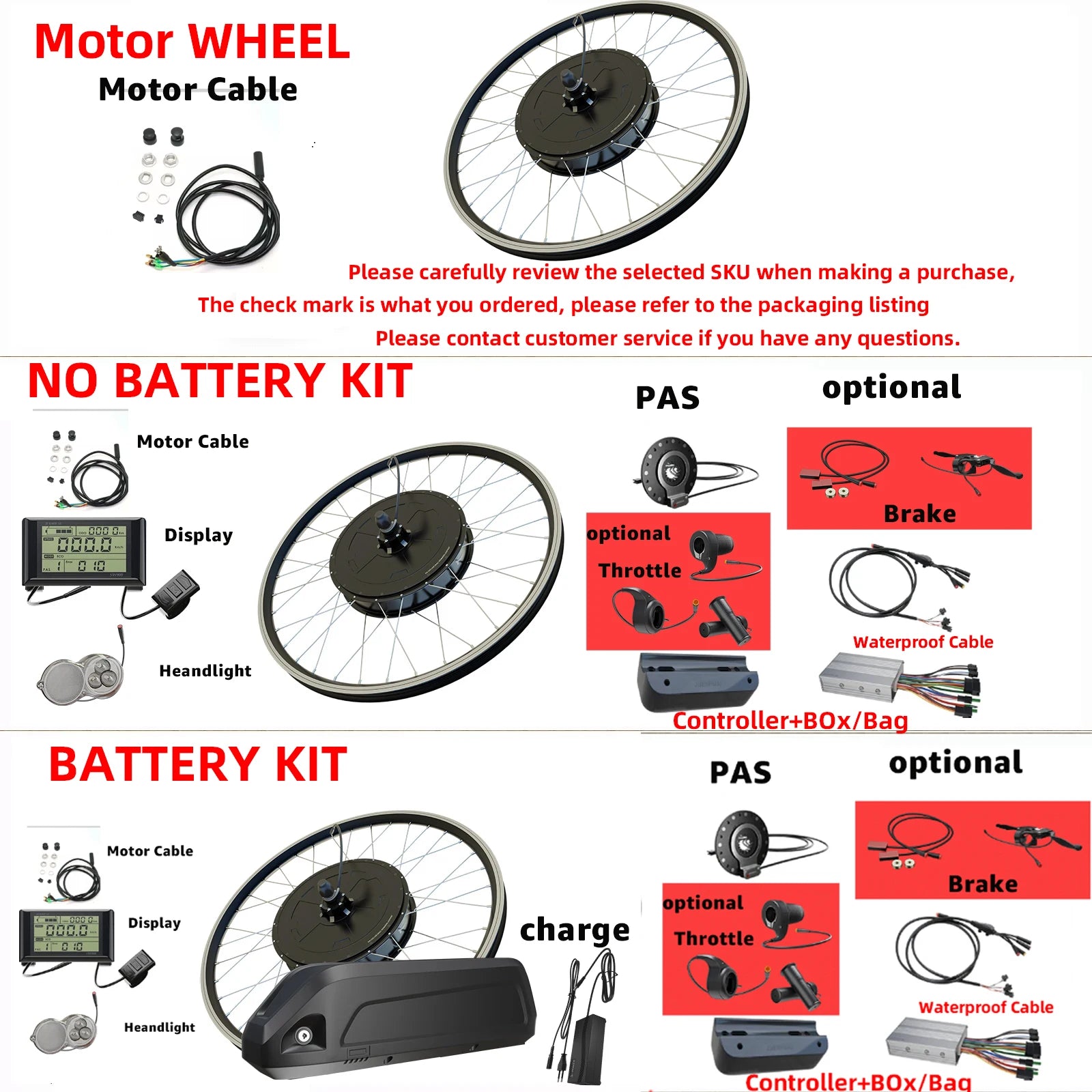

PACKAGE LISTING

MODEL1:without battery
1x 48V 500wfront/rear/2000W Rear Wheel Hub Motor

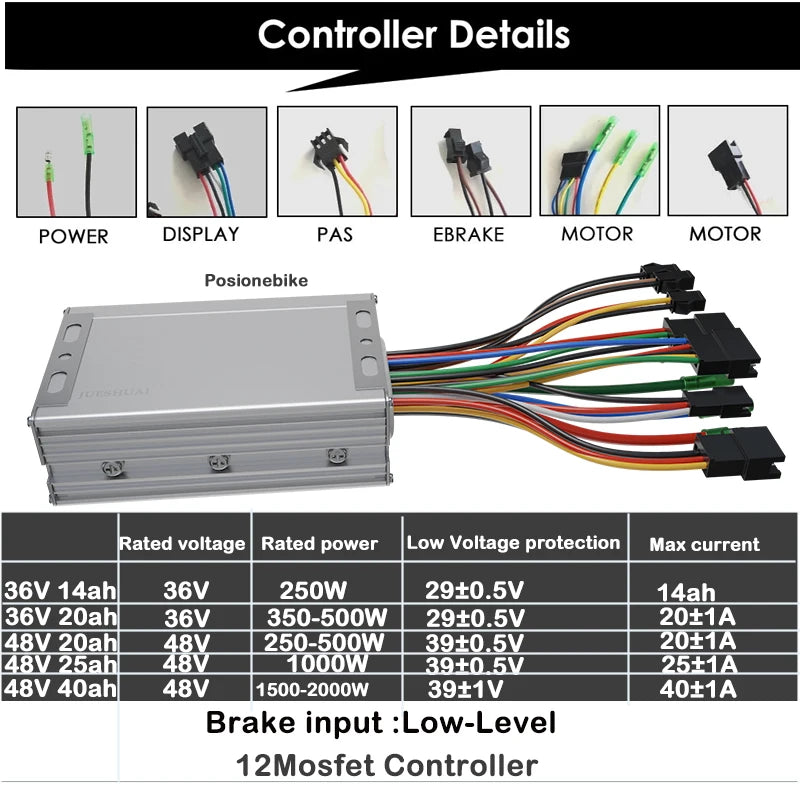

1x Electric Controller
1x Controller Box
2x Brake lever
1x Thumb/ Full Twist / Half Twist
1x LCDSW900 Display
1x Pedal Assist Sensor
1x Headlight
1x Waterproof Main Cable
1x Cable Tie
1x Manual

MODEL2:with Battery

1x 48V 1500/2000W Rear Wheel Hub Motor
1x Electric Controller
1x Controller Box
2x Brake lever
1x Thumb/ Full Twist / Half Twist
1x LCDSW900 Display
1x Pedal Assist Sensor
1x Headlight
1x Waterproof Main Cable
1x Cable Tie
1x Manual

1xHailon battery + charge

Motor Specification :

48V 1500W about 45-55km/h,



48V 2000W about 50-60km/h,



(different wheel size, road&weather condition and rider's weight will have different speed)

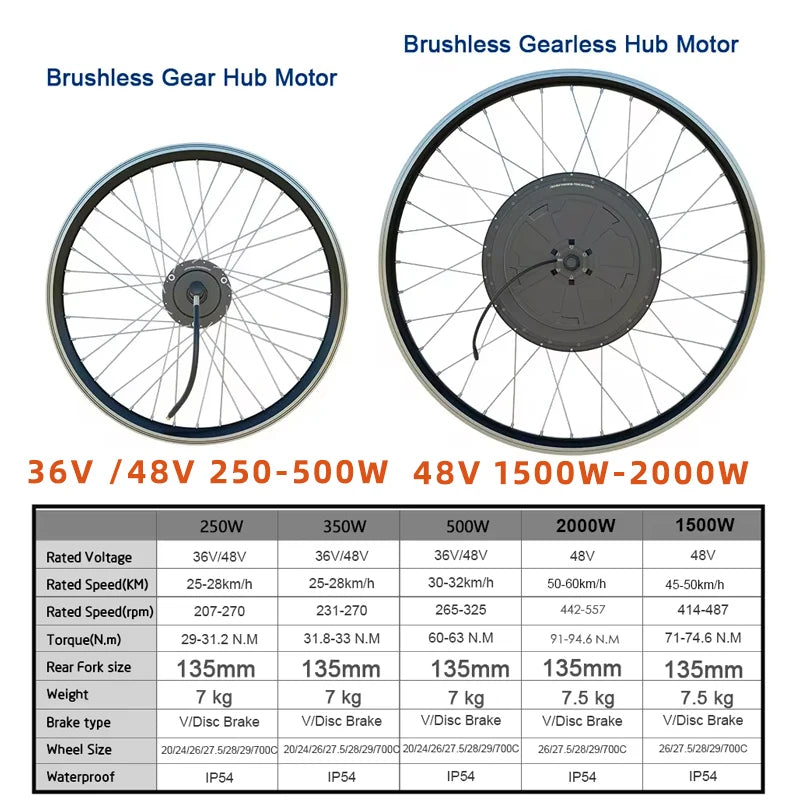

2. Hub Motor:Brushless gear Hub Motor for 36V/48V 250/350/500W



Brushless Non-gear Hub Motor for 48V 1000W/2000W



3. Rim: Double-wall Aluminium Alloy Rim



4. Wheel Bottom bracket: Front 100-105mm, Rear 135mm.



5. Torque: 30/33/45 for 250W 350W 500W



55-59NM for 1500W



63-65NM for 2000W



6. RPM:320/320/350 for 250W/350W/500W



433 for 48V 1500W



487 for 48V 2000W



7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

Full Speed: 36V/48V 250/350/500W about 25-40km/h

About Motor :

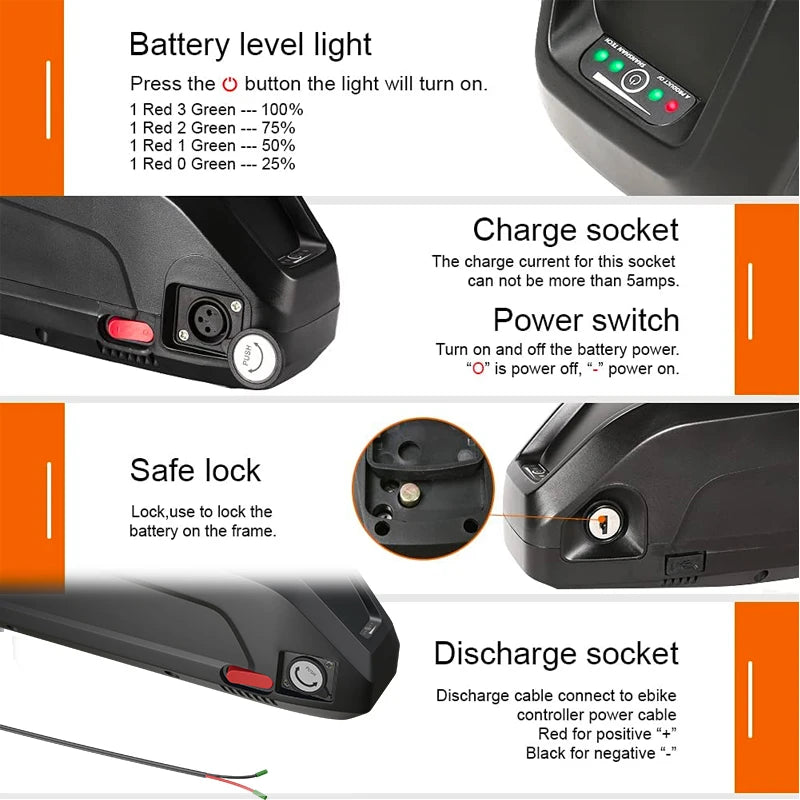

About Battery :

48V 13 AH HAILONG BATTERY

Hailong 48V20AH

Normal Volts 48V

Rated capacity 13AH

Built-in battery 2000mah

Array Mode | 13s5P

Constant discharge current 20A

Peak current | 40A

Charging voltage 54V

Discharge cut-off voltage 36V

Charging method CC/CV

Cycle life 1000 hours

Charging temperature: 15-65 degrees below zero

Discharge temperature: 15-65 degrees below zero

Protection function overcharge, over-discharge, over current, short circuit, balance

48V 20 AH HAILONG BATTERY

Hailong 48V20AH

Normal Volts 48V

Rated capacity 20AH

Built-in battery 2500mah

Array Mode | 13s8P

Constant discharge current 20A

Peak current | 40A

Charging voltage 54V

Discharge cut-off voltage 36V

Charging method CC/CV

Cycle life 1000 hours

Charging temperature: 15-65 degrees below zero

Discharge temperature: 15-65 degrees below zero

Protection function overcharge, over-discharge, over current, short circuit, balance

48V 24 AH HAILONG BATTERY

Hailong 48V24AH

Normal Volts 48V

Rated capacity 20AH

Built-in battery 5000mah

Array Mode | 13s8P

Constant discharge current 20A

Peak current | 40A

Charging voltage 54V

Discharge cut-off voltage 36V

Charging method CC/CV

Cycle life 1000 hours

Charging temperature: 15-65 degrees below zero

Discharge temperature: 15-65 degrees below zero

Protection function overcharge, over-discharge, over current, short circuit, balance
